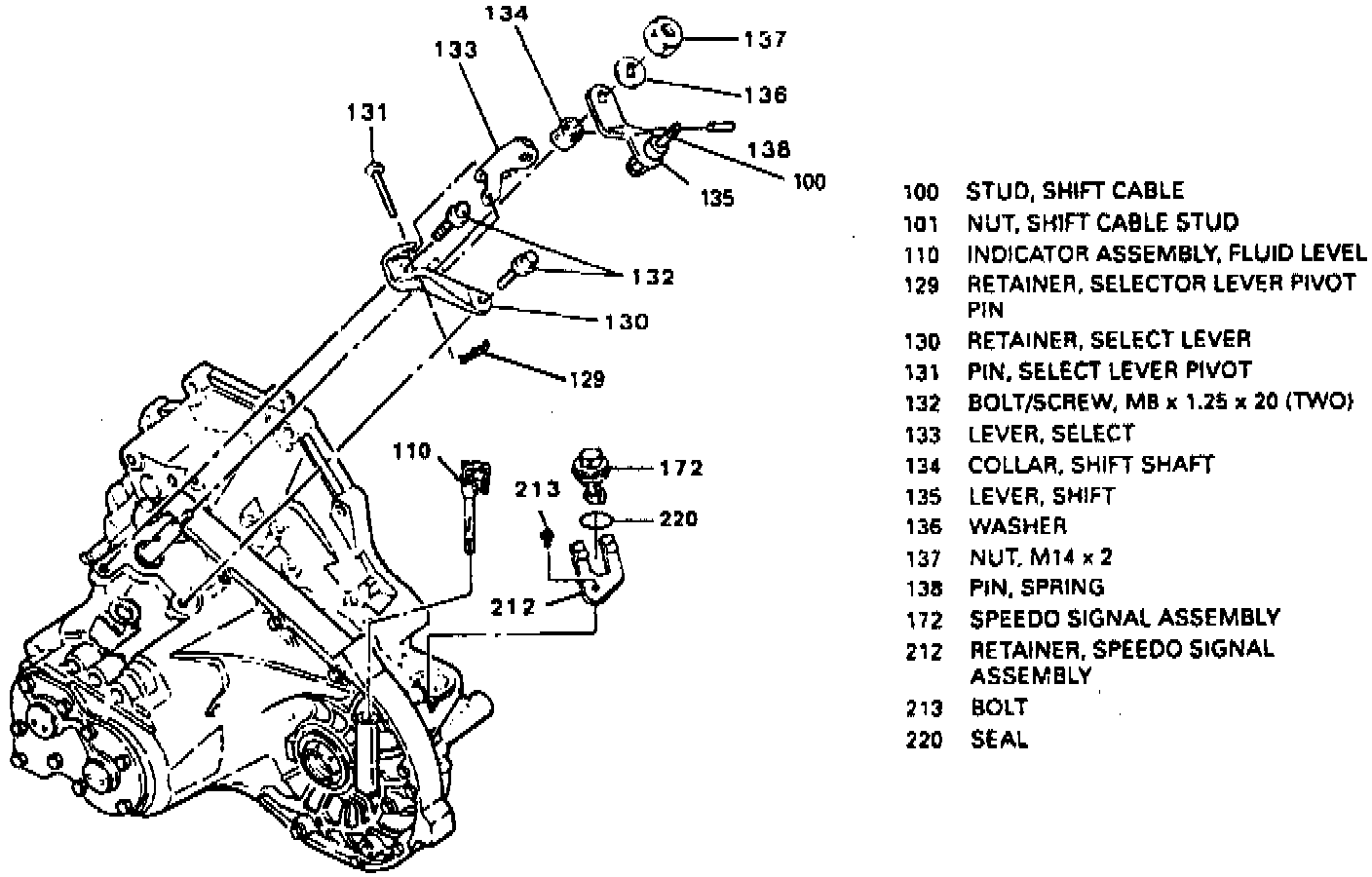

External Transaxle Mounted Linkage

1. Remove nut (137). Do not allow lever (135) to move during removal of nut. Use a 3/8 inch drive to hold external shift lever by slot.

2. Remove washer (136), lever (135) and retainer (129).

3. Remove pivot pin (131) and pivot (133).

4. Remove pin (138), collar (134), attaching bolts (132) and retainer (130).

5. Remove fluid level indicator assembly (110).

6. Remove electronic speedometer signal assembly (172), retainer (212) and attaching bolt (213).
