Fastener Tightening Specifications - Intake Manifold

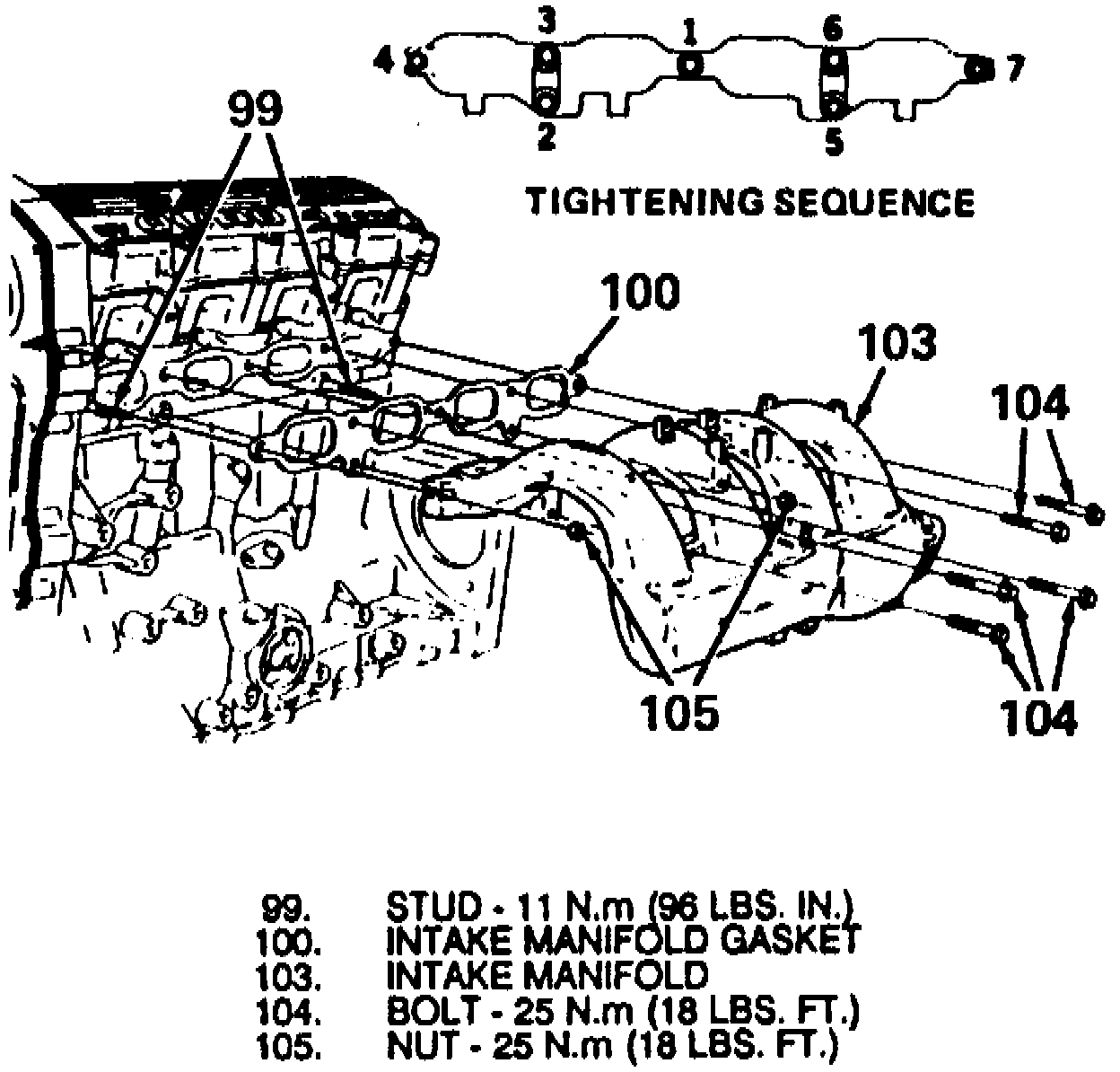

Fig. 7 Intake Manifold Installation & Bolt Tightening Sequence:
