DTC 29 (Quad Driver Module) Diagnostic Chart Revision
File in Section: 6E - Engine Fuel & EmissionBulletin No.: 41-65-34
Date: January, 1995
SERVICE MANUAL UPDATE
Subject:
Section 6E3 - Driveability and Emissions - Revised DTC 29
Models:
1994-95 Buick Skylark
1994-95 Oldsmobile Achieva
1994-95 Pontiac Grand Am
with 2.3L Engine (VINs A, D, 3 - RPOs LGO, LD2, L4O) and 4T6OE Transaxle
The following pages represent changes in the DTC 29 diagnostic chart and facing page:
�\H):

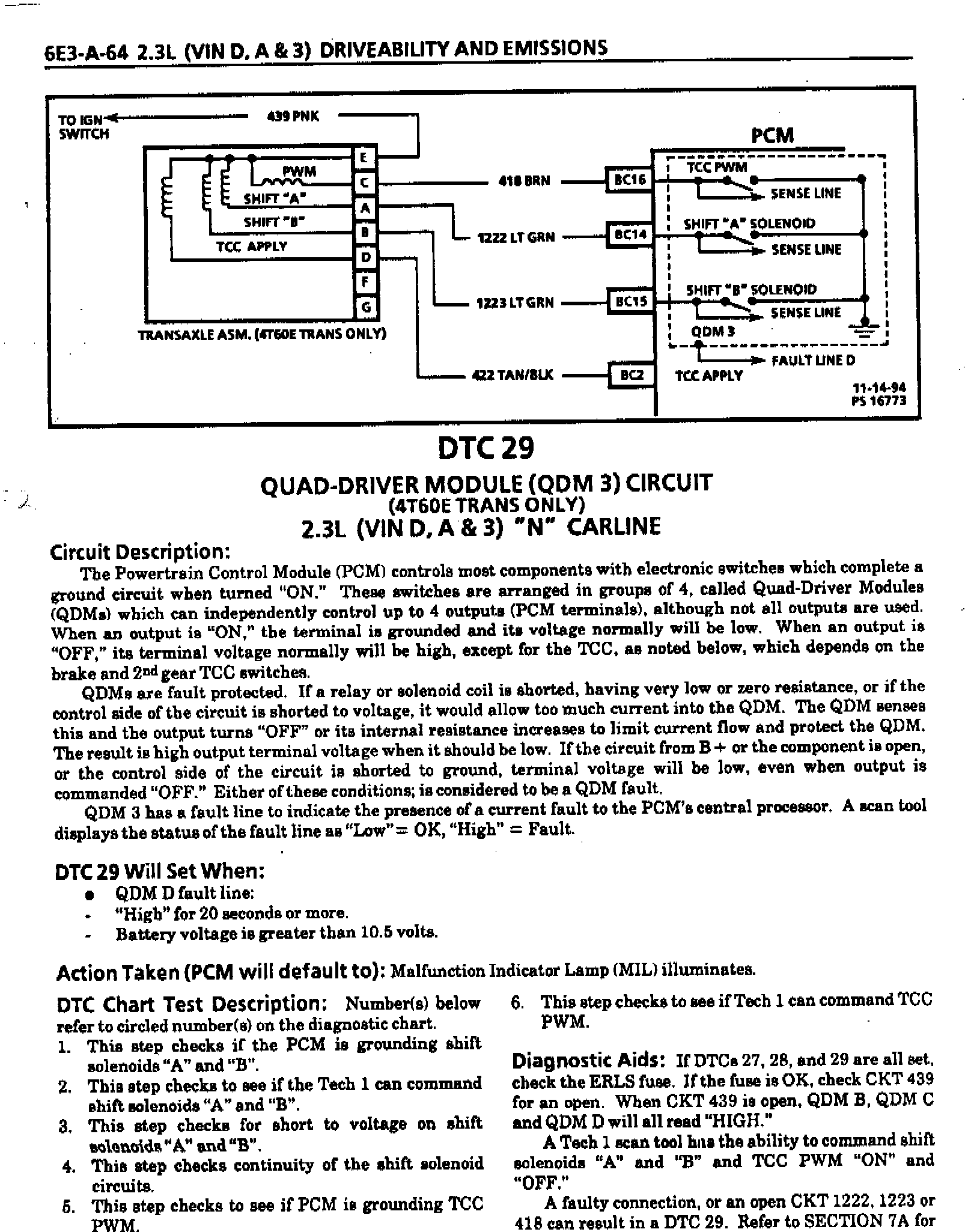

^ 6E3-A-64 DTC 29 Quad-Driver Module (QDM 3) Circuit (4T6OE Trans. Only).
��H):

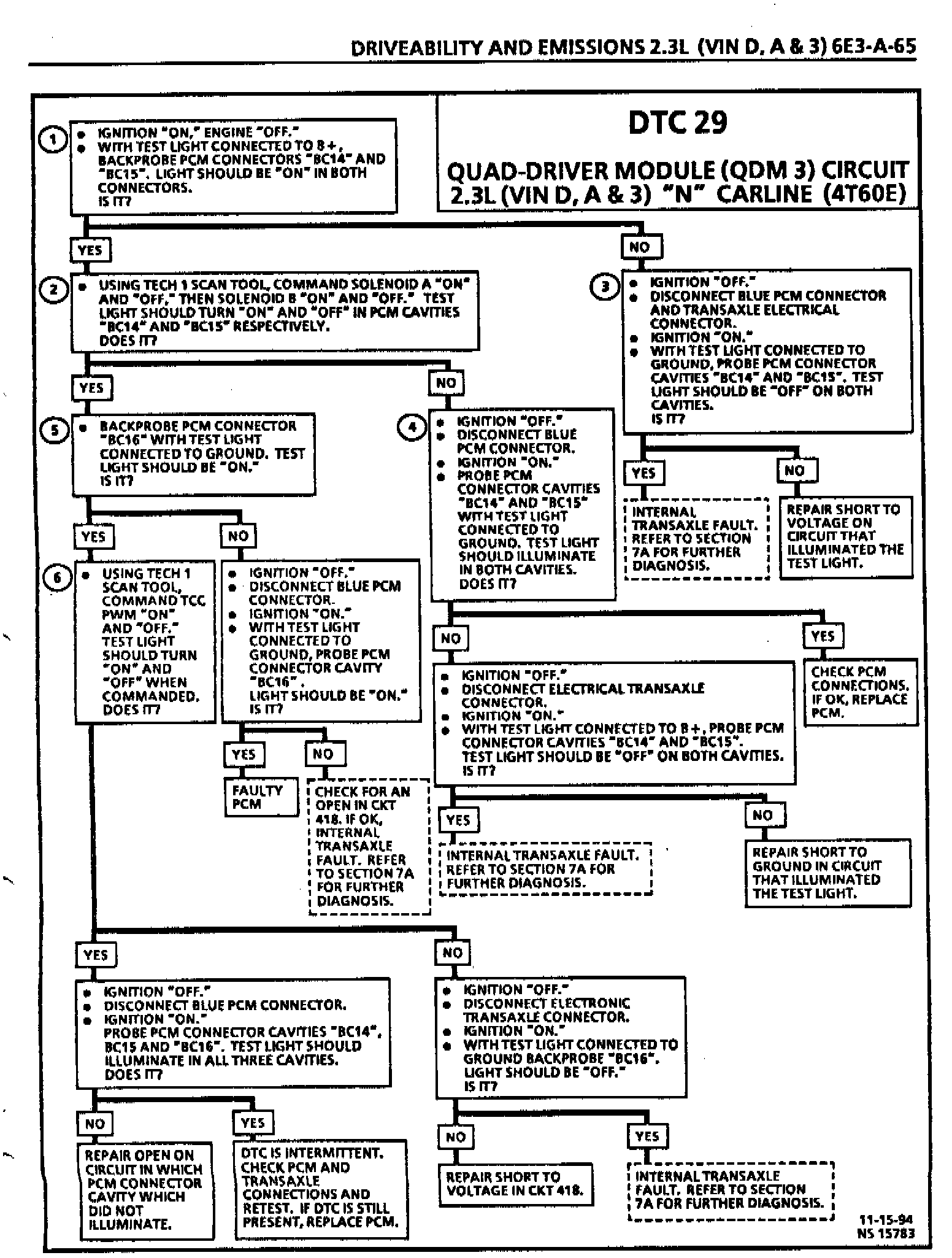

^ 6E3-A-65 DTC 29 Quad-Driver Module (QDM 3) Circuit (4T6OE Trans. Only).
