Oldsmobile
>>
1994
>>
Achieva L4-138 2.3L VIN A FI HP
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Power & Grounds
Power & Grounds

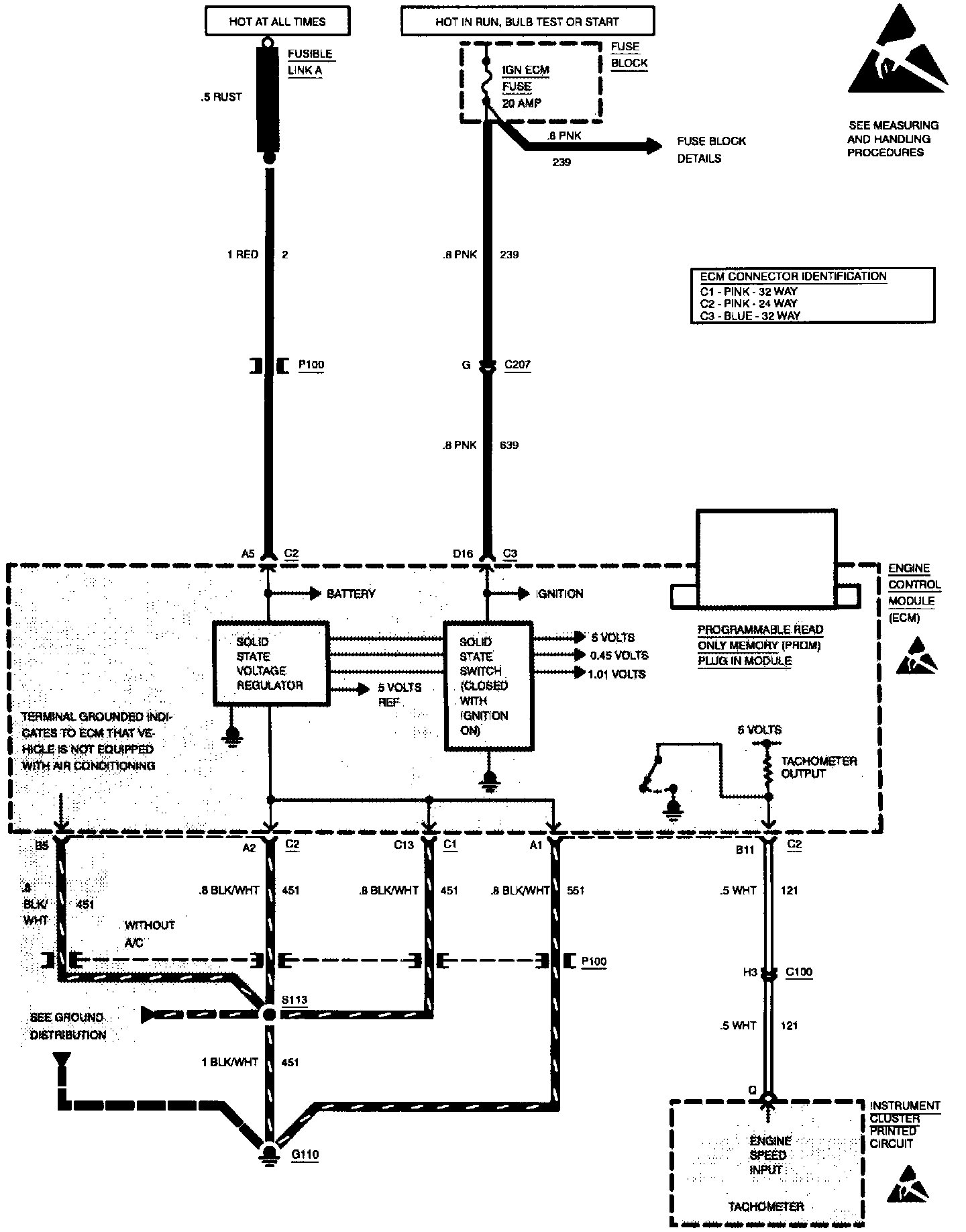

Wiring Diagrams: Power And Grounds:
