HDLP Circuit Breaker, Alarm Fuse and PWR ACC Circuit Breaker
HDLP Circuit Breaker, Alarm Fuse and PWR ACC Circuit Breaker

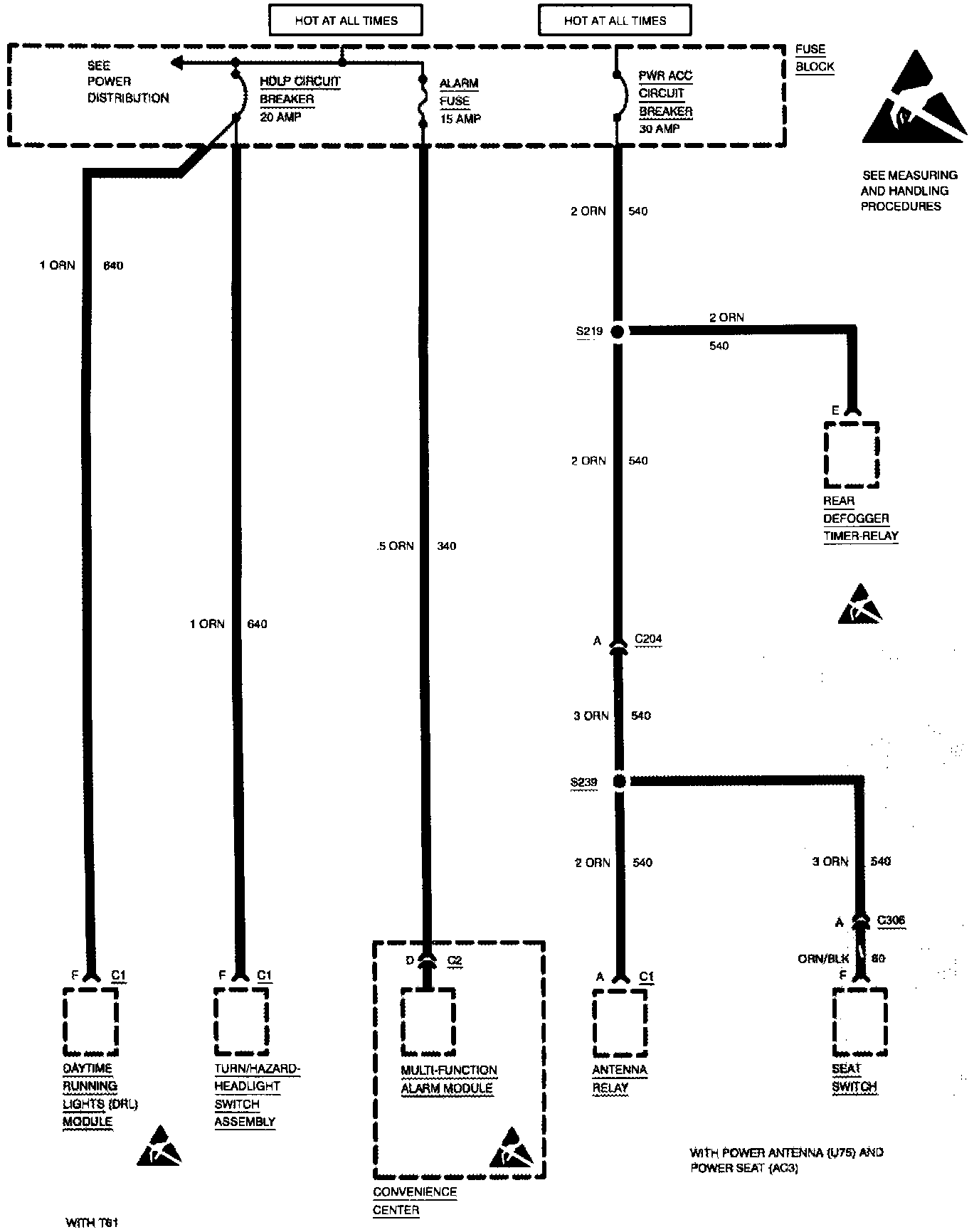

Wiring Diagram: Fuse Block Details, HDLP Circuit Breaker, Alarm Fuse And PWR ACC Circuit Breaker:
