Front Hub and Bearing

Front Hub and Bearing Assembly

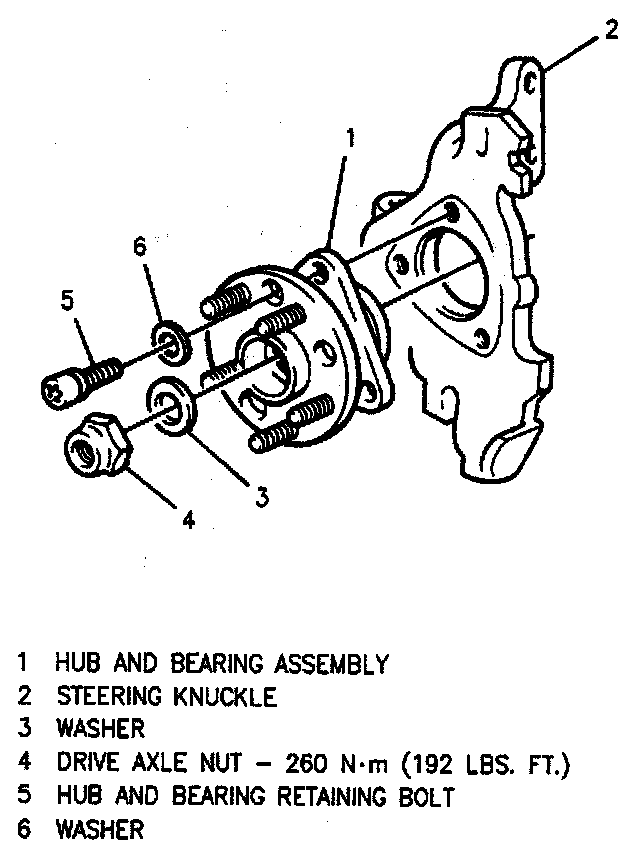

Figure 9:

Remove or Disconnect

Tools Required:
J 28733-A Front Hub Spindle Remover.

1. Drive axle.
2. Brake caliper bolts, and support caliper.
3. Rotor.
4. Hub and bearing assembly.
5. Hub and bearing assembly from steering knuckle.

Install or Connect

1. Clean hub from rust and debris.
2. Hub and bearing assembly to steering knuckle. Tighten hub and bearing assembly bolts to 95 Nm (70 lb ft).
3. Hub and bearing assembly bolts.
4. Rotor.
5. Brake caliper and bolts.
6. Drive axle.
7. Check from wheel alignment.
