Service Port HVAC: Locations

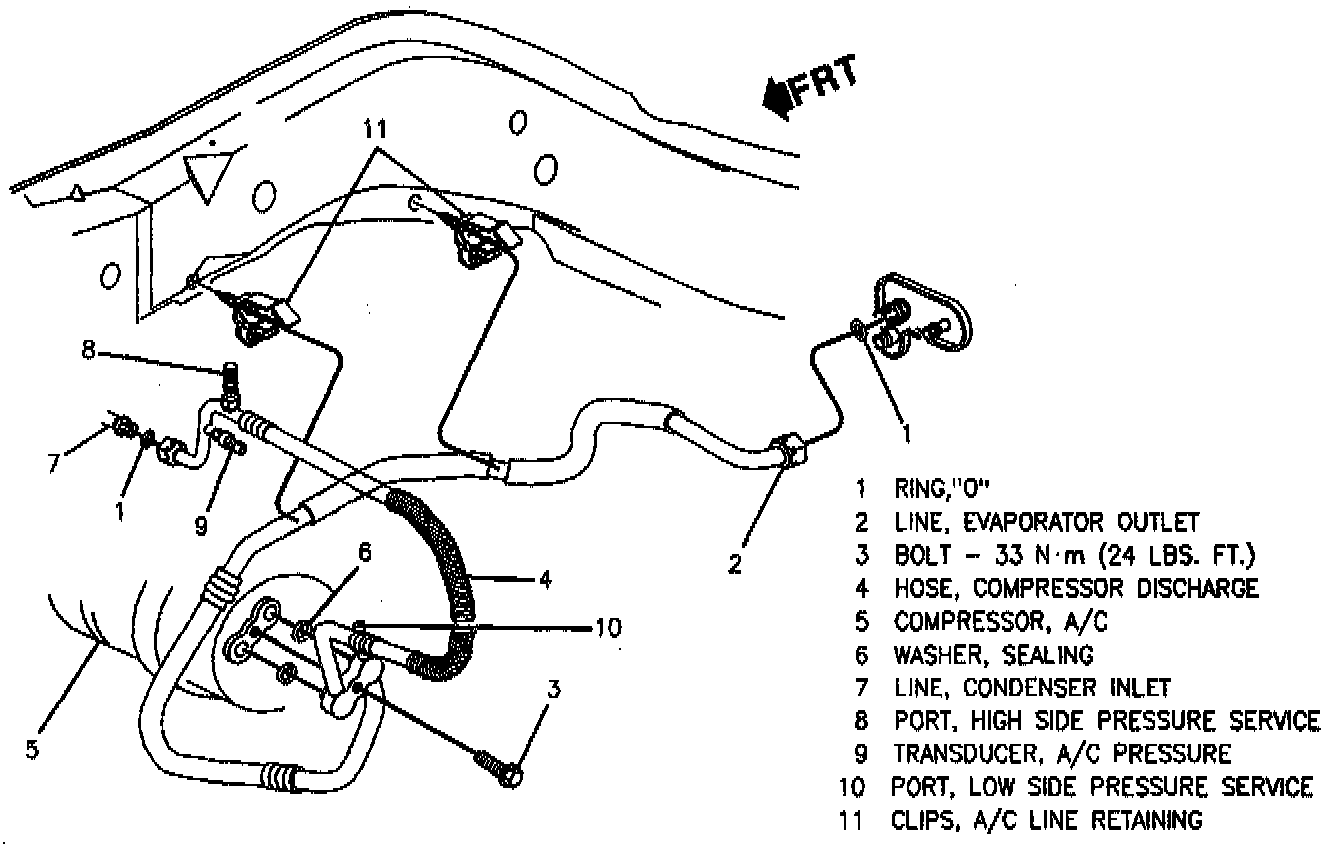

A/C Hose Routing And Service Port Locations - 2.3L:




Lines are connected between Condenser, Evaporator, and Compressor.
