Oldsmobile
>>
1994
>>
Achieva L4-138 2.3L VIN A FI HP
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
4 Door
4 Door

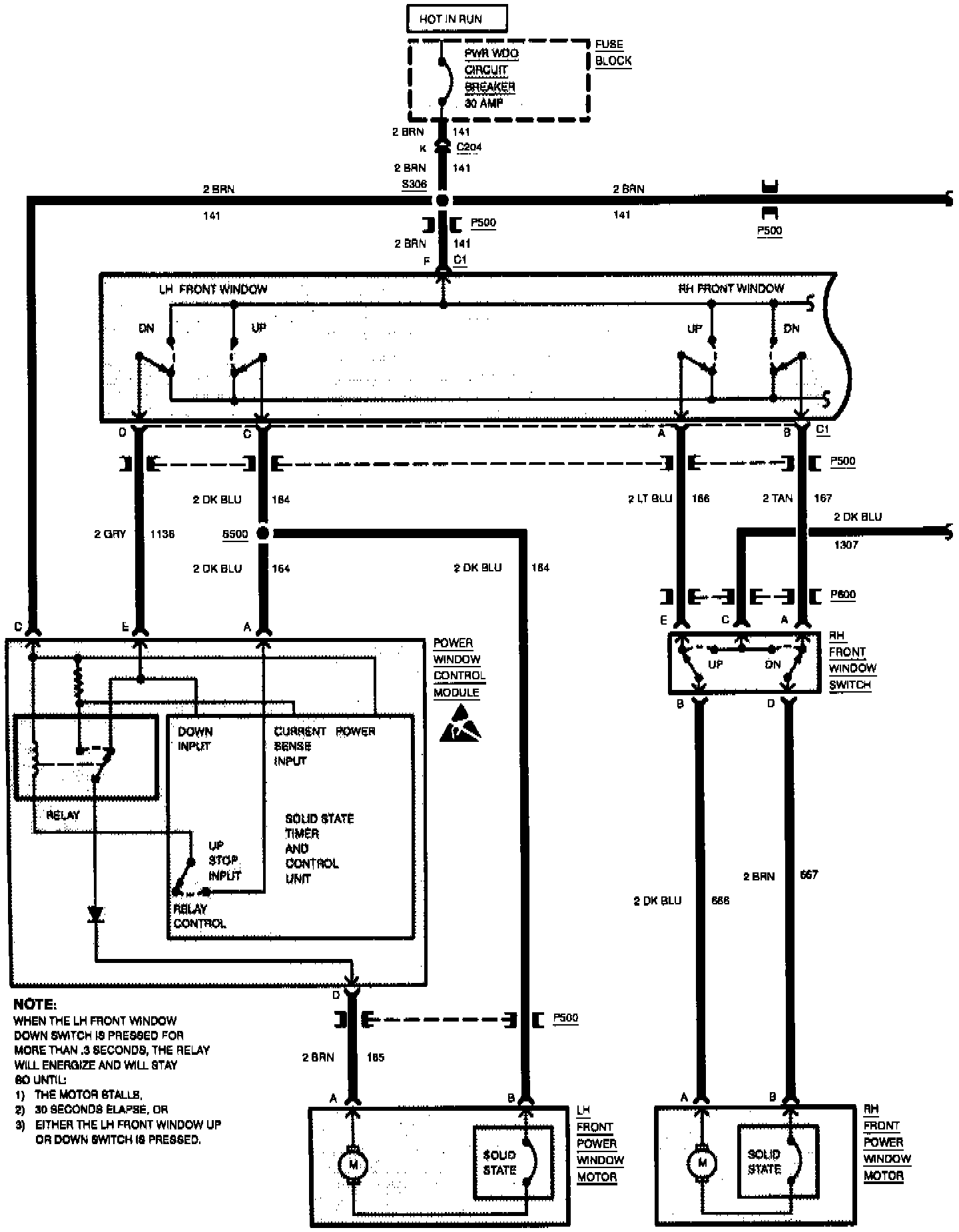

Wiring Diagram: Power Windows 4 Door:

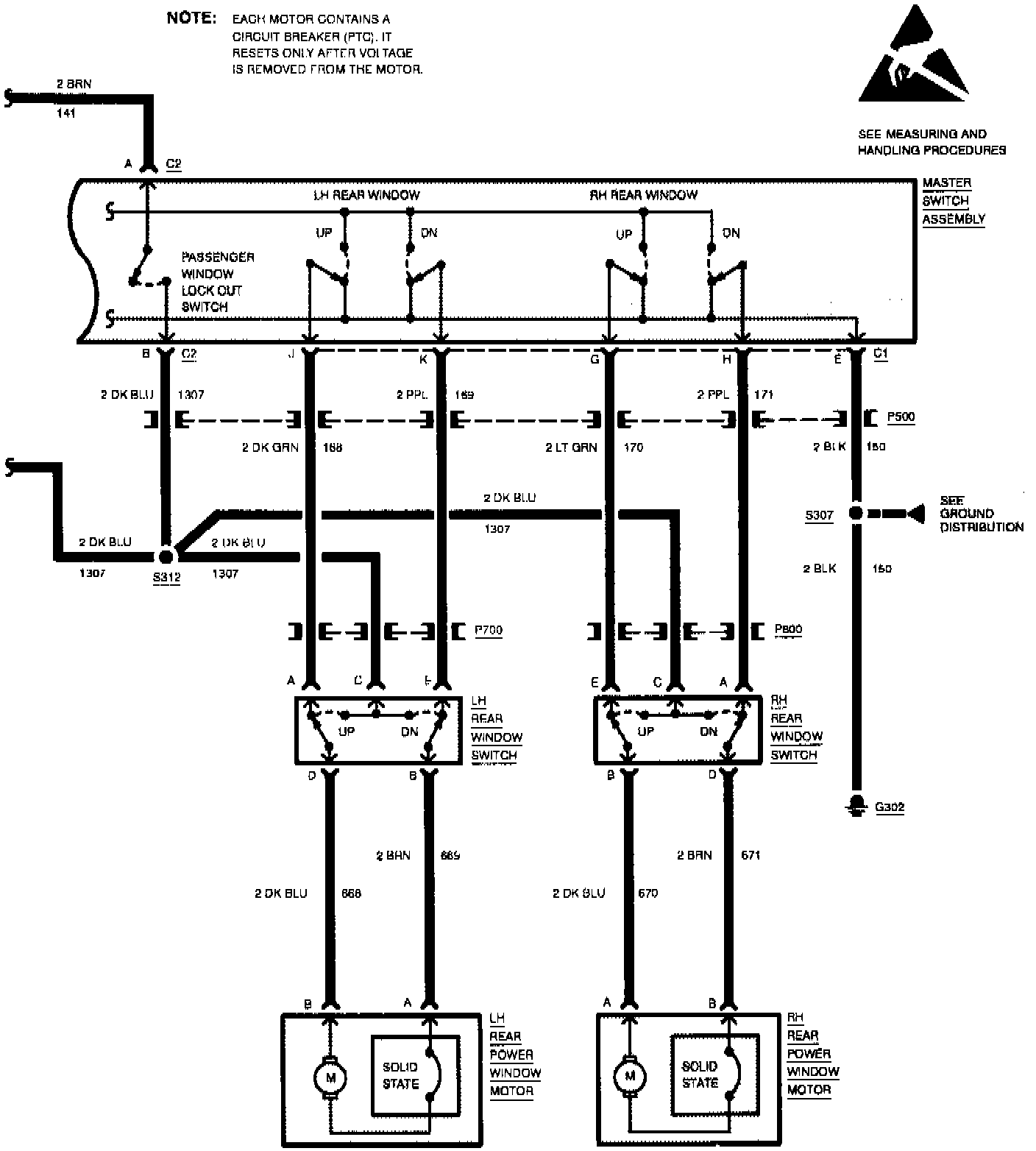

Wiring Diagram: Power Windows 4 Door:
