Injectors & Vehicle Data Sensors
Injectors & Vehicle Data Sensors

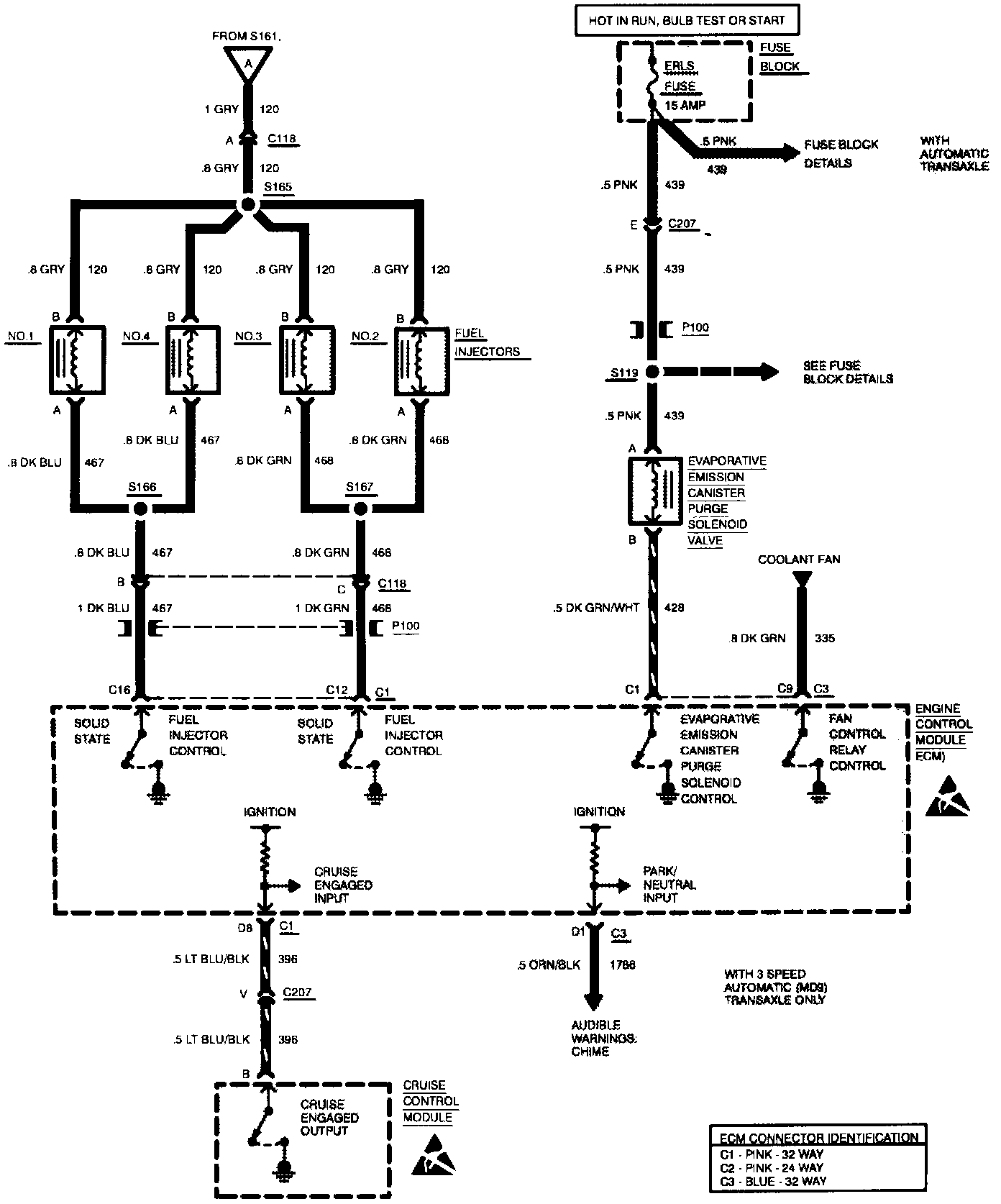

Wiring Diagram: Injectors And Vehicle Data Sensors:
