Home
>>
Oldsmobile
>>
1994
>>
Achieva L4-138 2.3L VIN A FI HP
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heated Glass Element
>>
Standard
Standard

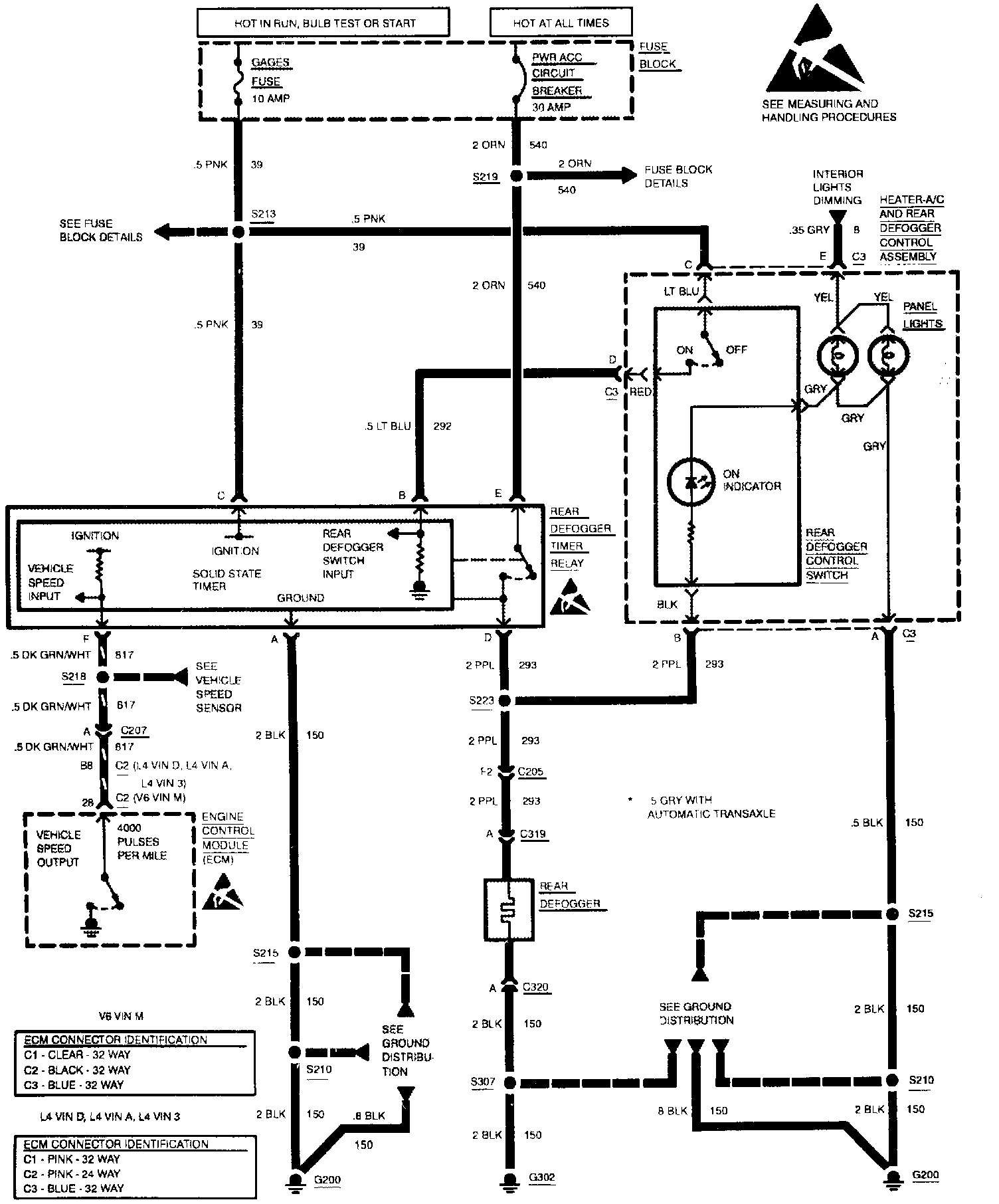

Wiring Diagram: Rear Defogger (Standard):
