Daytime Running Lamp Control Unit
Daytime Running Lamp Control Unit

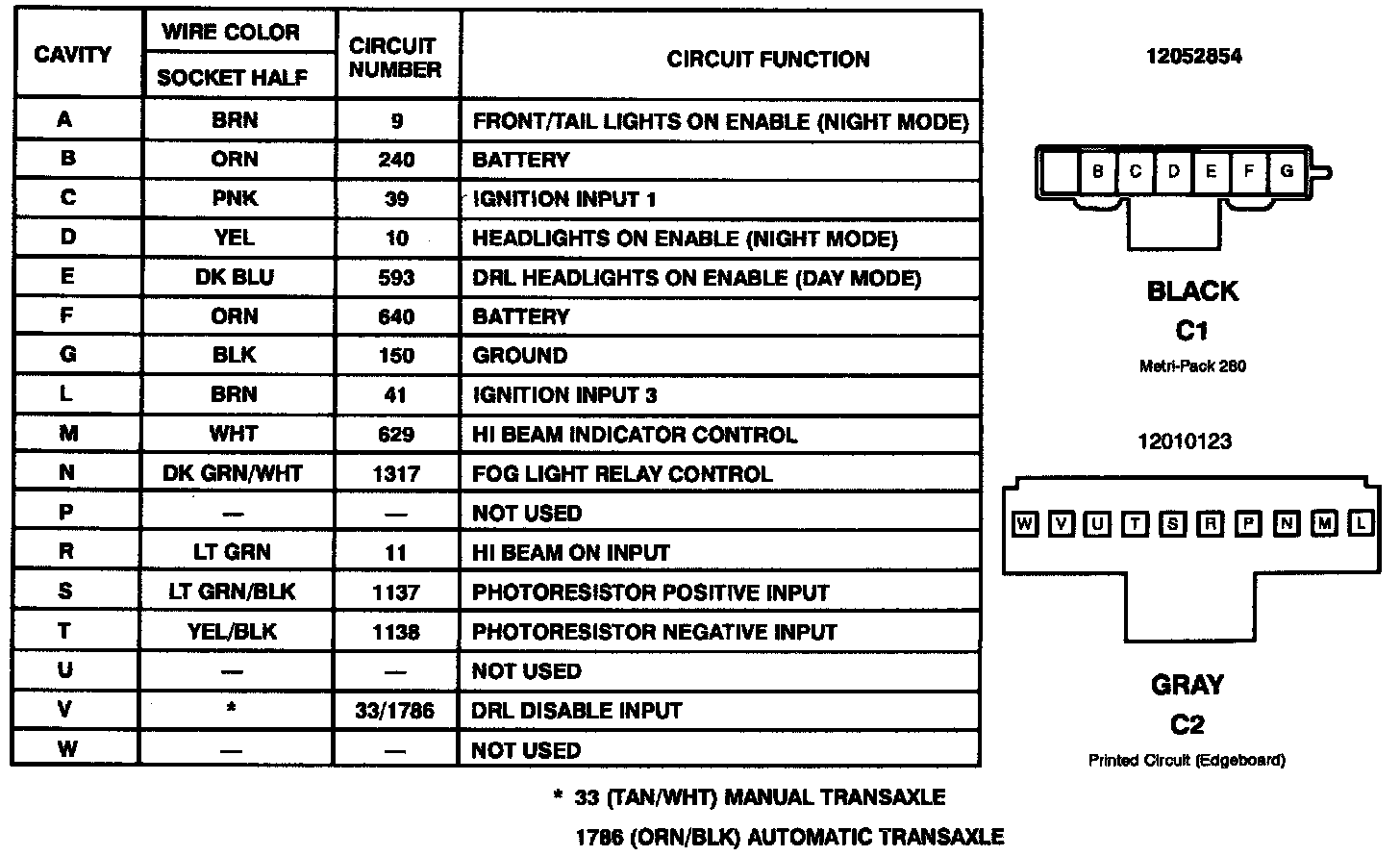

Connector View: Daytime Running Lights (DRL) Module:
