Achieva L4-138 2.3L VIN A FI HP
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
System Diagram
>>
Less VES
Less VES

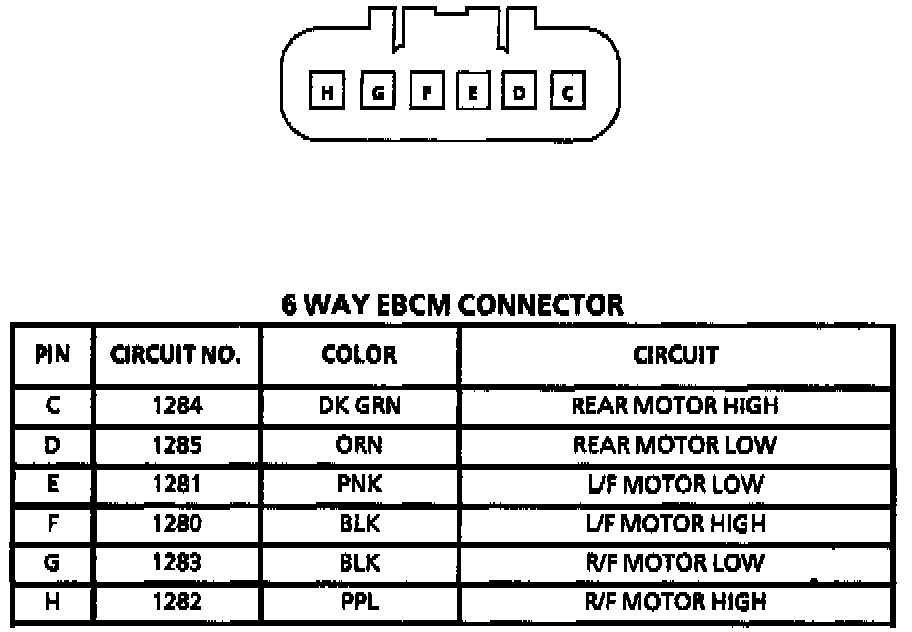

When performing diagnostic procedures refer to
Fig. 25
for
EBCM
connector terminal identification.
