Home
>>
Oldsmobile
>>
1994
>>
Achieva L4-138 2.3L VIN A FI HP
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Power Door Lock Switch
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Chart 2
Chart 2

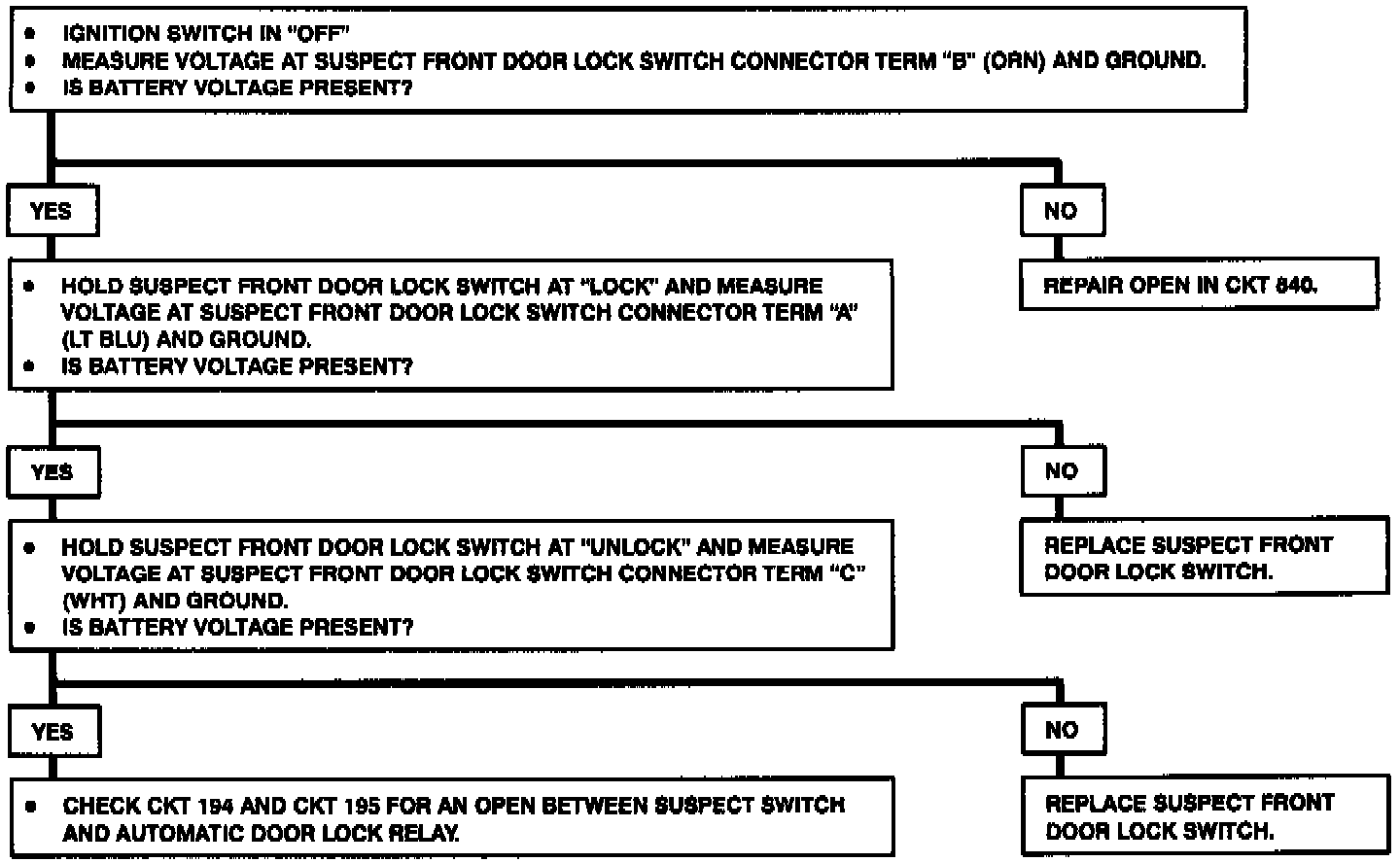

Chart 2: Power Door Locks Operate From Only One Front Door Lock Switch:
