DTC 19

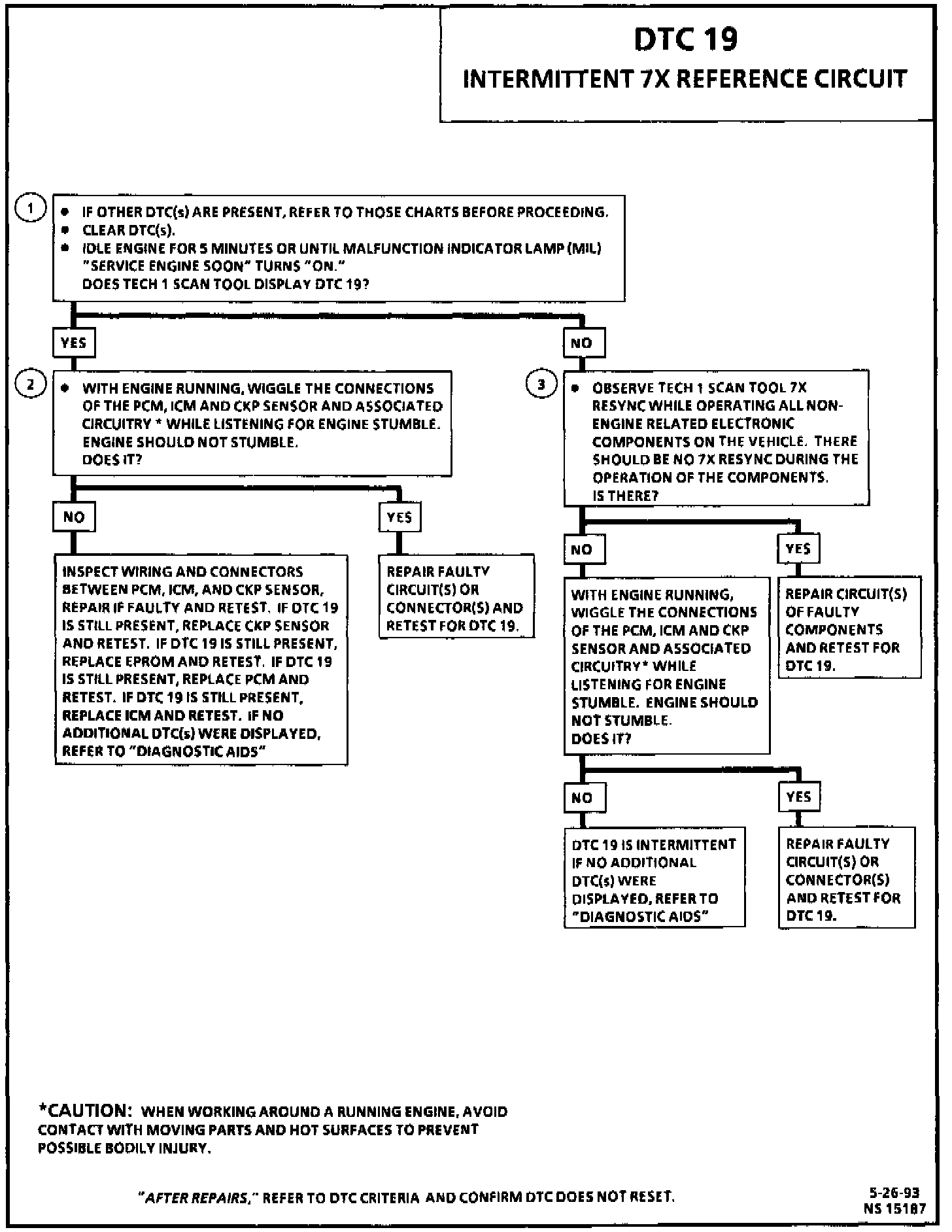

Code 19 Diagnostic Chart:

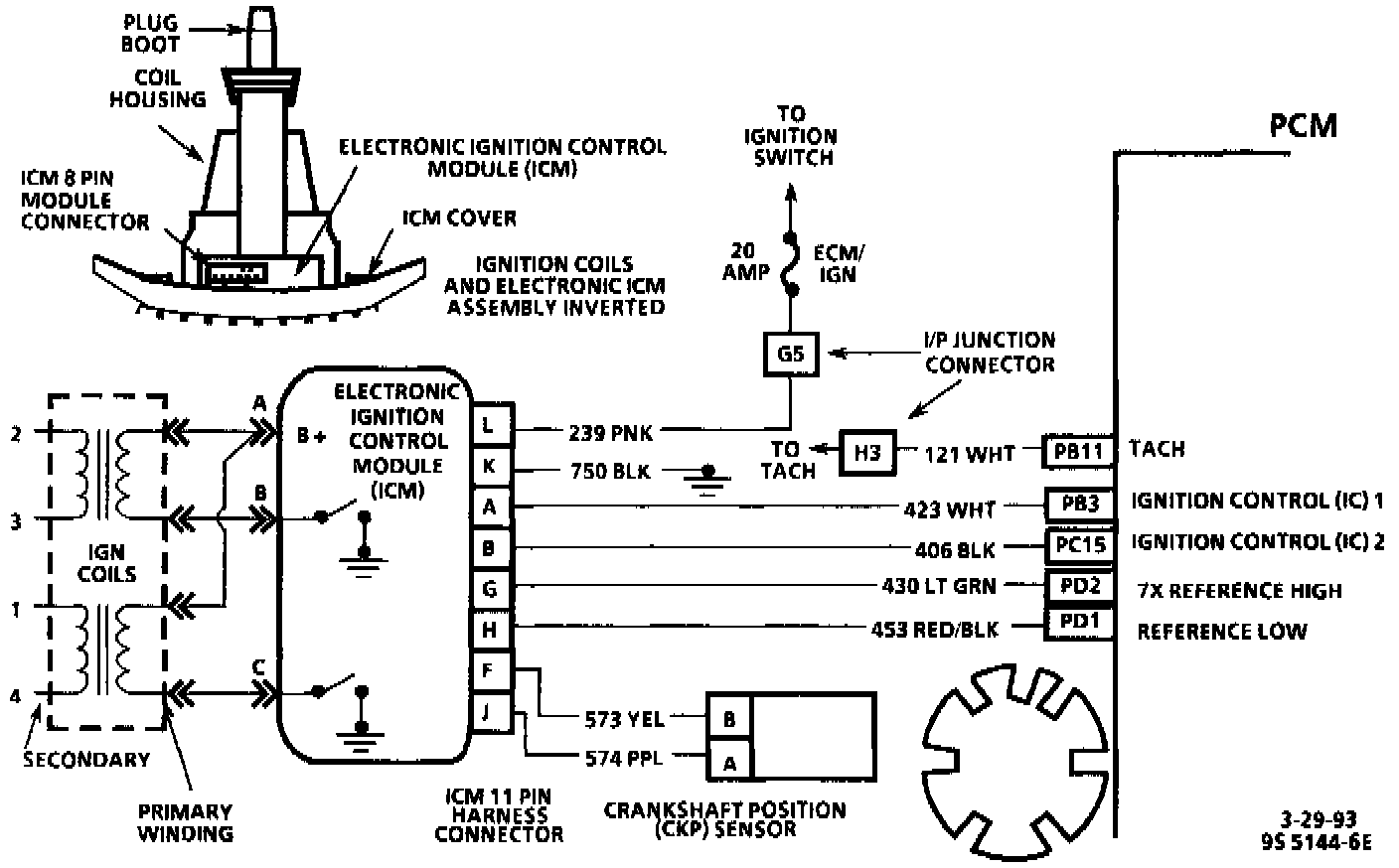

Ignition System Wiring Schematic:

CIRCUIT DESCRIPTION
The electronic Ignition Control Module (ICM) sends a reference signal to the Powertrain Control Module (PCM) seven times per revolution to indicate crankshaft position and RPM so that the PCM can determine when to pulse the ignition coils and control ignition timing. This signal is called the 7X reference because it occurs seven times per revolution. The ICM applies 5 volts from terminal "G", through CKT 430 to PCM terminal "PD2" and in effect, switches this circuit to ground for a very short period of time. The seventh pulse is the sync pulse and is used for crankshaft position reference.

DTC 19 WILL SET WHEN
The PCM misses at least 15 resync pulses within 4 minutes and 16 seconds.

ACTION TAKEN (PCM WILL DEFAULT TO)
Malfunction Indicator Lamp (MIL) illuminates.

TEST DESCRIPTION
Number(s) below refer to circled number(s) on the diagnostic chart.
1. This determines if the PCM recognizes a problem. If it doesn't set DTC 19 at this point, the problem is intermittent.
2. When a 7X resync occurs, engine stumble also occurs. If a component connection or circuitry is at fault, engine stumble may be induced by wiggling the circuit or connection. This step determines if a component connection or circuit is at fault.
3. Operating faulty non-engine related electronic components may emit Electromagnetic Interference (EMI) which may cause a 7X resync. This step determines if the non-engine related component is at fault.

DIAGNOSTIC AIDS
^ An intermittent may be caused by a poor connection, rubbed through wire insulation, or a wire broken inside the insulation. Inspect PCM harness connector terminal "PD2" and ICM 11 pin harness connector terminal "G" for improper mating, broken locks, improperly formed or damaged terminals, poor terminal to wire connection and damaged harness.
^ An intermittent can also be the result of a defective reluctor wheel. Remove crankshaft sensor and inspect reluctor wheel through sensor mount hole. Check for porosity and condition of wheel.
^ If complaint was "Cranks But Will Not Run" DTC 19 may be set when engine start is attempted more than 15 times and ignition is not turned "OFF" between attempts.
