Home >> Oldsmobile >> 1993 >> Cutlass Supreme FWD V6-204 3.4L DOHC >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Locations >> Instrument Panel (I/P)

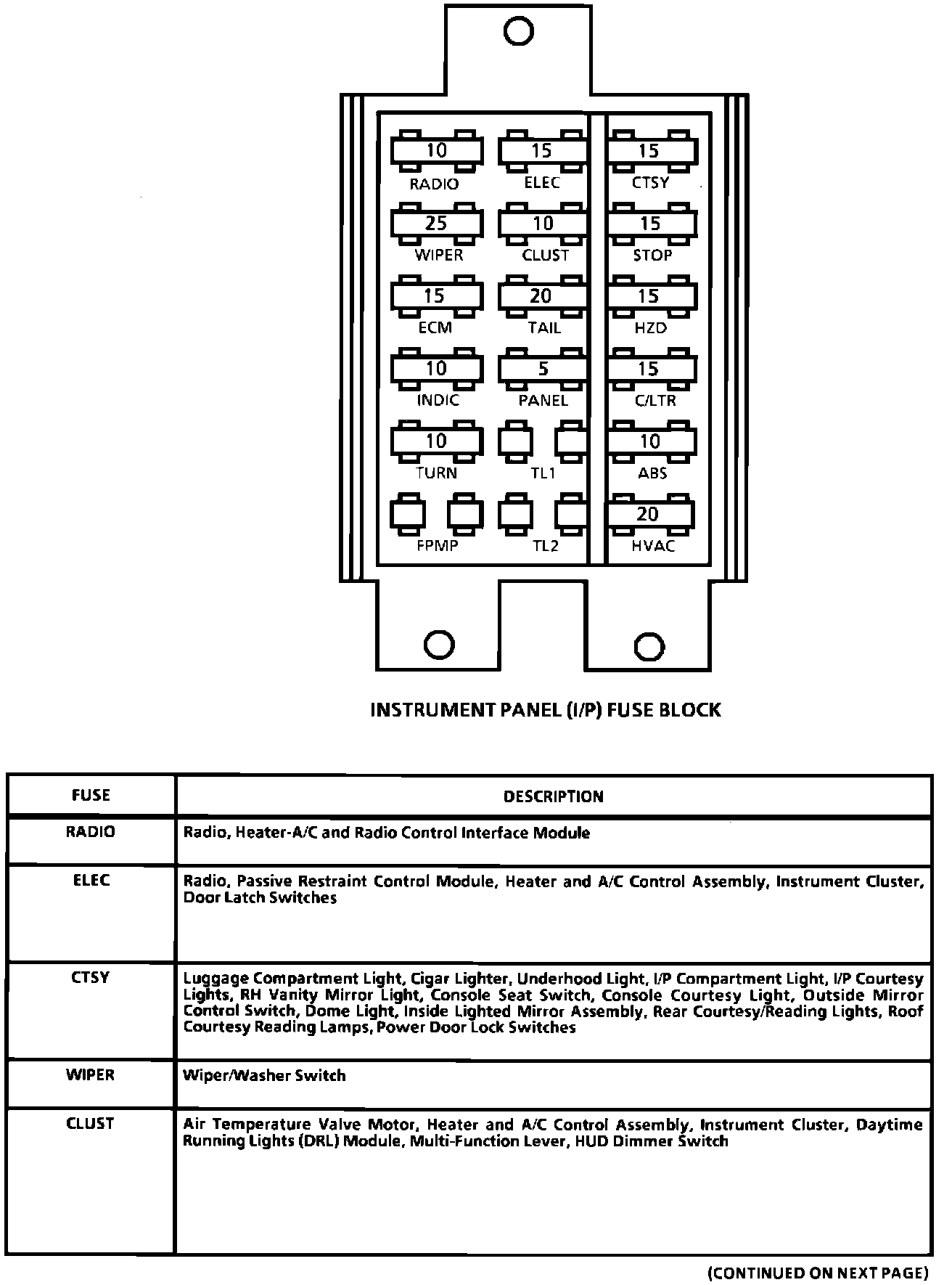

Instrument Panel (I/P)

Fuse Block ID:



Fuse Block ID:
