Home
>>
Oldsmobile
>>
1993
>>
Cutlass Supreme FWD V6-204 3.4L DOHC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Power Window Circuit Breaker
>>
Except Convertible
Except Convertible

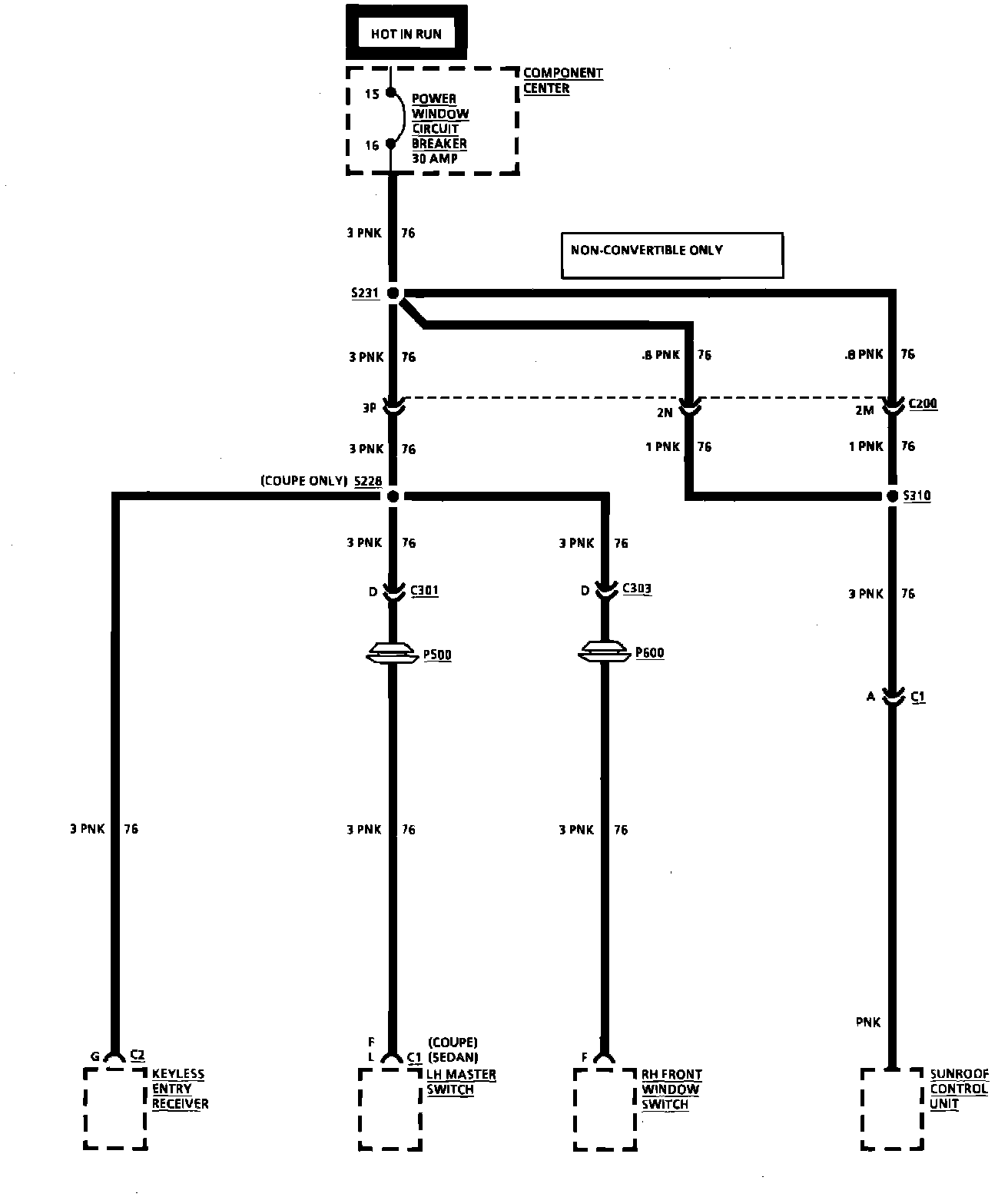

Wiring Diagram:
