Oldsmobile
>>
1993
>>
Cutlass Supreme FWD V6-204 3.4L DOHC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Diagnostic Charts
>>
Air Delivery & Temperature Controls
Air Delivery & Temperature Controls

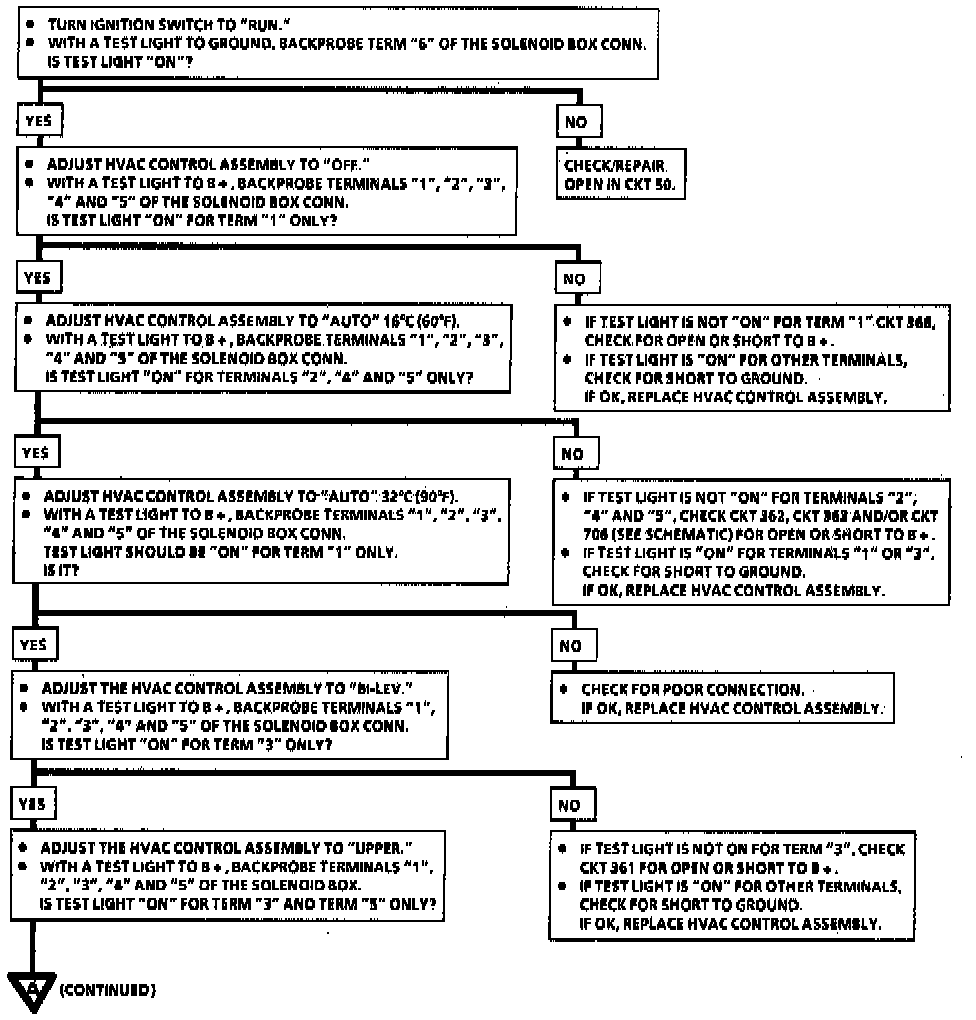

Chart 4 Air Flow From Outlets Is Incorrect:

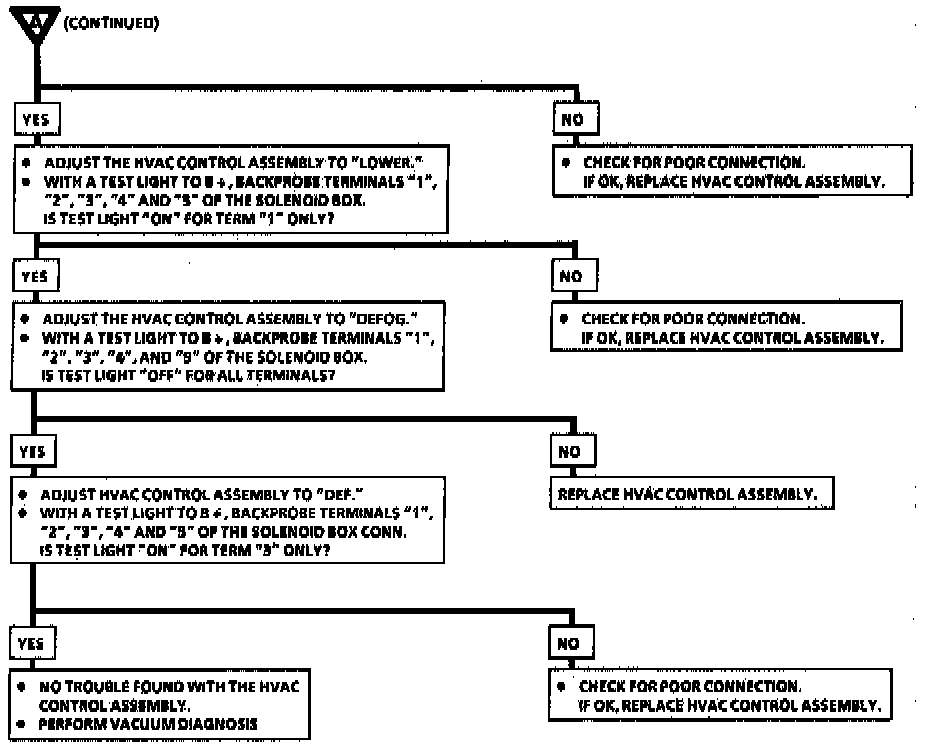

Chart 4 Cont.:
