Cutlass Supreme FWD V6-191 3.1L VIN T MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Throttle Position Sensor
>>
Diagrams
>>
Electrical Diagrams
>>
California Emissions (GEN-II S)
California Emissions (GEN-II S)

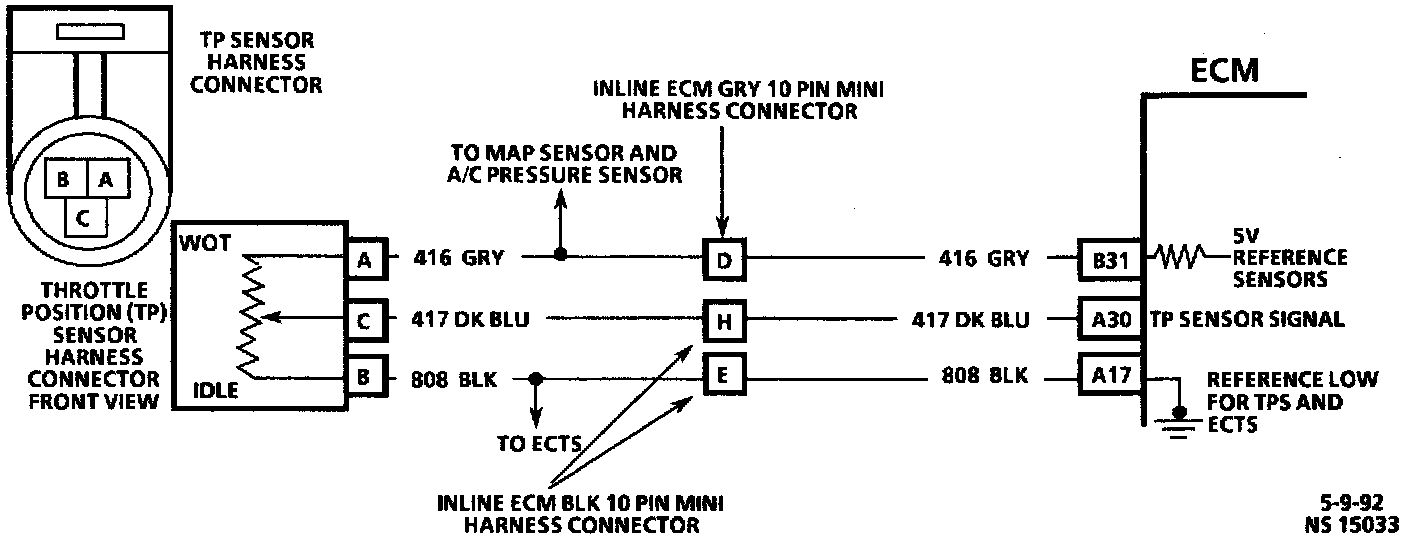

Throttle Position Sensor Wiring:
