Knock Sensor - Revised Chart C-5

NUMBER: 93-U-60

CORP.REF.NO: 316512

DATE: September 1993

SECTION: 6E3

SUBJECT:
REVISED KNOCK SENSOR
- SYSTEM CHECK (CHART C-5)

MODELS/YEARS:
1993 CUTLASS CIERA AND ACHIEVA
W/3300 (VIN N) ENGINE

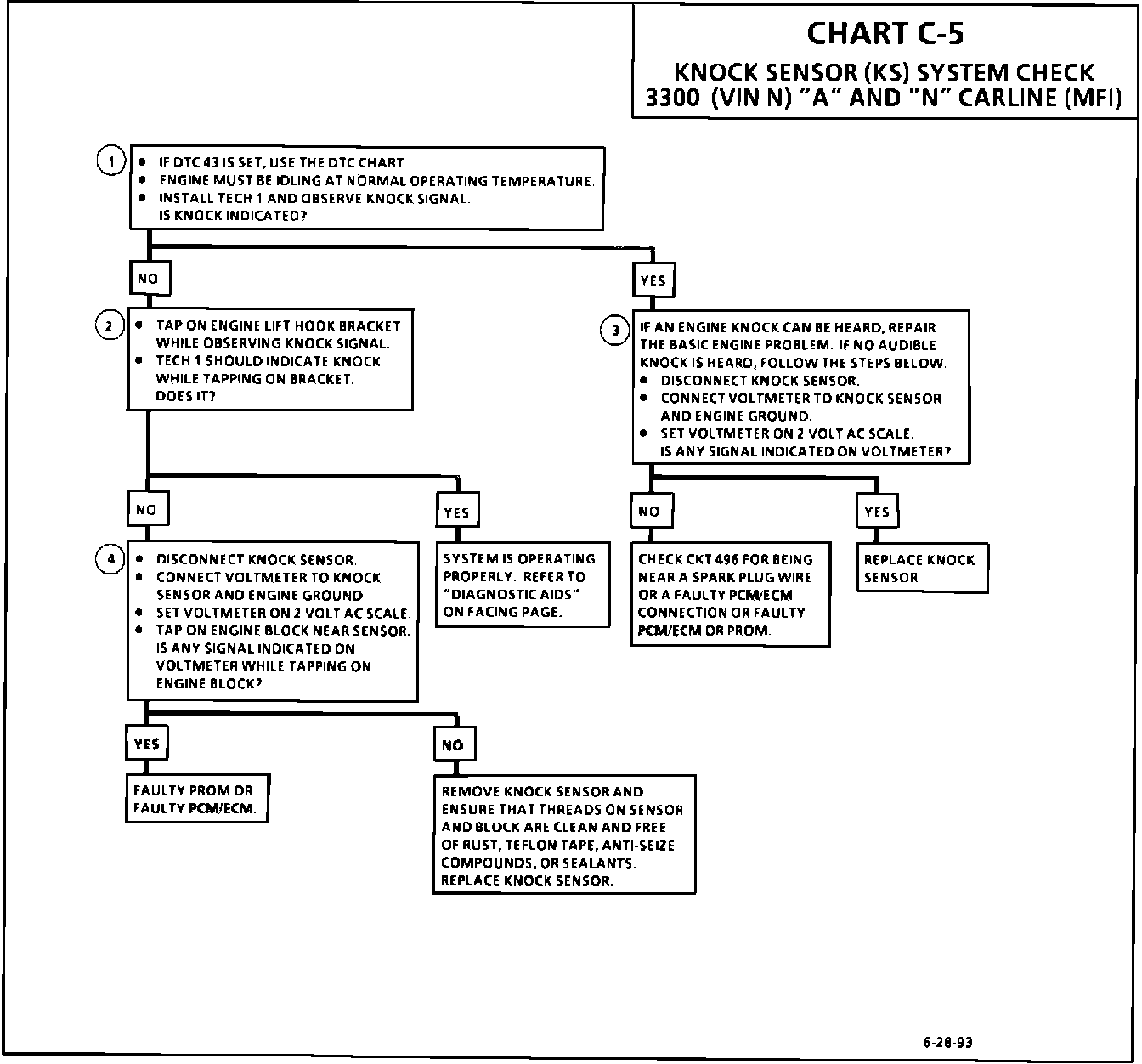

The revised C-5 Knock Sensor System Chart information should be used when diagnosing the knock system on 1993 Cutlass Ciera and Achieva models with the 3300 (VIN N - RPO LG7) MFI engine. Please update page 6E3-C5-5 of your copy of the 1993 Cutlass Ciera and Achieva Service Manual.
