Oldsmobile
>>
1993
>>
Cutlass Ciera Cruiser L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>

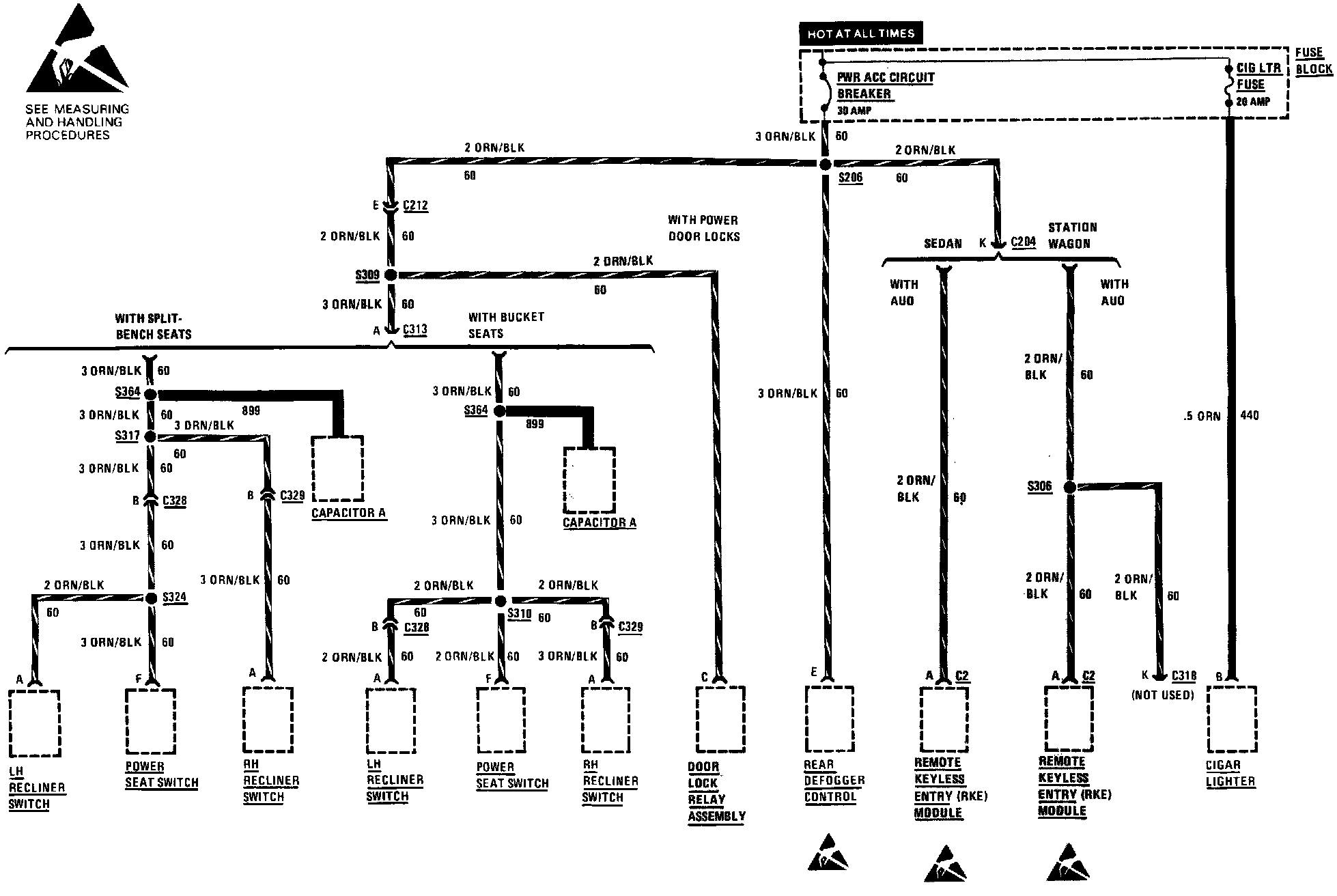

Power ACC Circuit Breaker and CIG LTR Fuse
Power ACC Circuit Breaker and CIG LTR Fuse
Fuse Block Details:
