Oldsmobile
>>
1993
>>
Cutlass Ciera Cruiser L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>

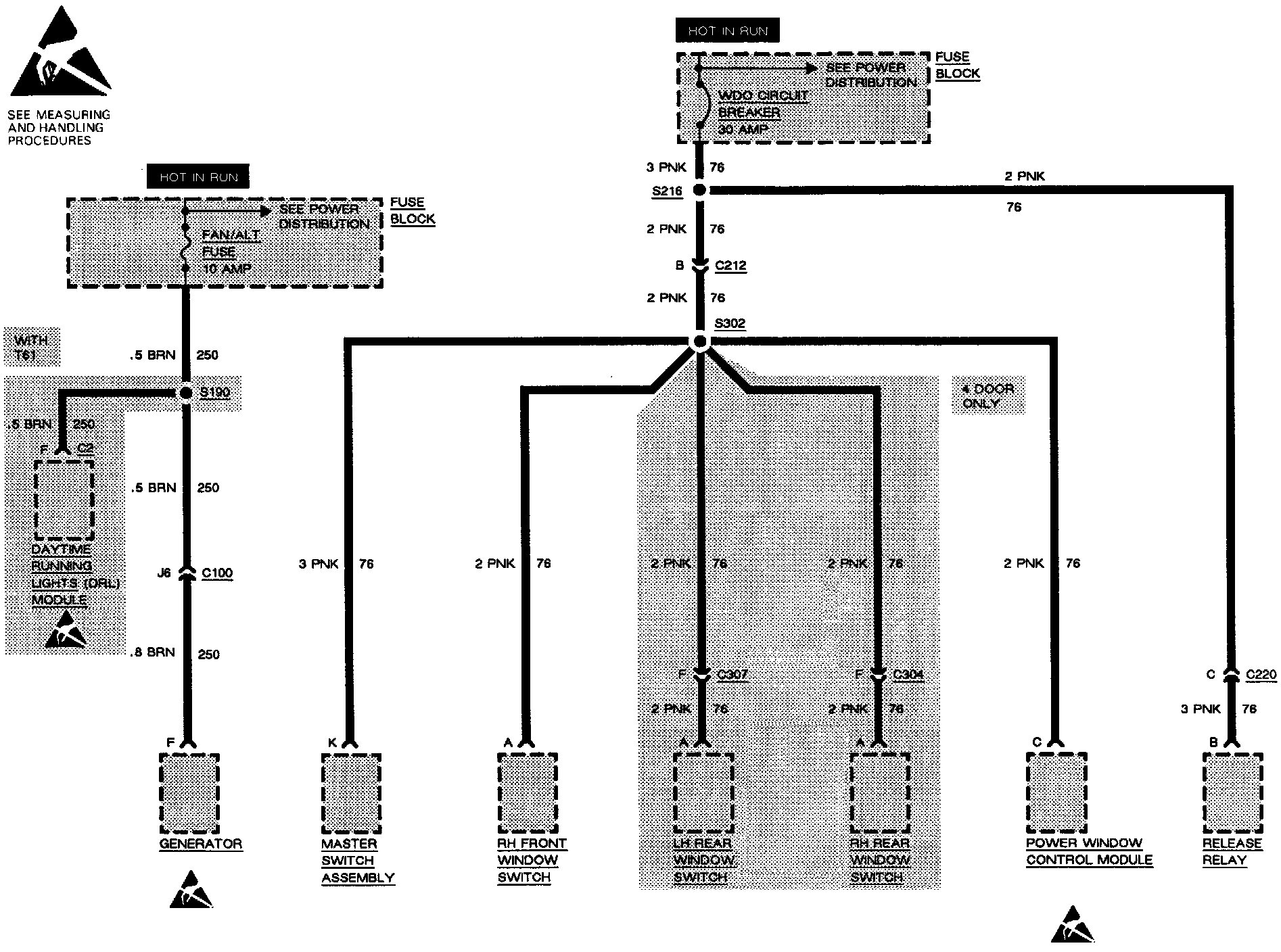

Fan, Alt Fuse and Window Circuit Breaker
Fan, Alt Fuse and Window Circuit Breaker
Fan/Alt Fuse, And WDO Circuit Breaker:
