Home >> Oldsmobile >> 1993 >> Cutlass Ciera Cruiser L4-2.2L VIN 4 >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> ECM, ENG/AC and Tail Fuse

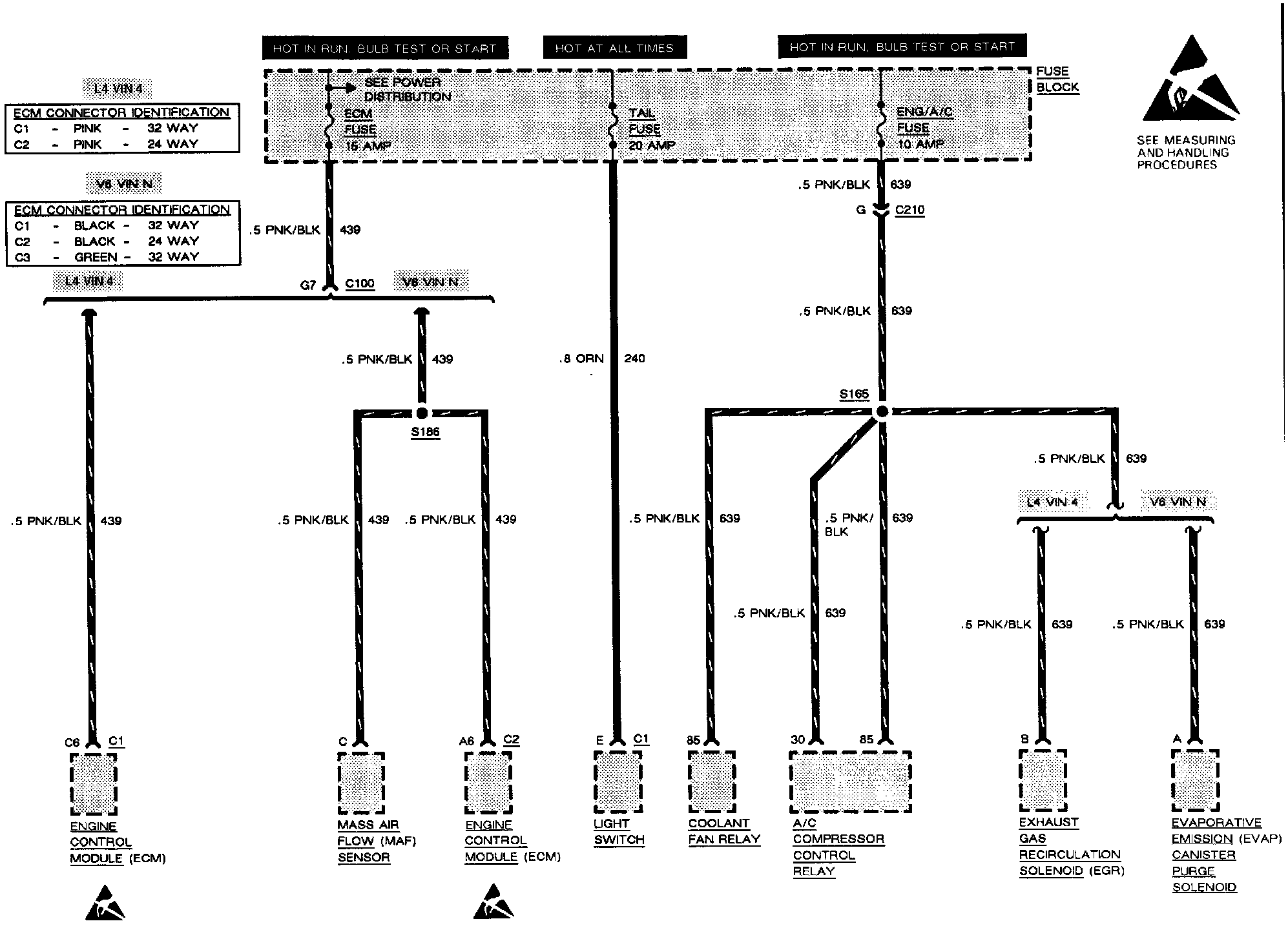

ECM, ENG/AC and Tail Fuse

Fuse Block Details:
