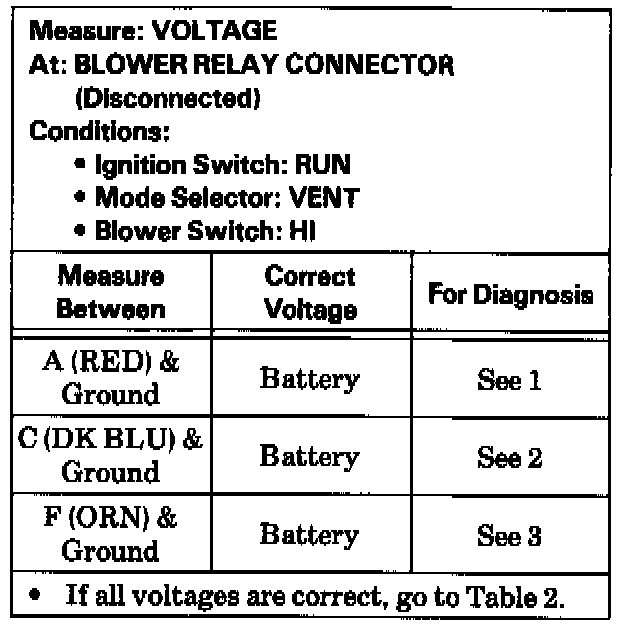

Table 1


Blower Relay Test:






1. Check RED (2) wire for an open back to Fusible Link A (V6 VIN N) or fusible Link F (L4 VIN 4).
2. Check DK BLU (101) wire for an open. If OK, go to Test C.
3. Check ORN (52) wire for an open. If OK, go to Test D. D. Blower Switch Test
