Cutlass Ciera Cruiser L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>

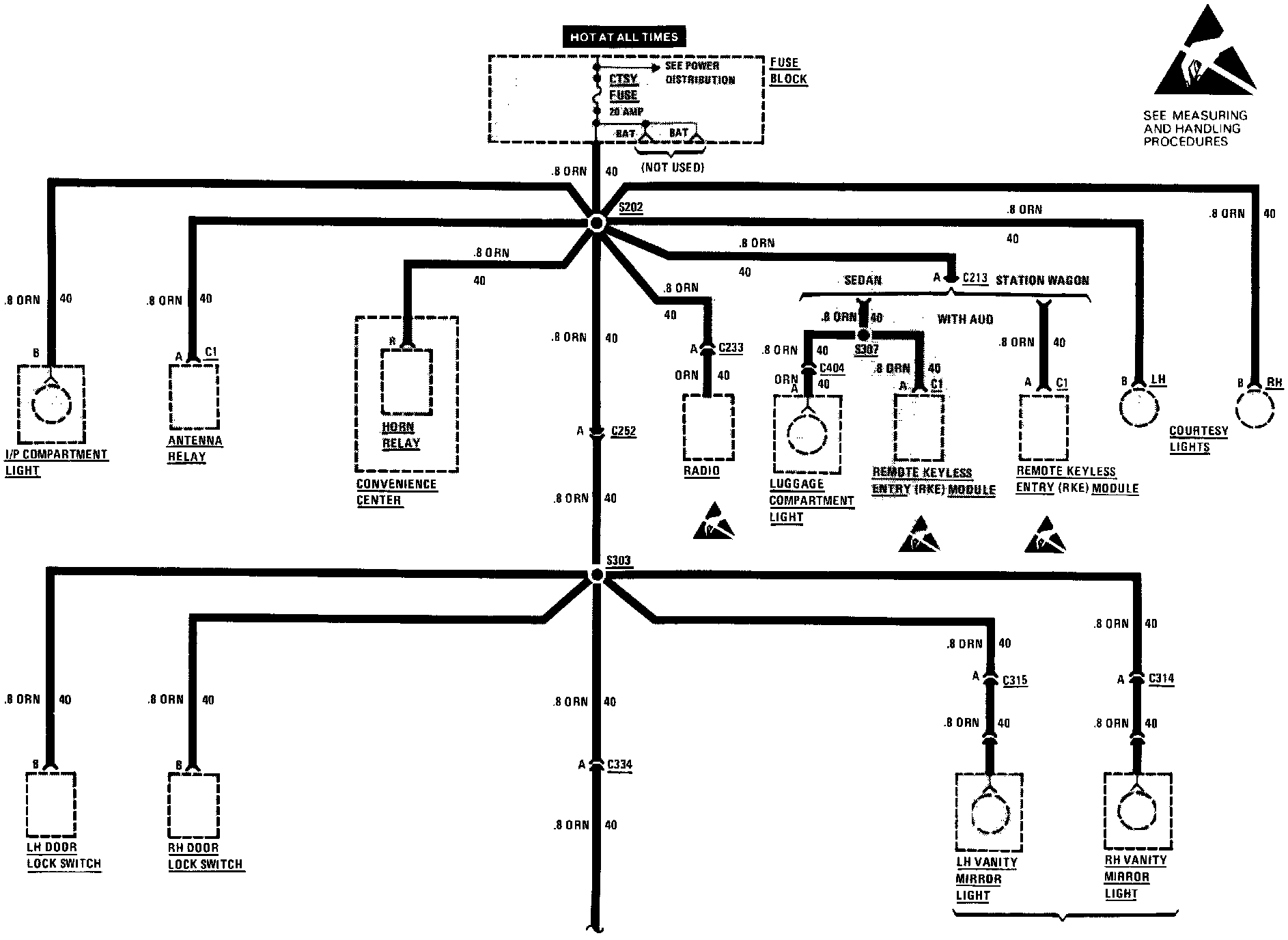

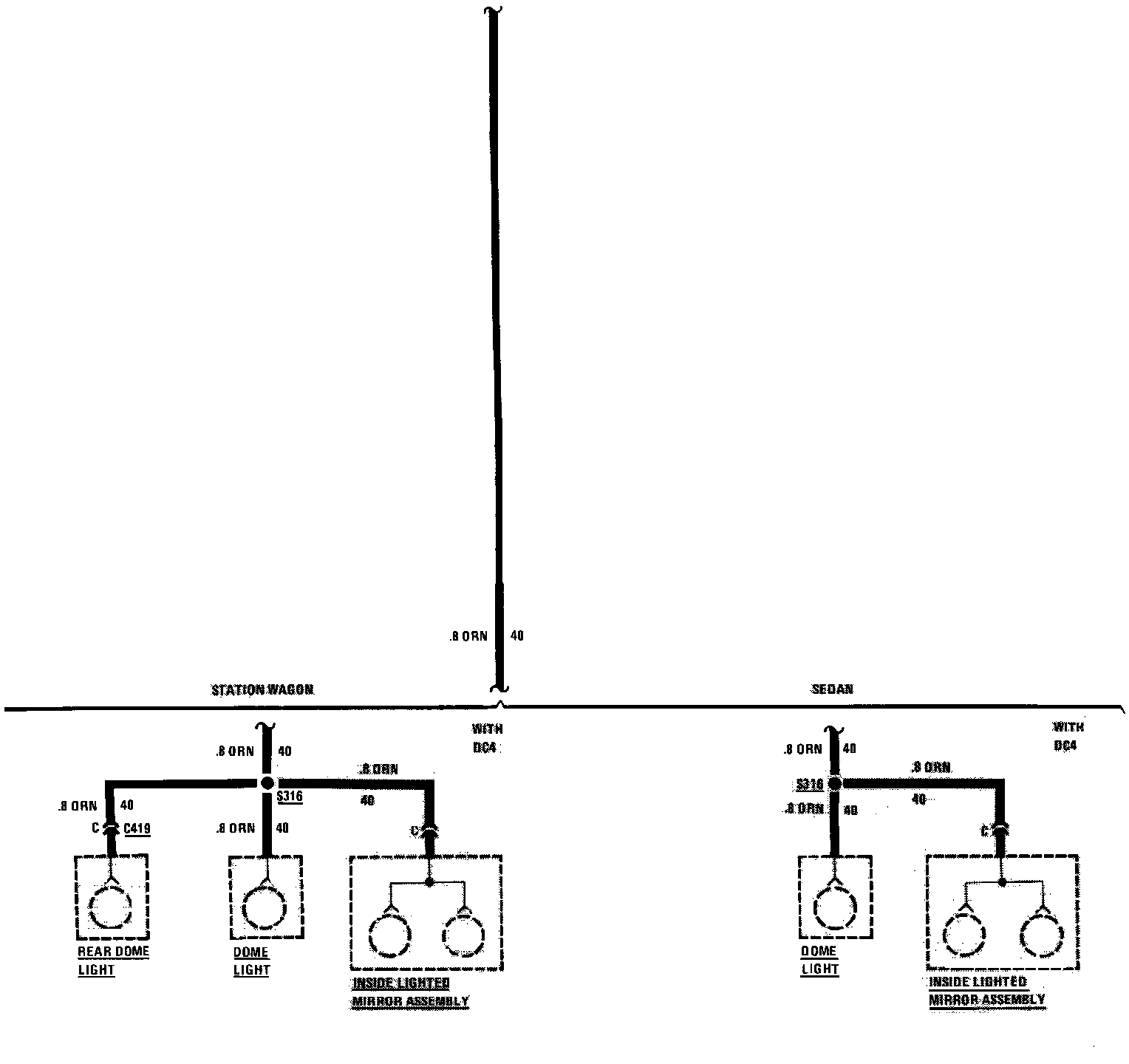

Courtesy Fuse Circuit
Courtesy Fuse Circuit
Fuse Block Details:
Fuse Block Details:
