Cutlass Ciera Cruiser L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
C200-C299
>>
C210
C210

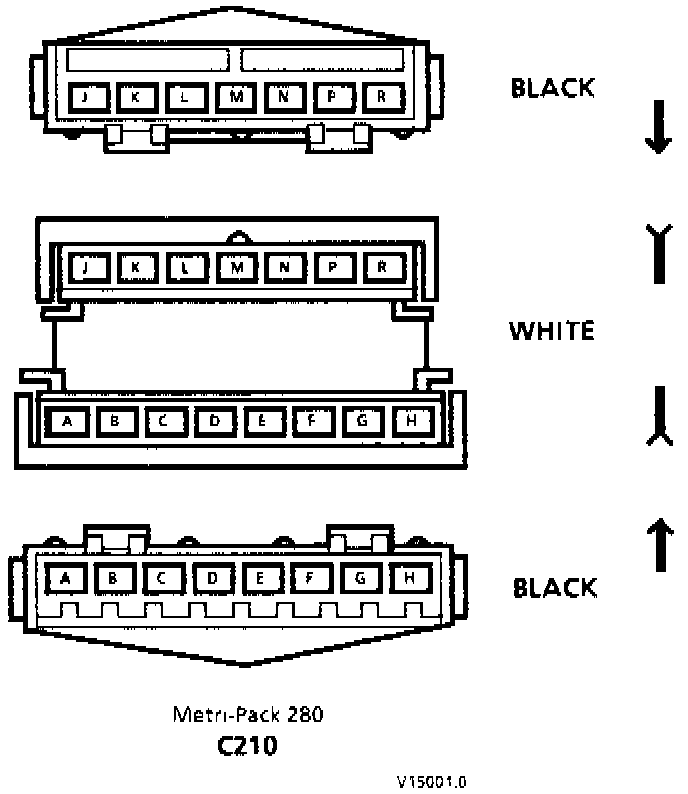

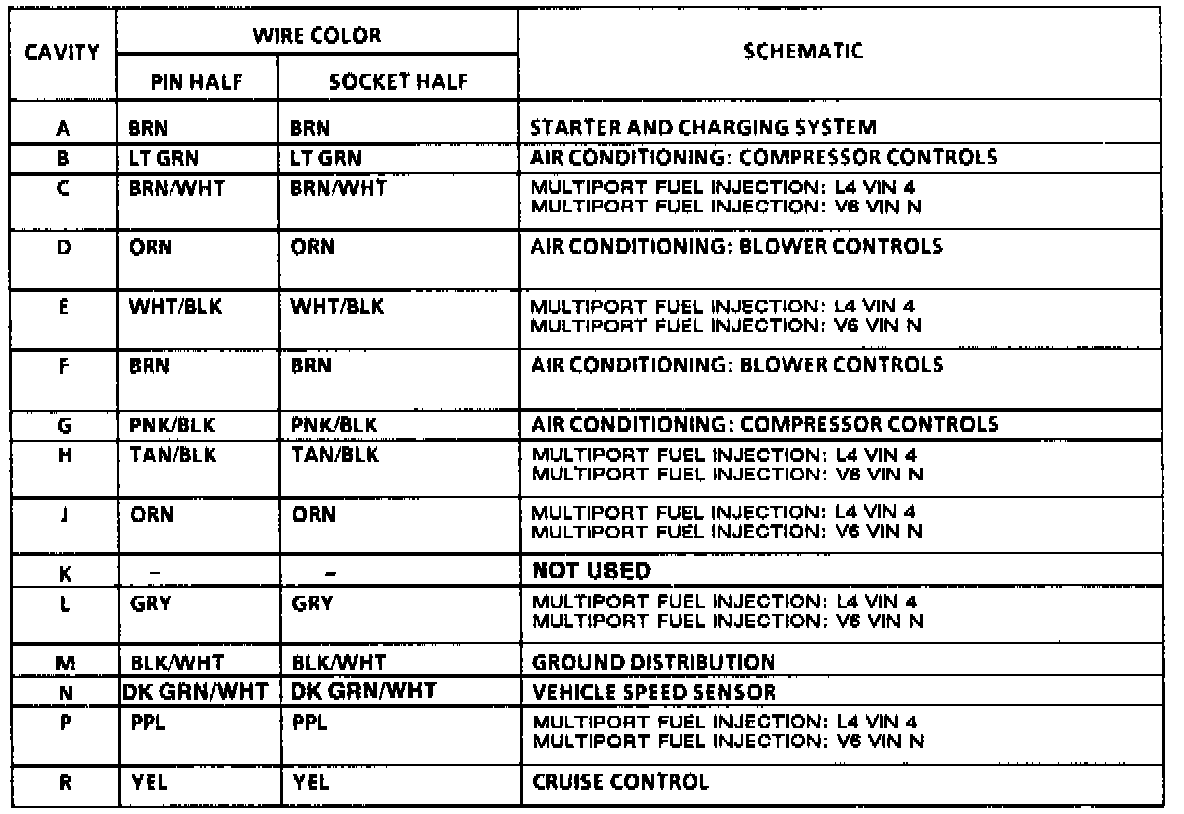

Harness Connector Faces:
Harness Connector Faces:
