Interior Trim - Front Center Armrest Angle Adjustment

9215oldsmobile01

NUMBER: 92-T-17

CORP.REF.NO: 101013

DATE: November 1991

SECTION: 10-10


SUBJECT: FRONT SEAT CENTER ARMREST ANGLE
- NEW PROCEDURE TO ADJUST


MODELS/YEARS: 1992 EIGHTY EIGHT AND NINETY EIGHT


CONDITION: On some 1992 Eighty Eight and Ninety Eight vehicles, the armrest angle may be too great for proper use.

CORRECTION: This condition can be corrected as follows:
1. Remove the front seat assembly.
2. Remove the center armrest.

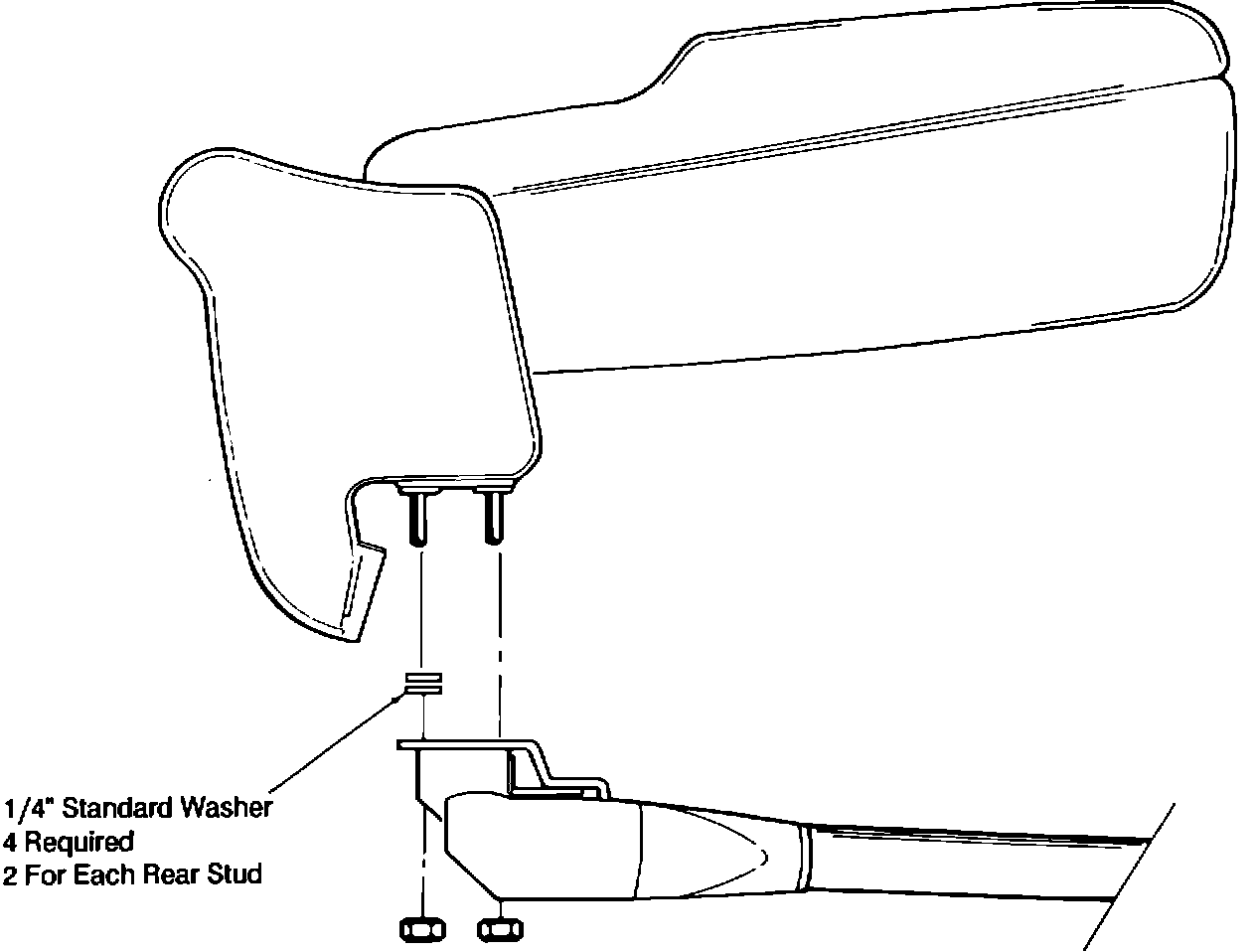

3. Use two standard 1/4" washers as shims on each rear armrest attaching stud to level the armrest. See the illustration.
