Brakes - ABS Pump Motor Circuit Test Revised

9218oldsmobile02

NUMBER: 92-U-13

CORP.REF.NO: 105006

DATE: November 1991

SECTION: 5E


SUBJECT:
REVISED ANTILOCK BRAKE SYSTEM
PUMP MOTOR CIRCUIT TEST


MODELS/YEARS:
1992 EIGHTY EIGHT AND NINETY EIGHT

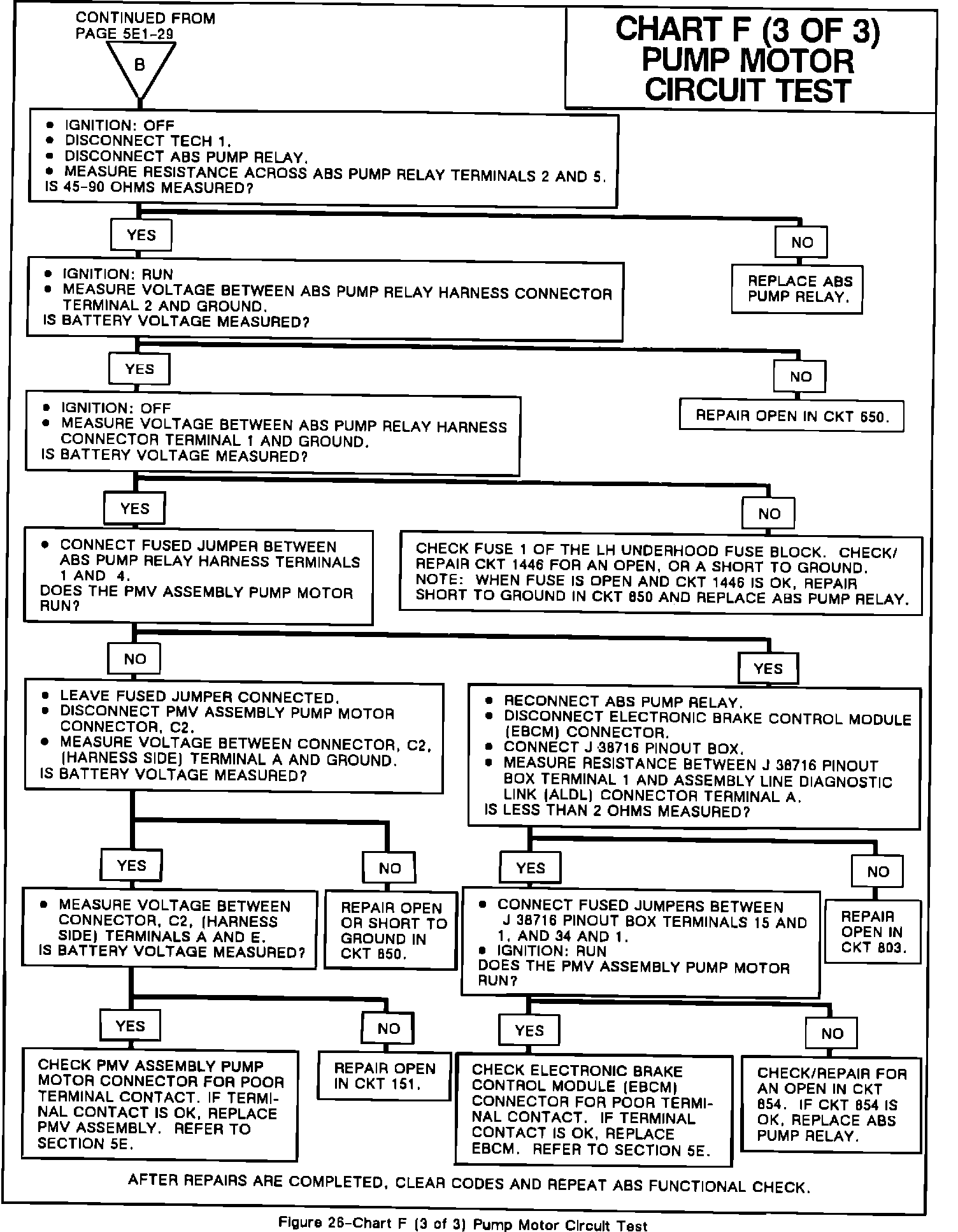

For proper Antilock Brake System diagnosis, use the revised chart which is printed in this bulletin. Please mark a reference to this bulletin at page 5EI-33 in your copies of the affected service manuals.
