A/C & Instrument Panel - Revised Wiring/Diagnostics
NUMBER: 92-U-58CORP.REF.NO: 208110
DATE: October 1992
SECTION: 8A
SUBJECT:
ELECTRICAL DIAGNOSTIC REVISIONS
MODELS/YEARS:
1992 EIGHTY EIGHT, NINETY EIGHT
This bulletin provides revised information ranging from wire gauge and color changes to changing connector pinout identification and wiring routing changes.
Where page numbers are given, they are the original 1992 Eighty Eight or Ninety Eight Service manual page number. Please mark a reference to this bulletin in your copy of the affected service manual and write-in the revised information given in the update change summaries.
UPDATE CHANGE SUMMARIES

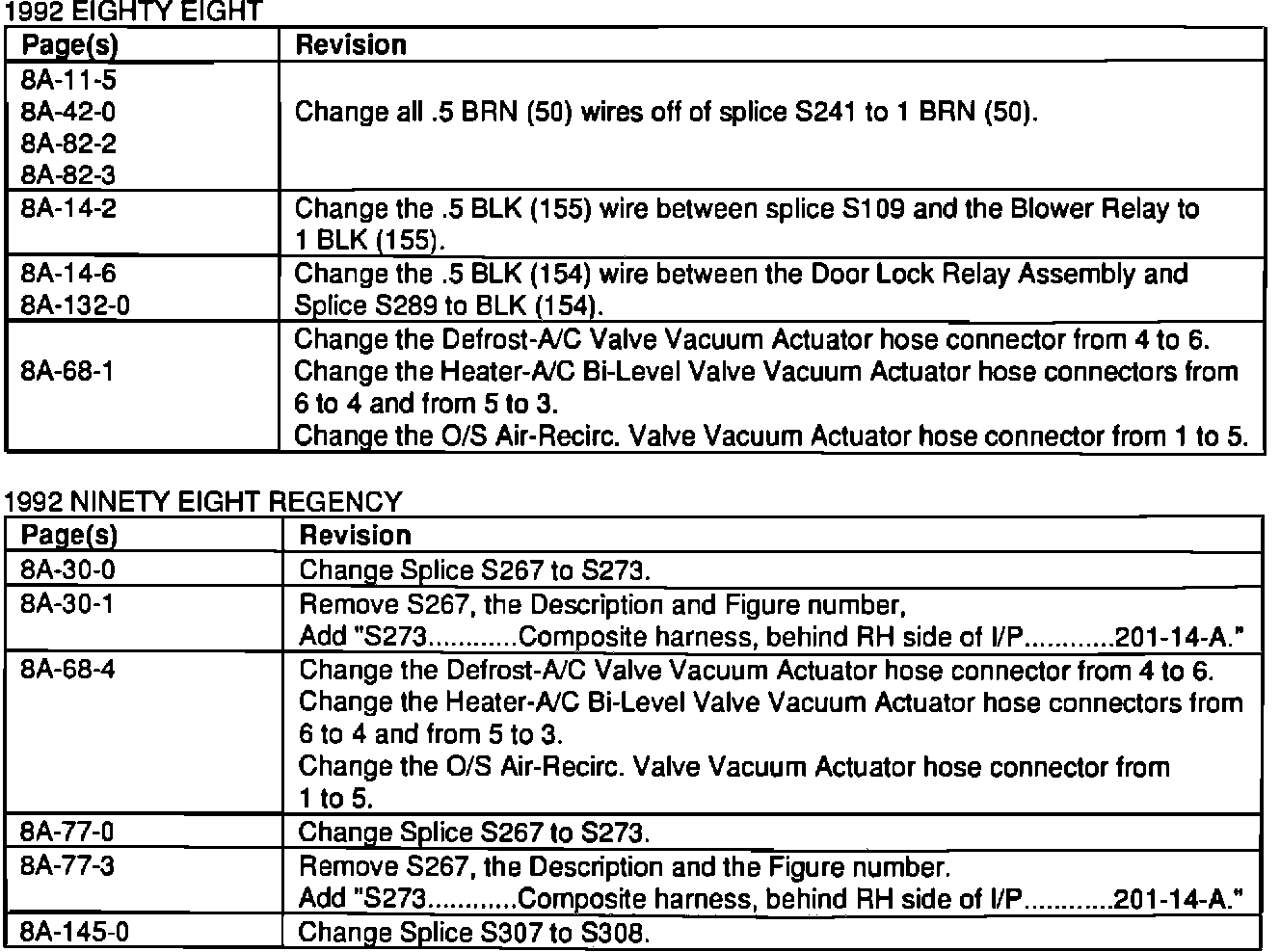

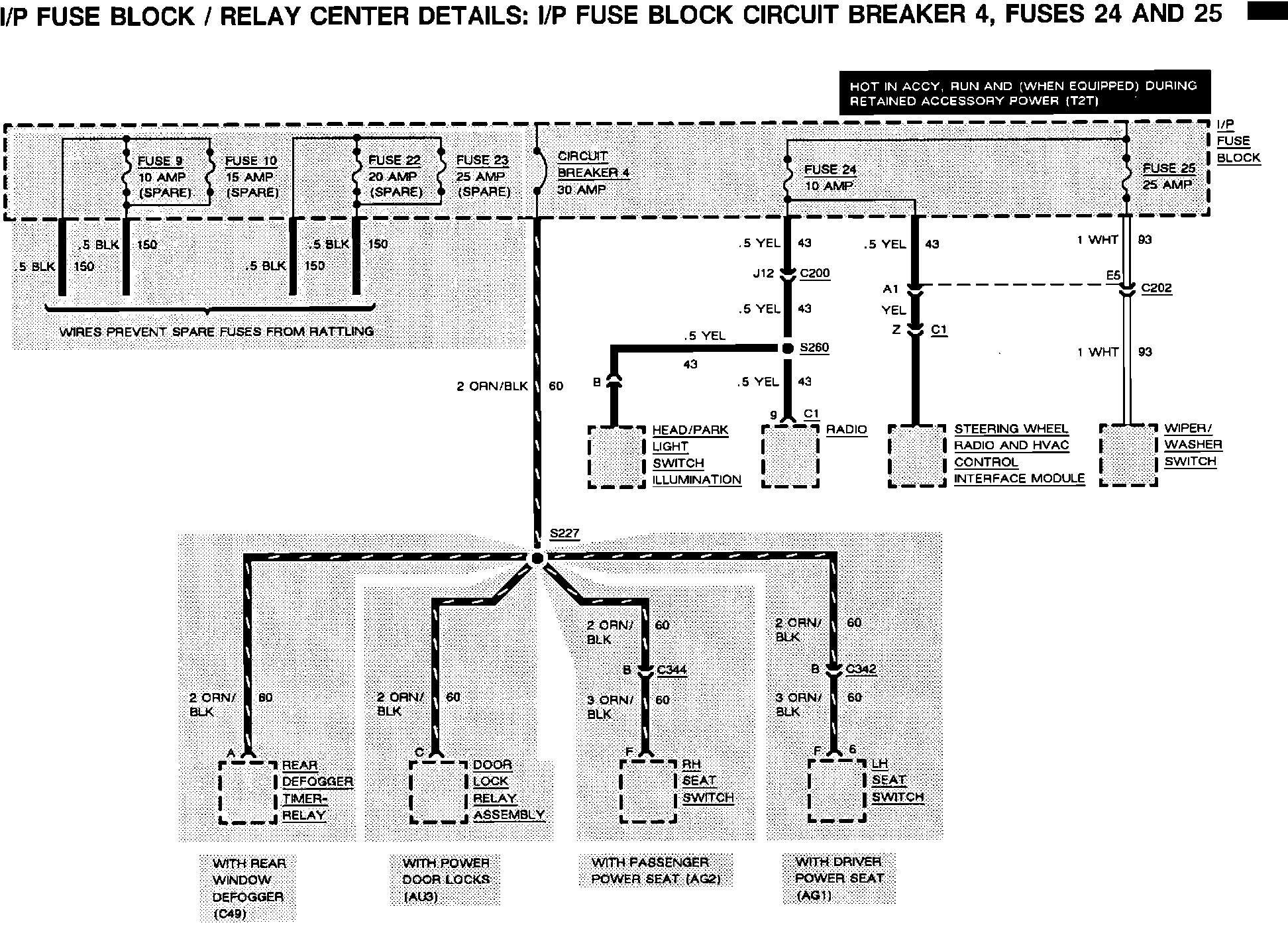

Eighty Eight I/P Fuse Block Circuit Breaker 4, Fuses 24 and 25
Eighty Eight Automatic Air Conditioning (C61)

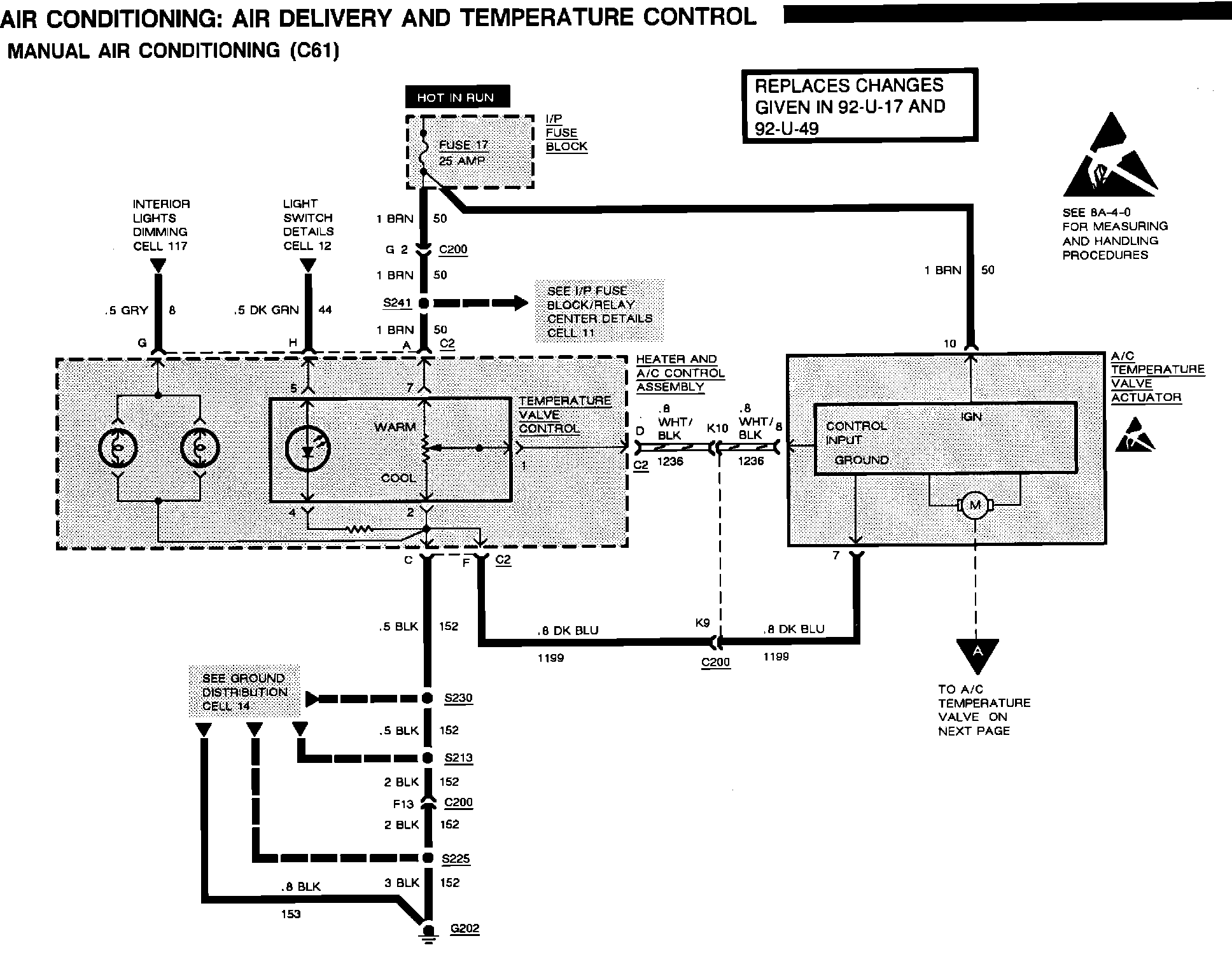

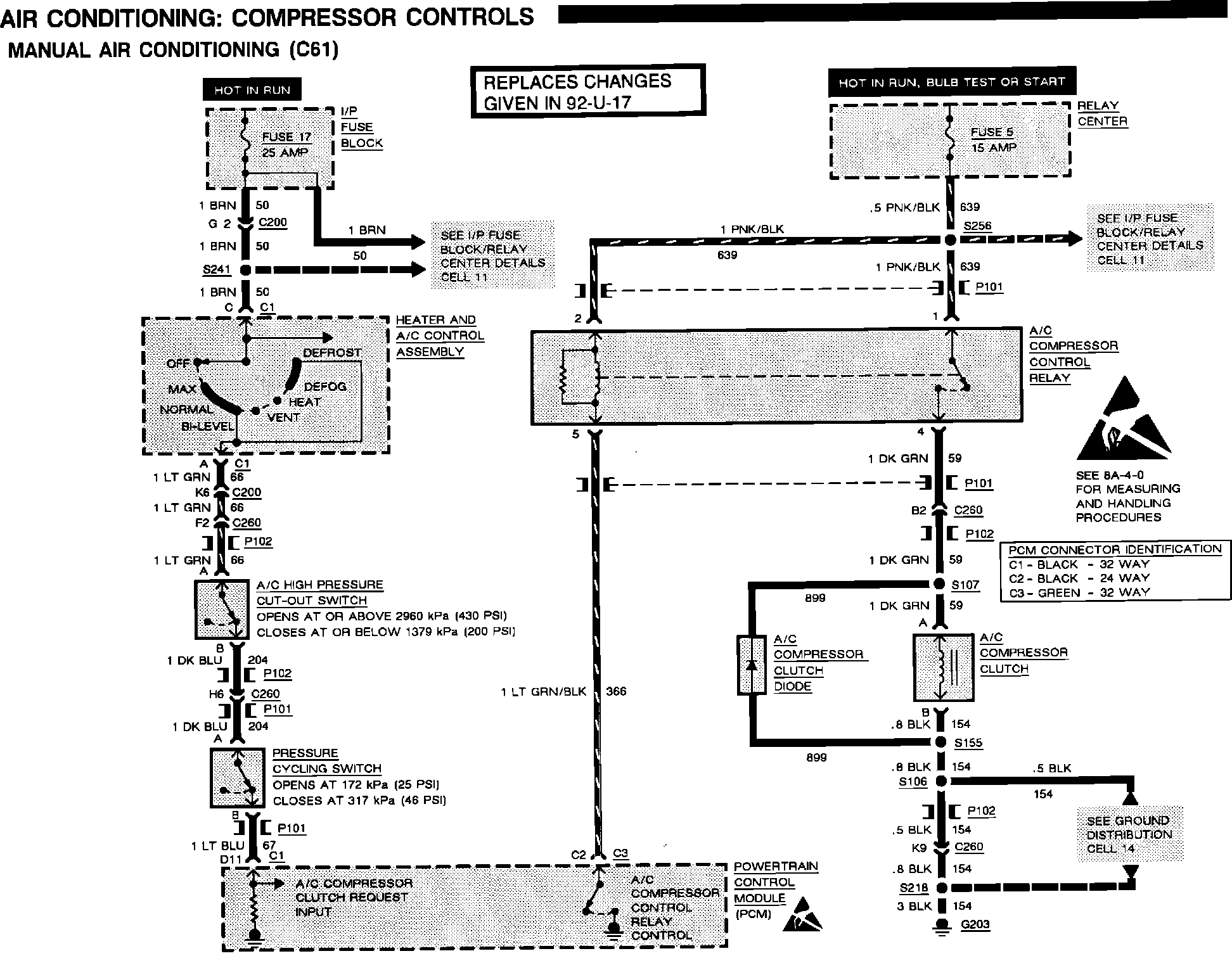

Eighty Eight Manual Air Conditioning (C61)

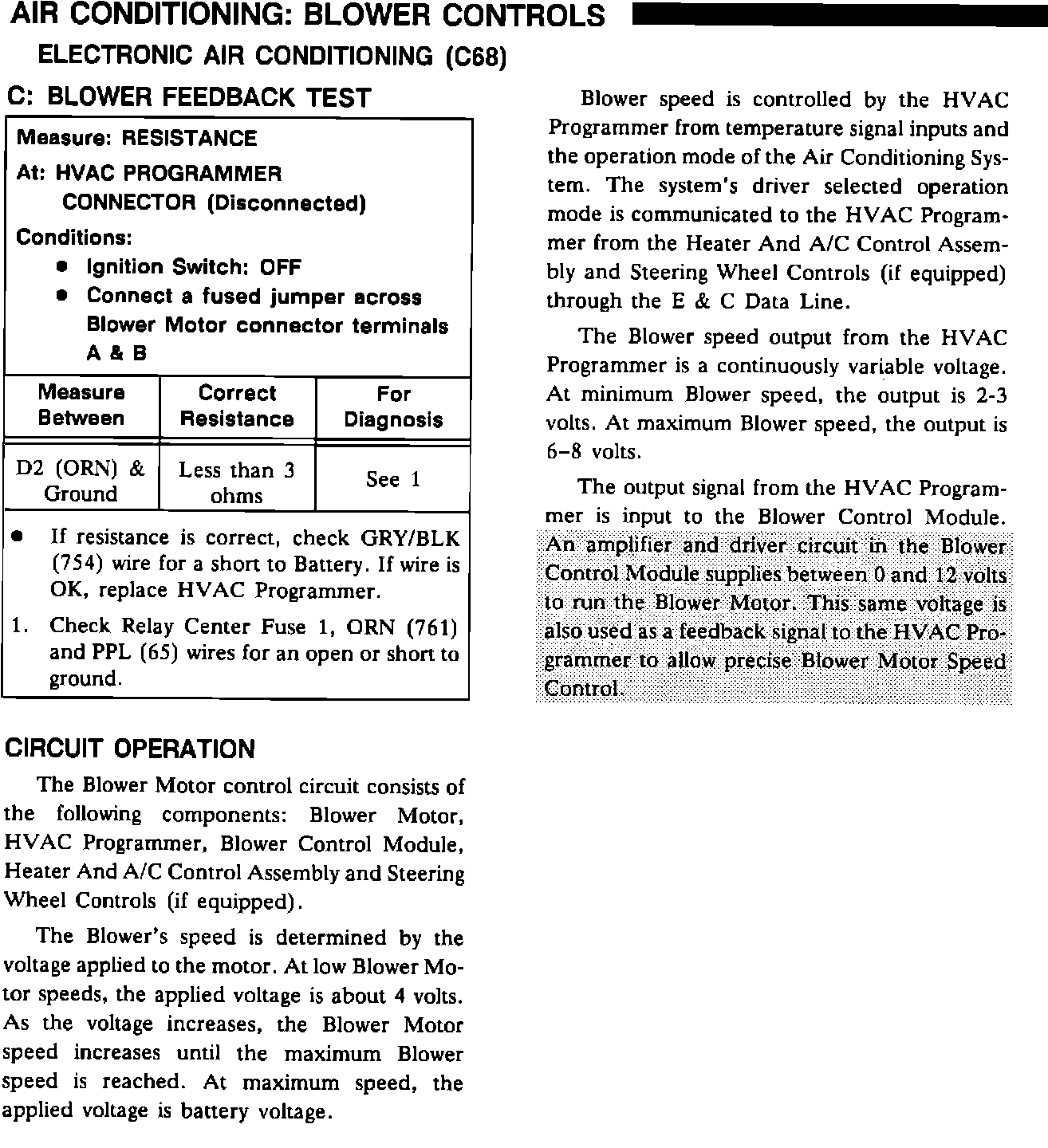

Eighty Eight Electronic Air Conditioning (C68)

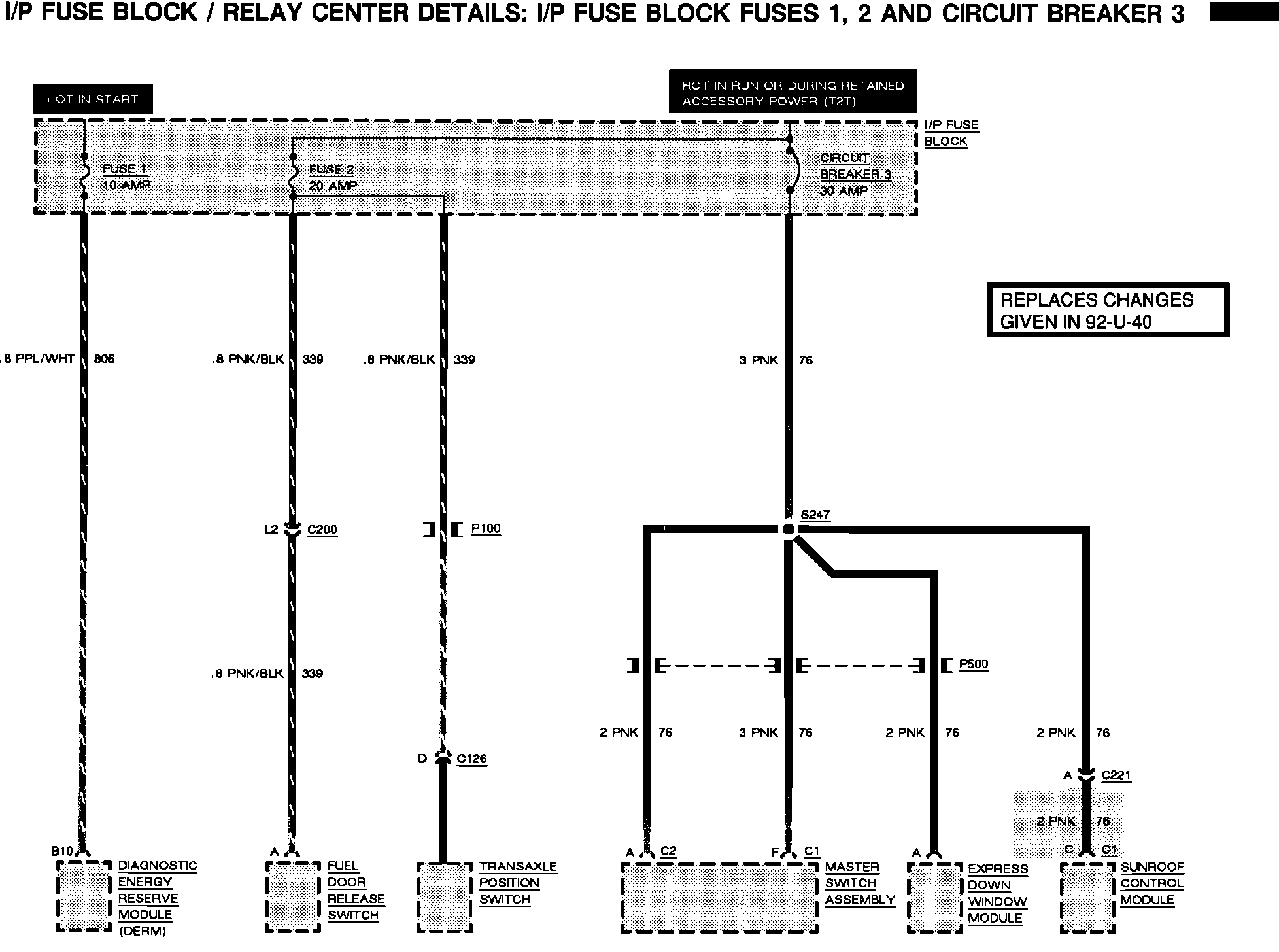

Ninety Eight I/P Fuse Block Fuses 1, 2, and Circuit Breaker 3

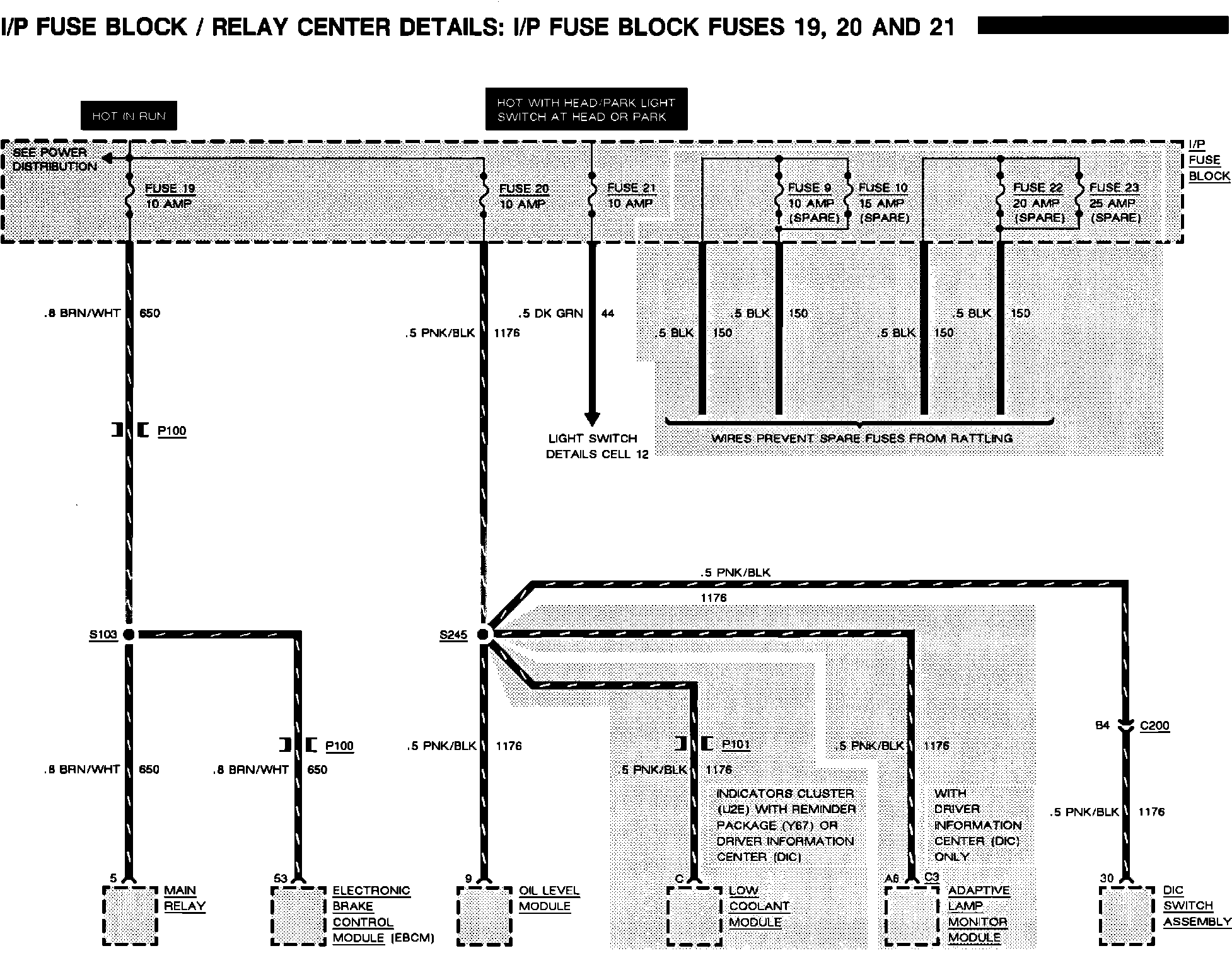

Ninety Eight I/P Fuse Block Fuses 19, 20 and 21
Ninety Eight Ground Distribution: G203

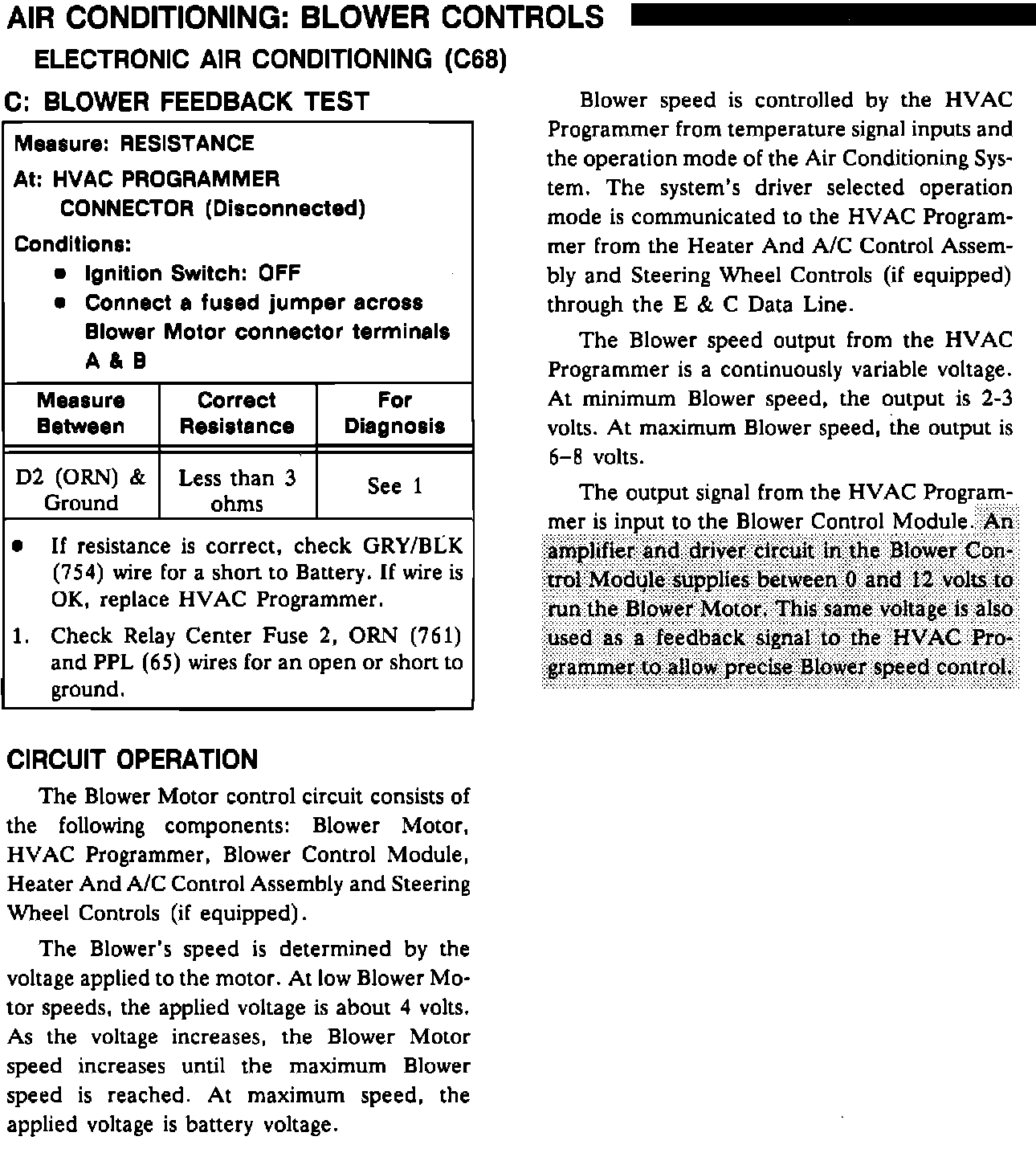

Ninety Eight Electronic Air Conditioning (C68)

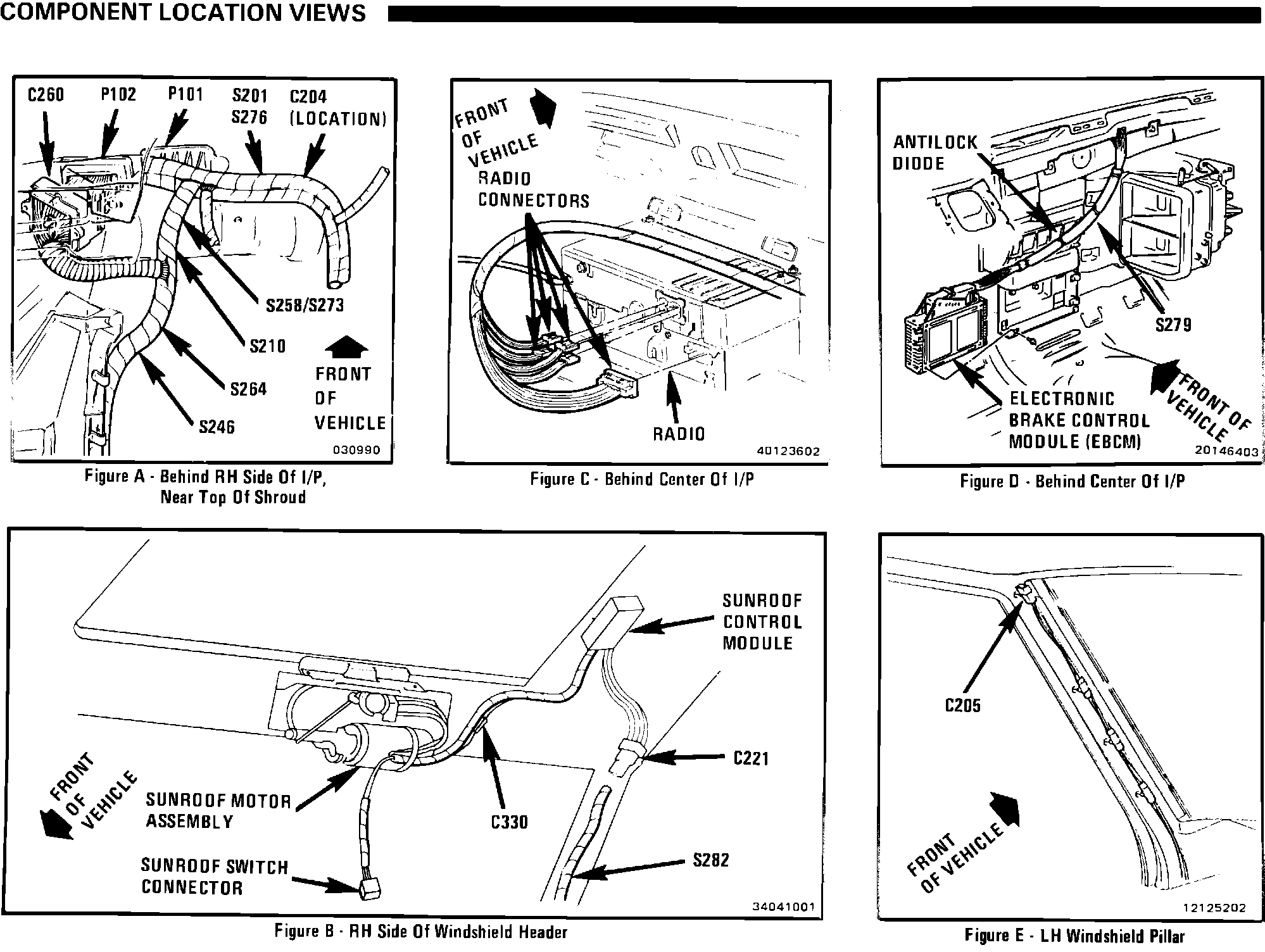

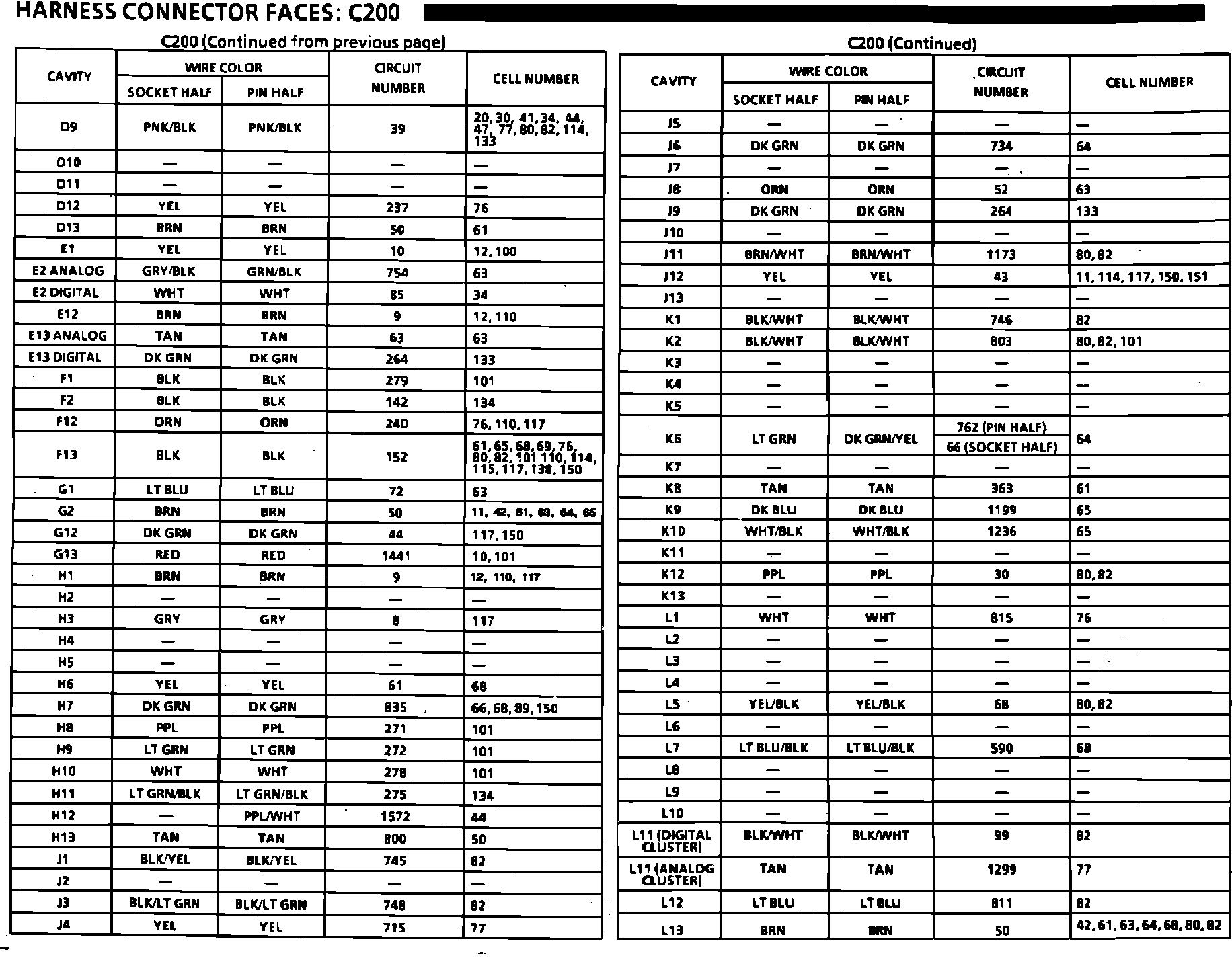

Ninety Eight Component Location Views
