SIR Diagnostic System Check

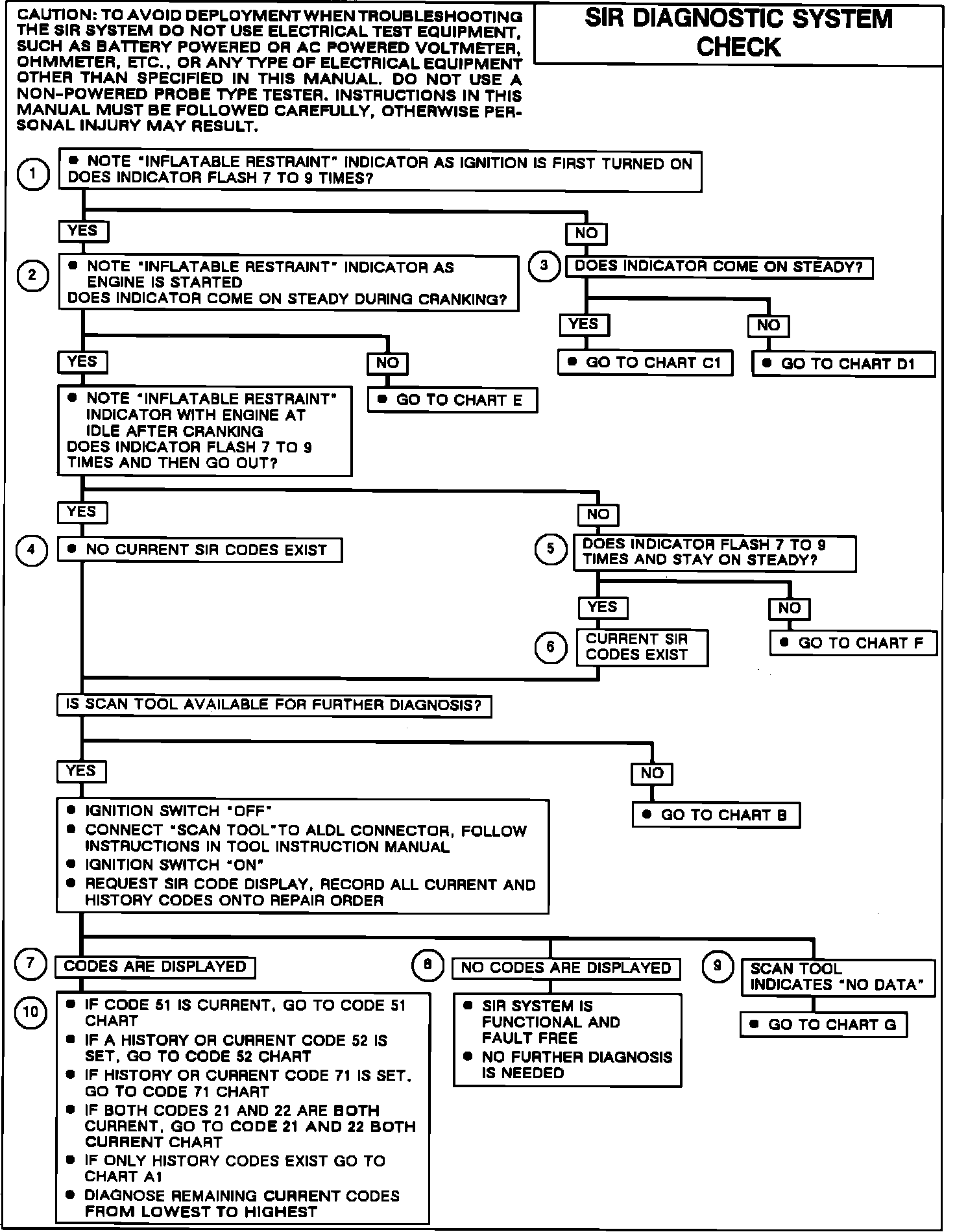

Fig. 632 SIR Diagnostic System Check (Part 1 of 2). w/Single Airbag:

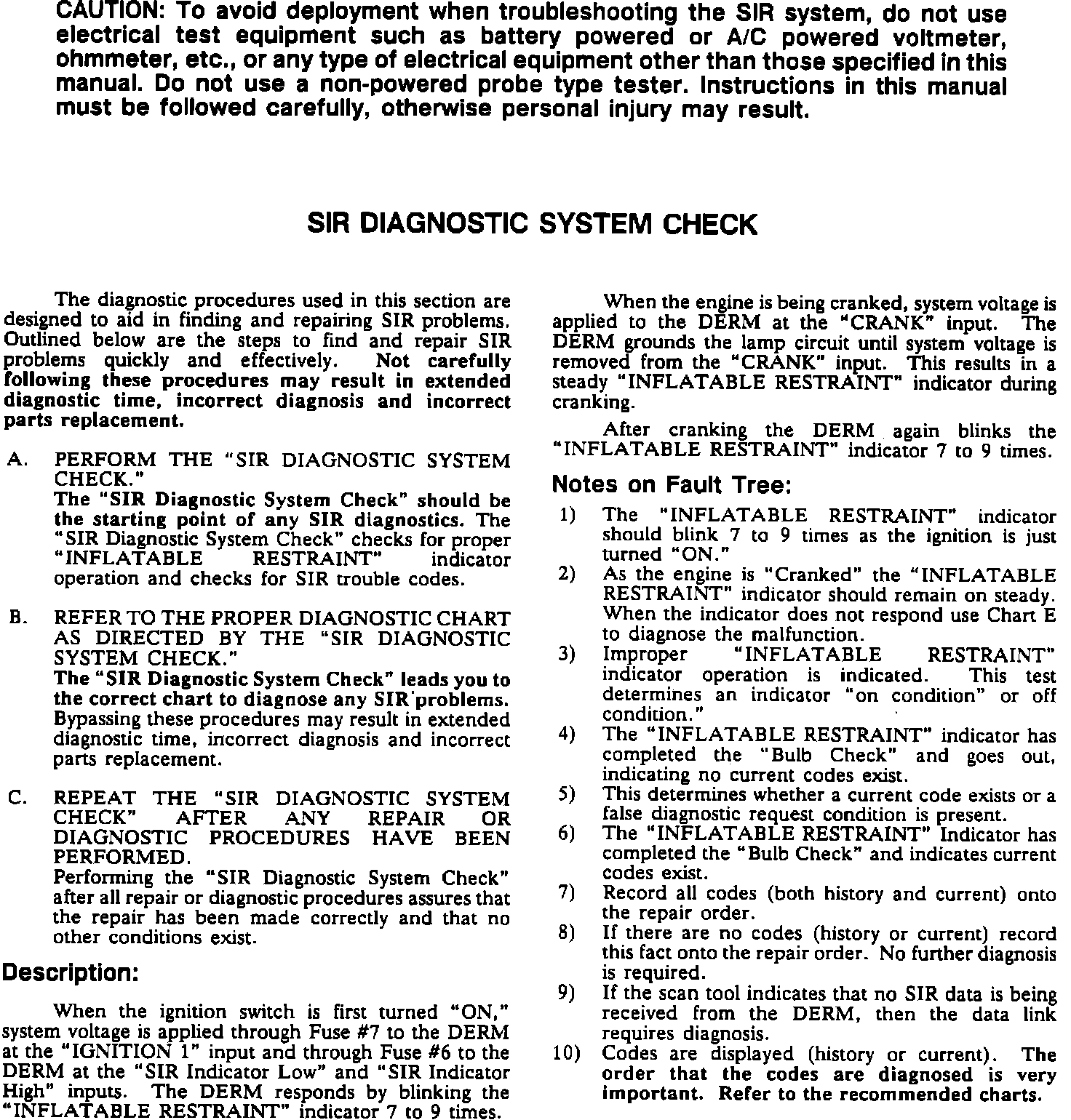

Fig. 632 SIR Diagnostic System Check (Part 2 of 2). w/Single Airbag:
