Chart B Flash Code Diagnosis

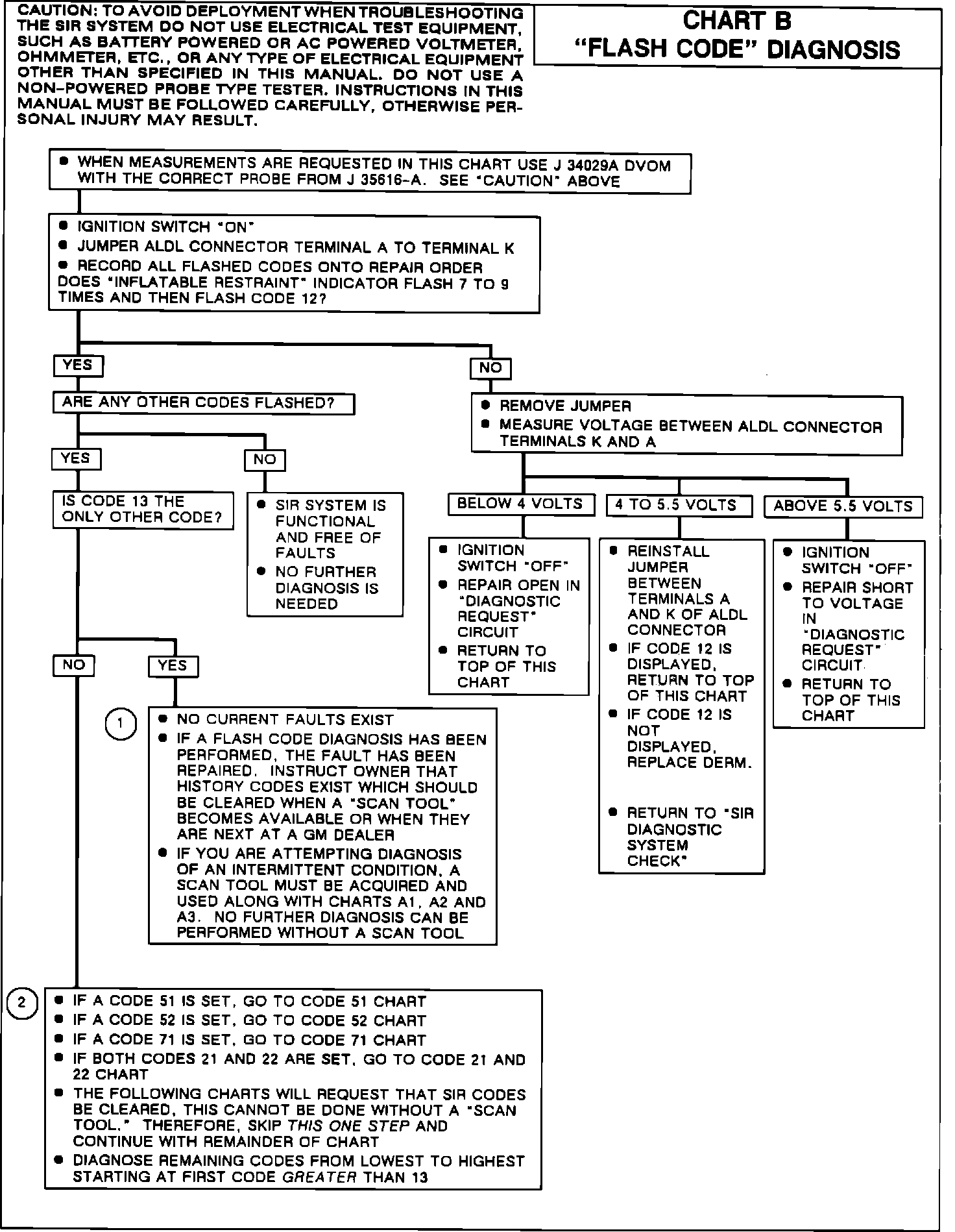

Fig. 636 Chart B, Flash Code Diagnosis (Part 1 of 2). w/Single Airbag:
Fig. 636 Chart B, Flash Code Diagnosis (Part 2 of 2). w/Single Airbag:
