Chart A-3

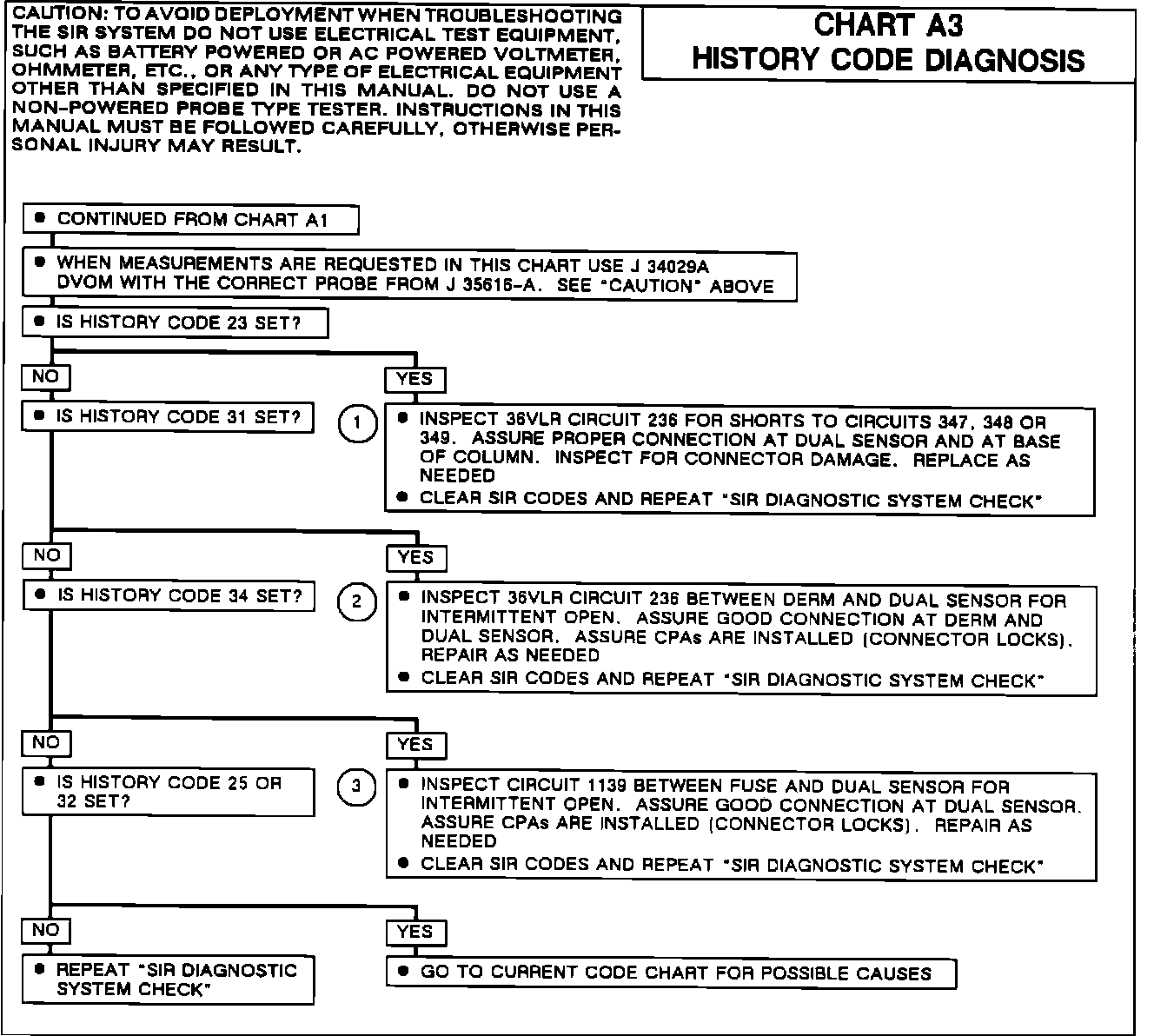

Fig. 635 Chart A3, History Code Diagnosis (Part 1 of 2). w/Single Airbag:
Fig. 635 Chart A3, History Code Diagnosis (Part 2 of 2). w/Single Airbag:
