Home >> Oldsmobile >> 1992 >> Ninety-Eight V6-3800 3.8L Supercharged >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Chart A-1

Chart A-1

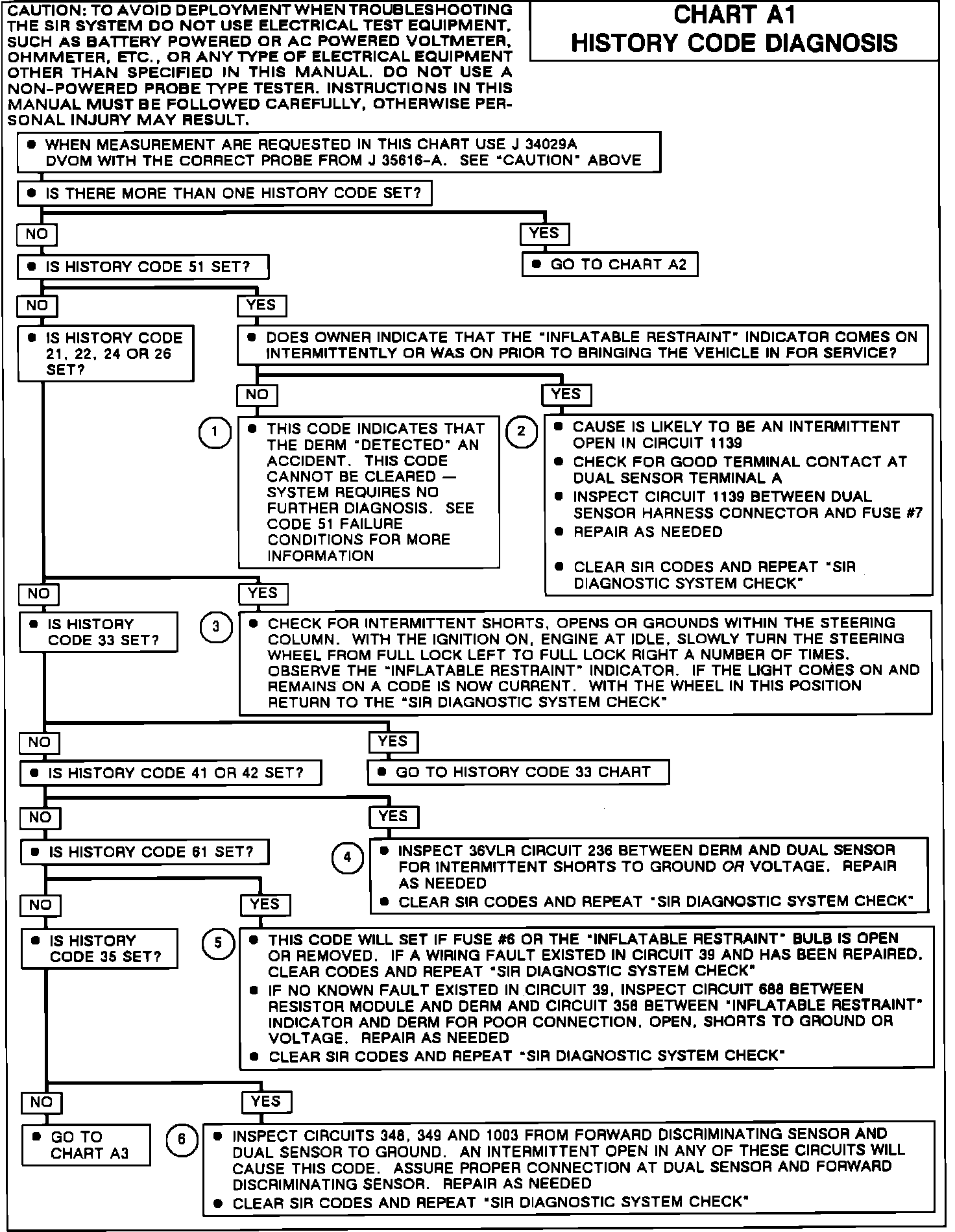

Fig. 633 Chart A1, History Code Diagnosis (Part 1 of 2):



Fig. 633 Chart A1, History Code Diagnosis (Part 2 of 2):
