Fuel Pump Relay: Locations
FUEL PUMP RELAYBehind RH Side Of I/P:

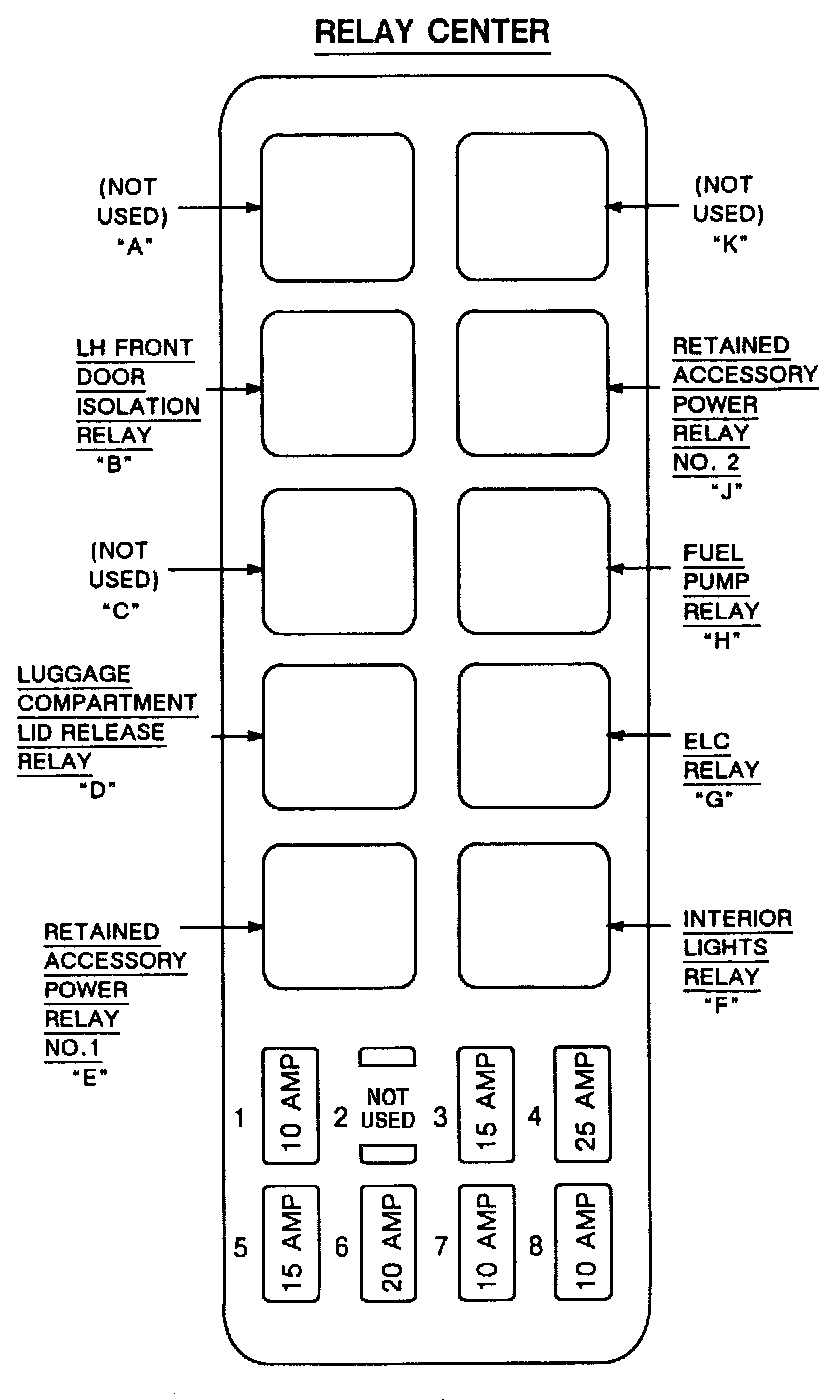

The Fuel Pump Relay is located in the Relay Center. The Relay Center is located behind RH side of Instrument Panel (I/P), top of RH shroud.
The Fuel Pump Relay is located in the Relay Center. The Relay Center is located behind RH side of Instrument Panel (I/P), top of RH shroud.
