Home
>>
Oldsmobile
>>
1992
>>
Ninety-Eight V6-3800 3.8L Supercharged
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Data Sensors & Vehicle Data Sensors
Engine Data Sensors & Vehicle Data Sensors

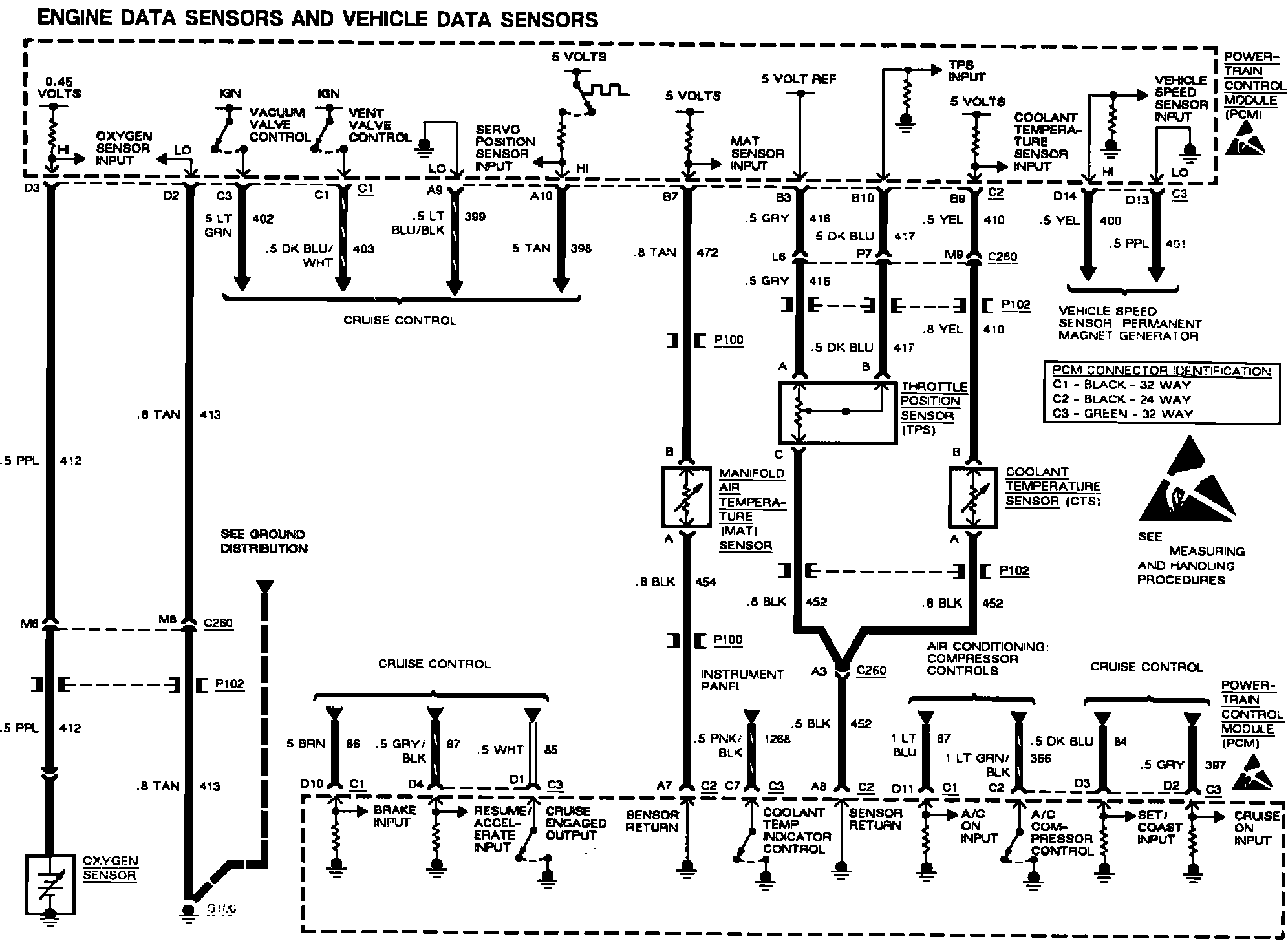

Sequential Fuel Injection (Engine Data Sensors & Vehicle Data Sensors):
