Ninety-Eight V6-3800 3.8L Supercharged
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>

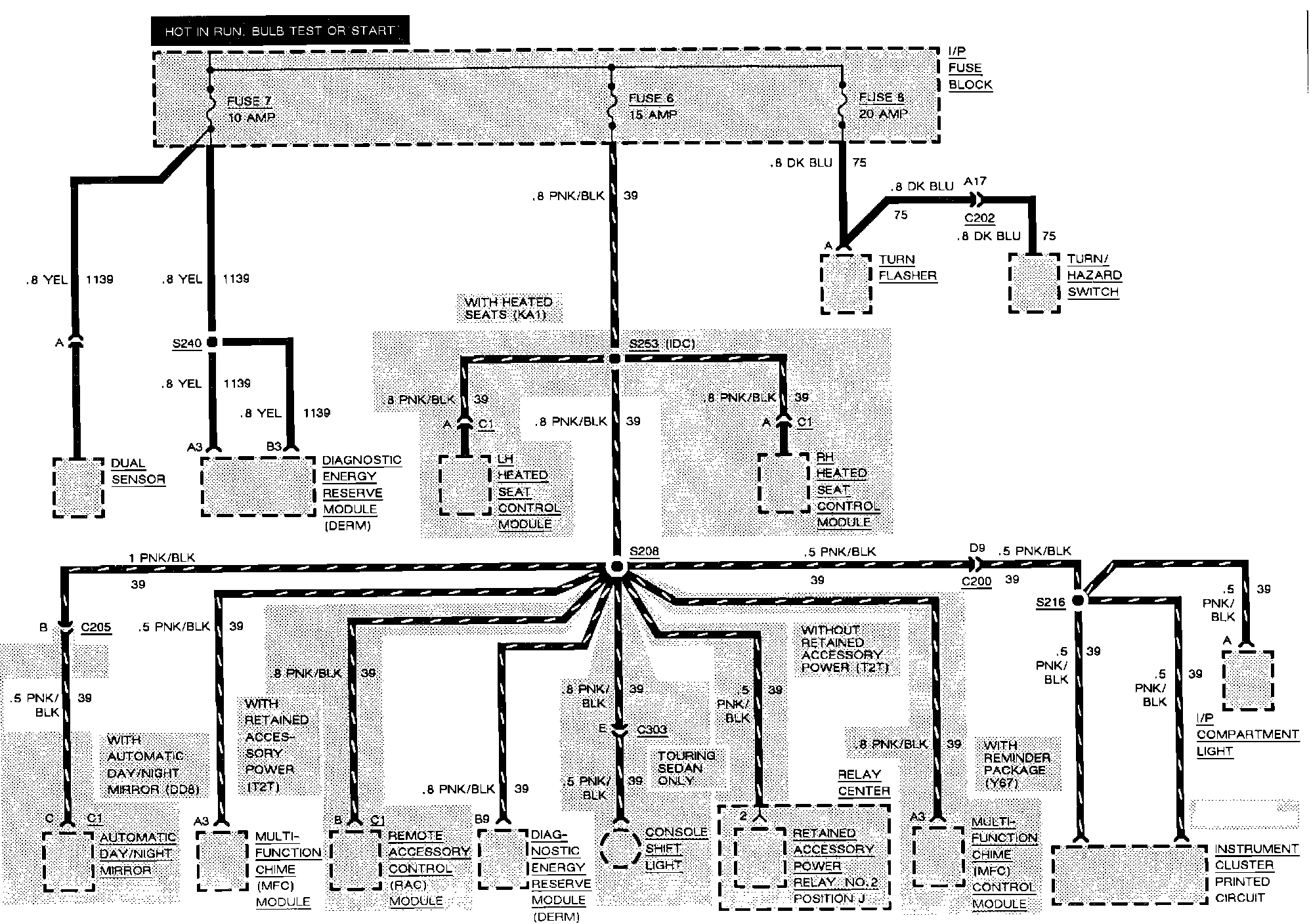

I/P Fuse Block: Fuses 6, 7, 8
I/P Fuse Block: Fuses 6, 7, 8
Fuse Block & Relay Center Details: Fuses 6, 7, 8:
