Oldsmobile
>>
1992
>>
Ninety-Eight V6-3800 3.8L Supercharged
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
I/P Fuse Block: Fuses 13, 14, 15, 16
I/P Fuse Block: Fuses 13, 14, 15, 16

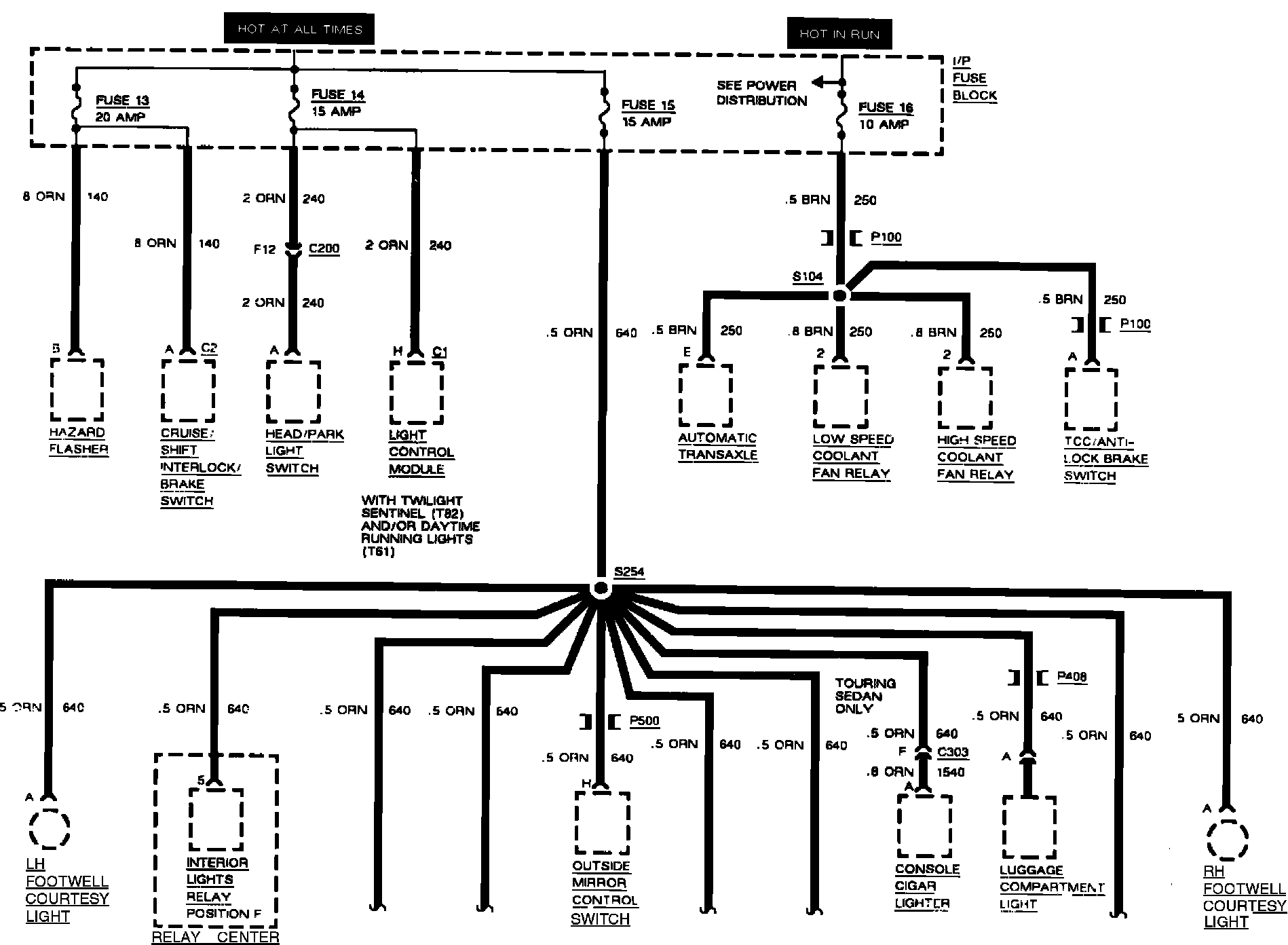

Fuse Block & Relay Center Details: Fuses 13, 14, 15, 16 (Part 1 of 2):

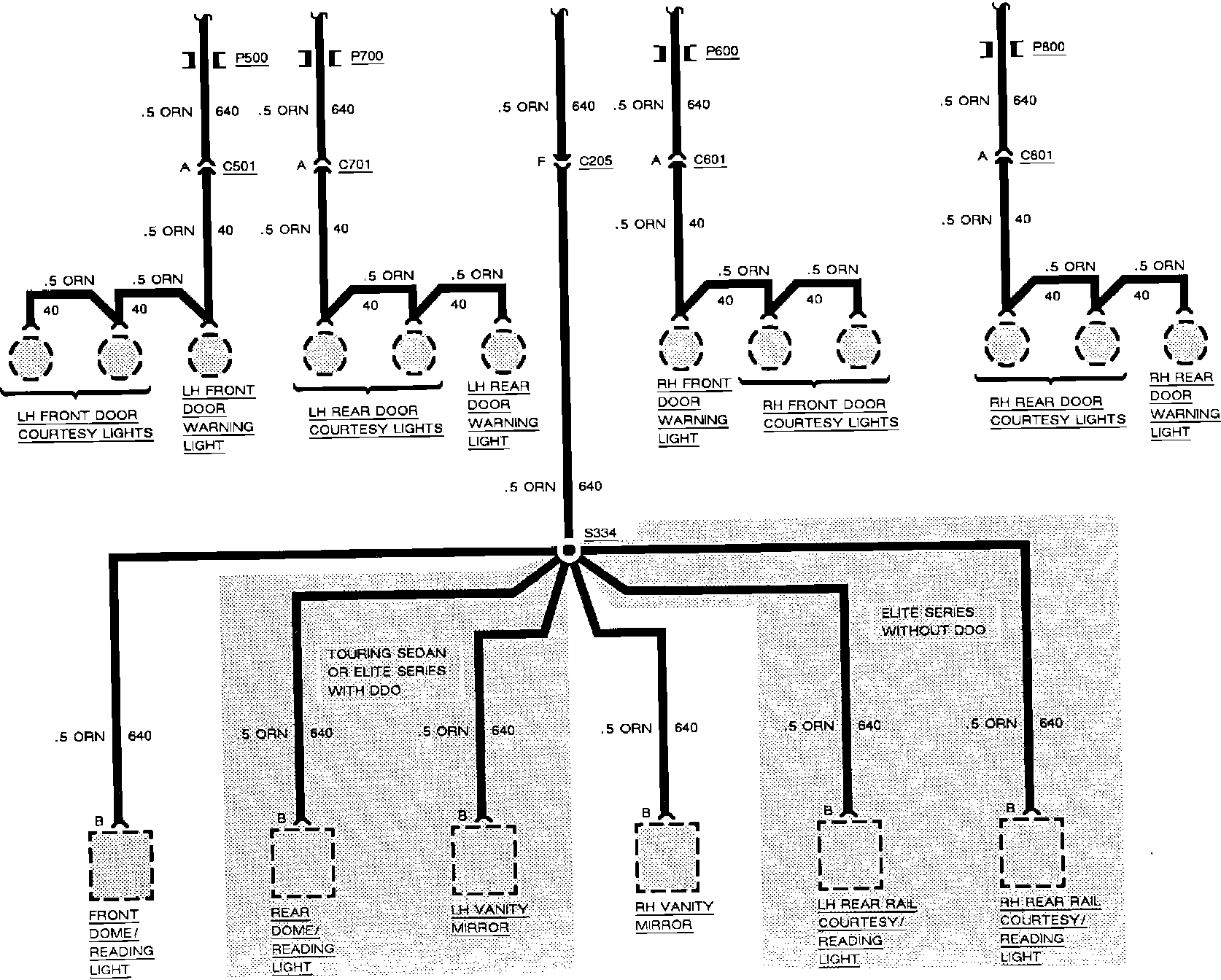

Fuse Block & Relay Center Details: Fuses 13, 14, 15, 16 (Part 2 of 2):
