Oldsmobile
>>
1992
>>
Ninety-Eight V6-3800 3.8L Supercharged
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
Clean Ground
Clean Ground

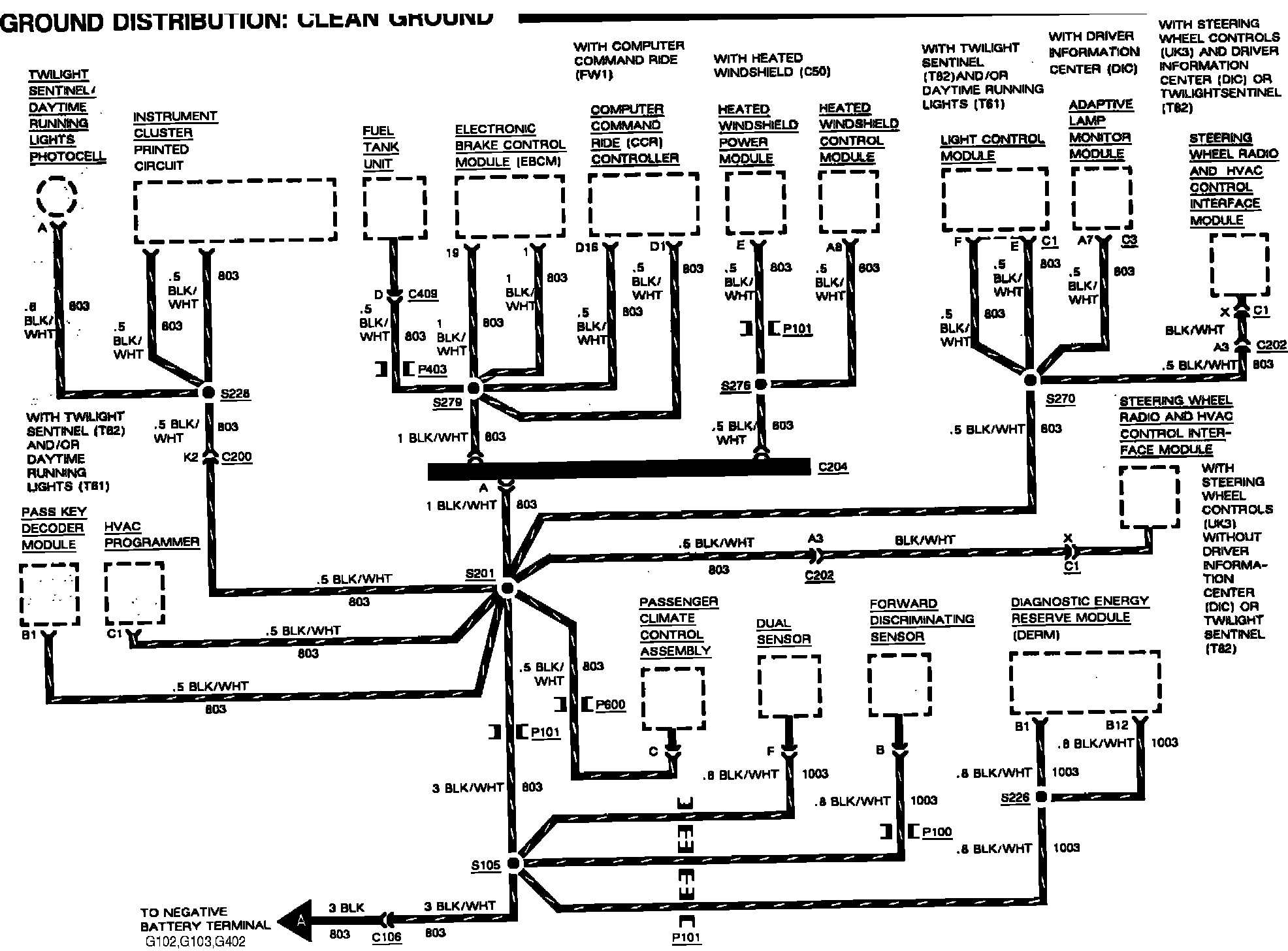

Ground Distribution: Clean Ground:
