S302

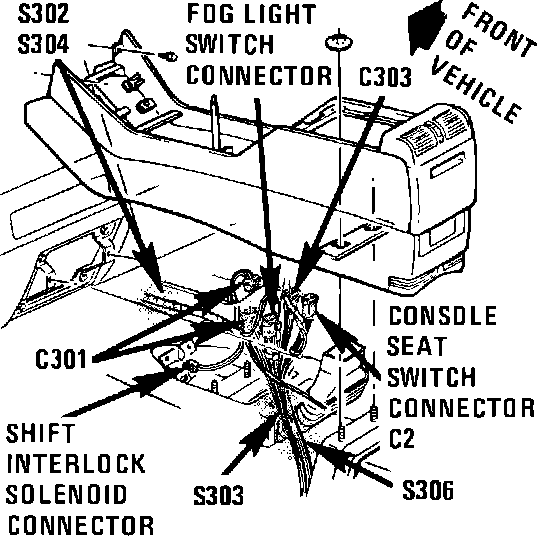

Component Location View. Below Center Console (Touring Sedan Only):

Composite harness, below center console
