Home >> Oldsmobile >> 1992 >> Ninety-Eight V6-3800 3.8L Supercharged >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> System Diagram >> Compact Disc Player (CD)

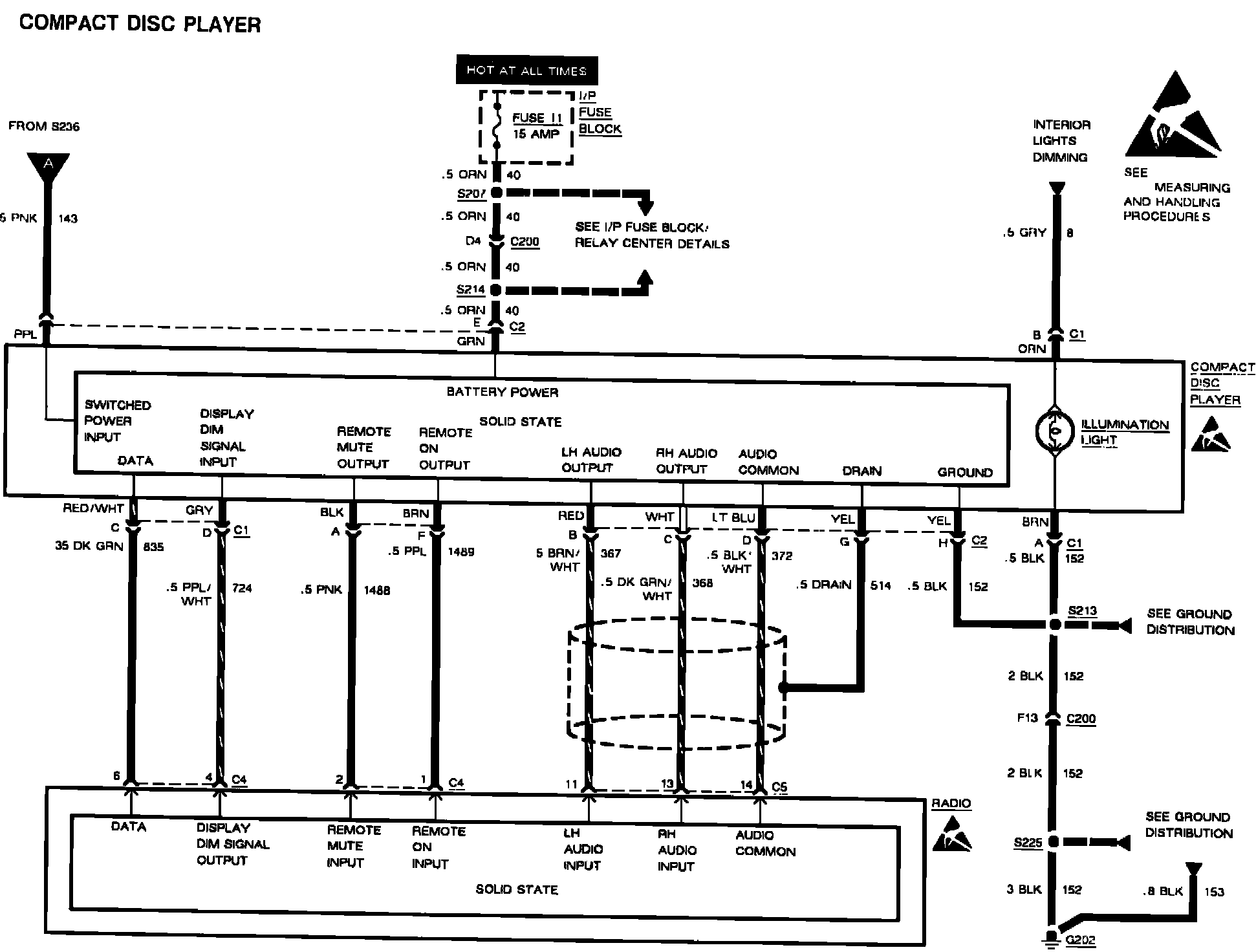

Compact Disc Player (CD)

Radio (Compact Disc Player):
