Oldsmobile
>>
1992
>>
Ninety-Eight V6-3800 3.8L Supercharged
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>

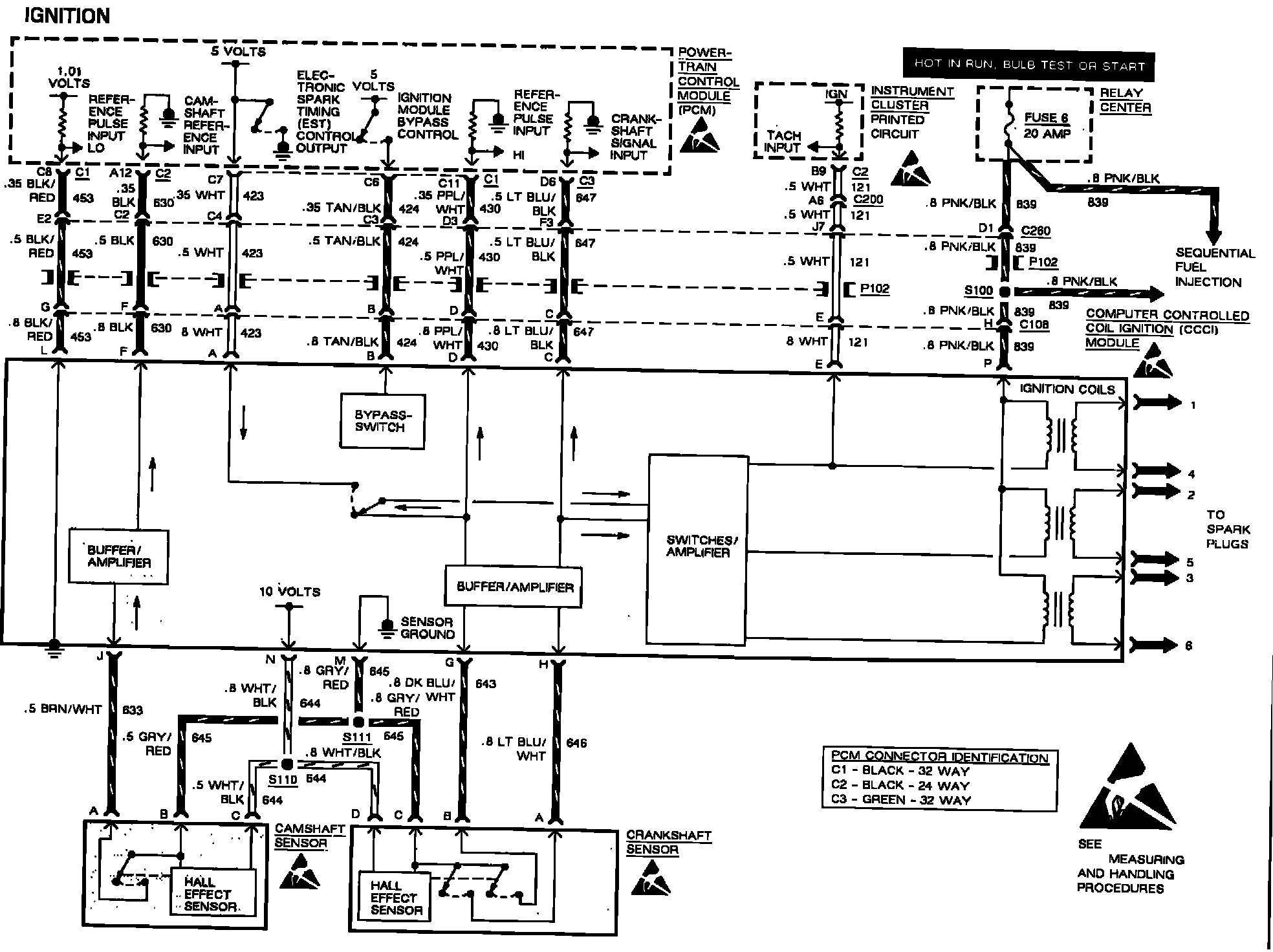

Ignition Controls
Ignition Controls
Sequential Fuel Injection (Ignition):
