Antitheft and Alarm Systems
>>
Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)

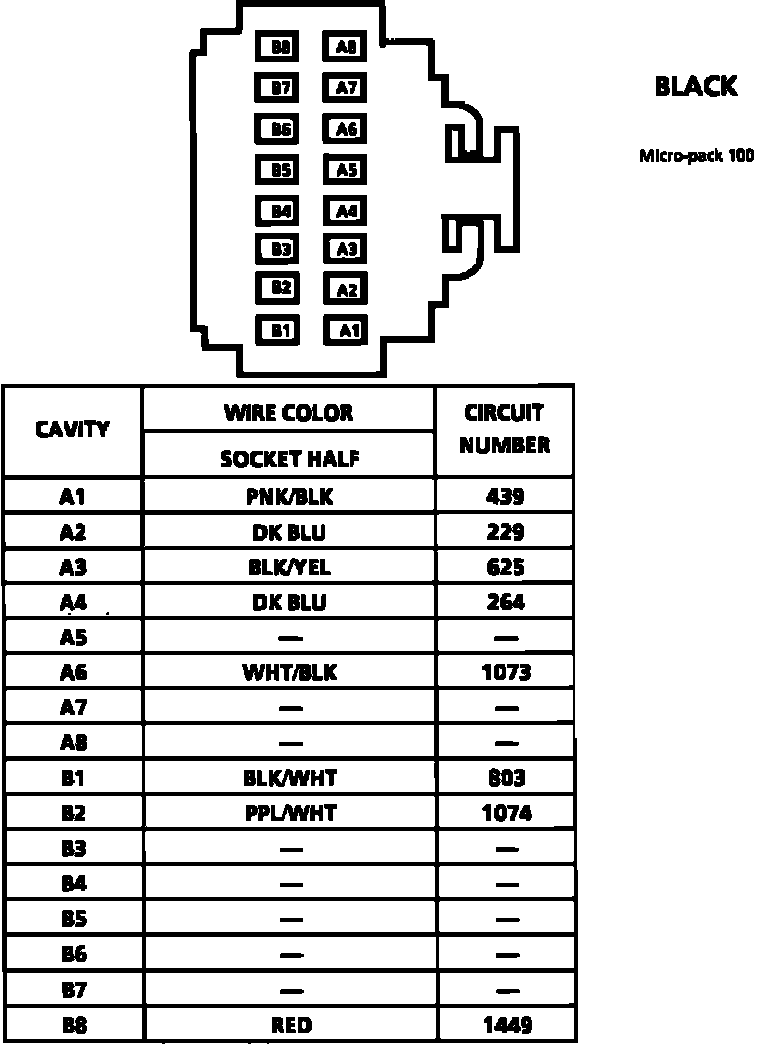

Passkey Decoder Module Connector Face:
