Ninety-Eight V6-3800 3.8L Supercharged
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Chart F

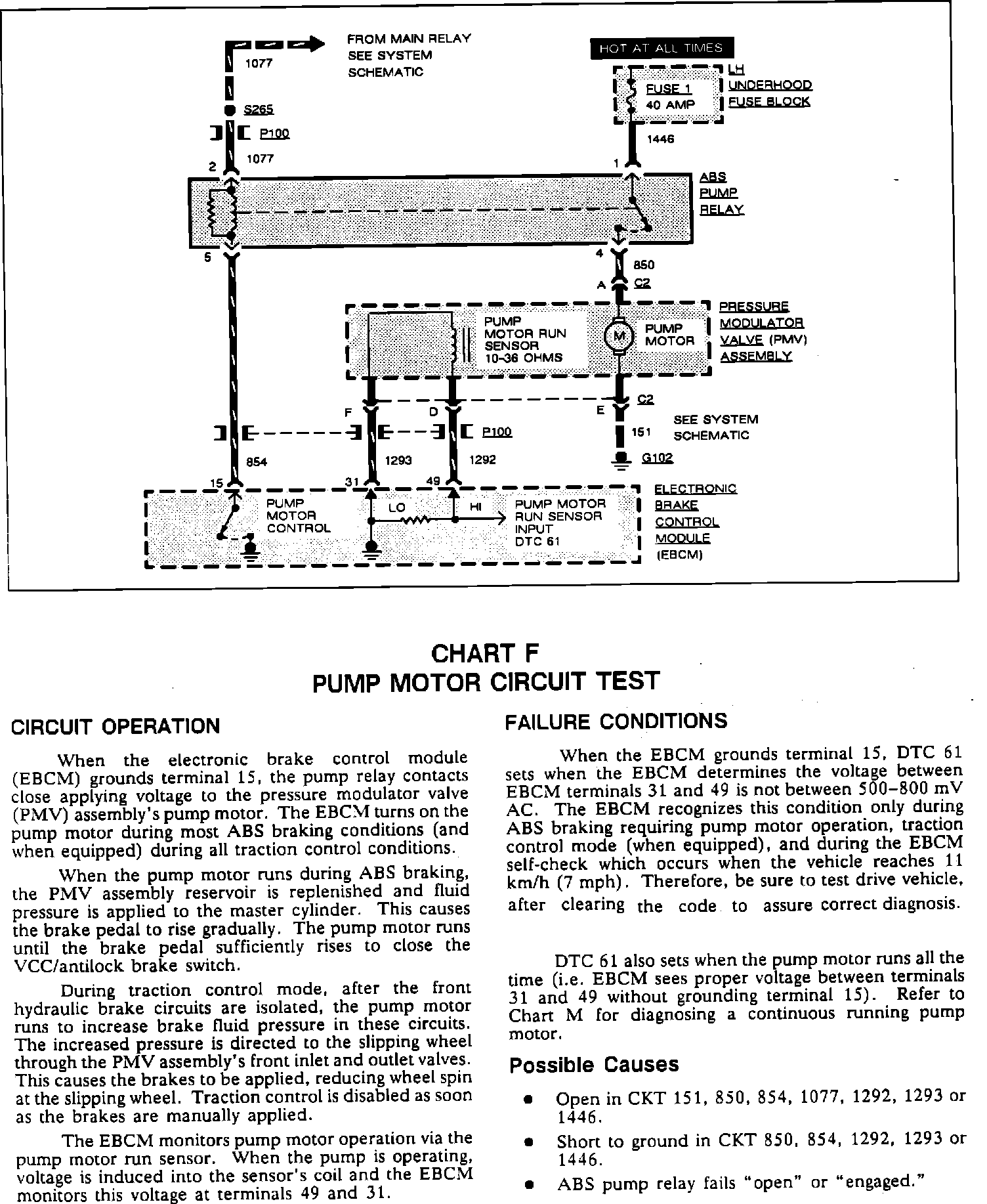

Chart F

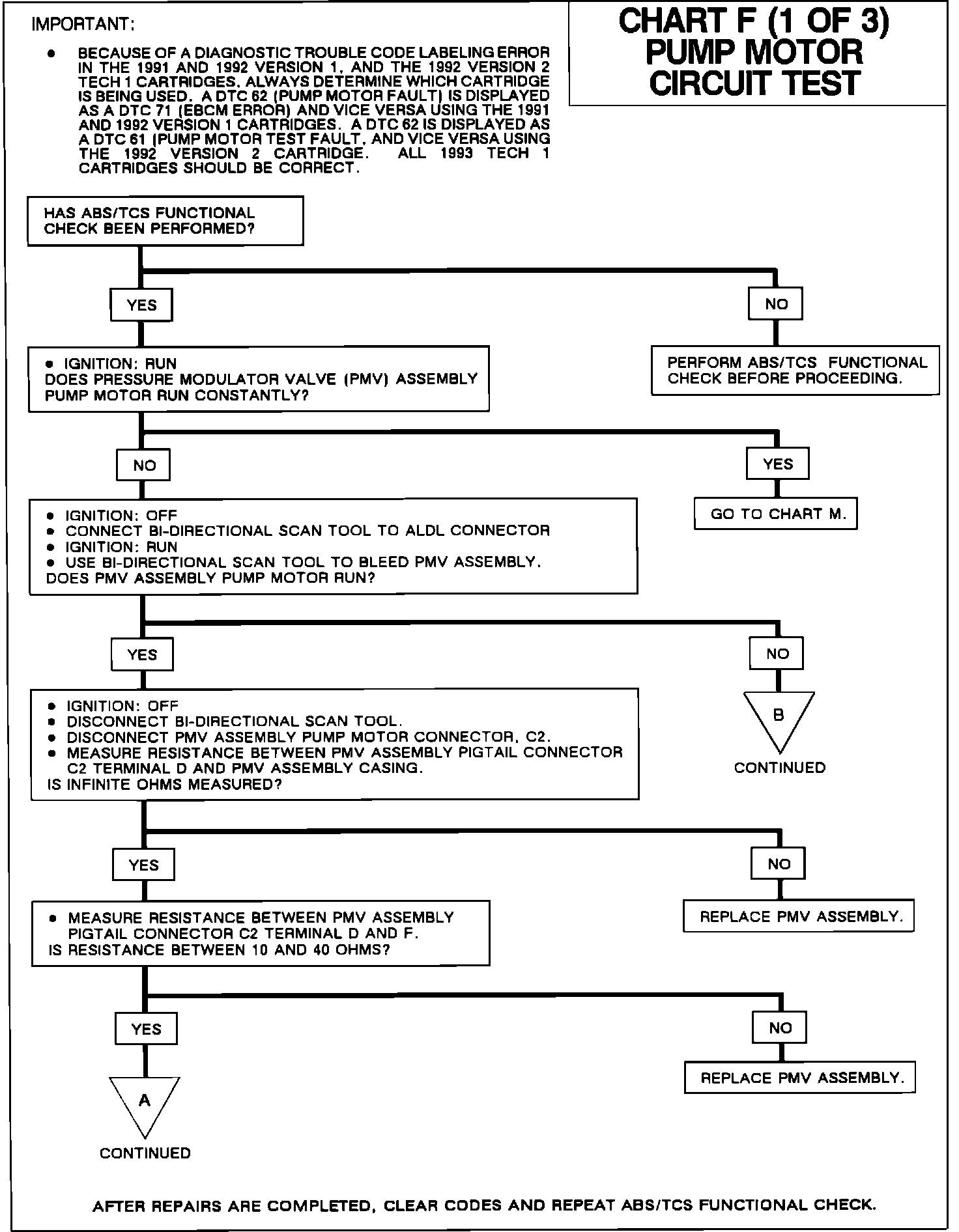

Chart F (Part 1 Of 4):

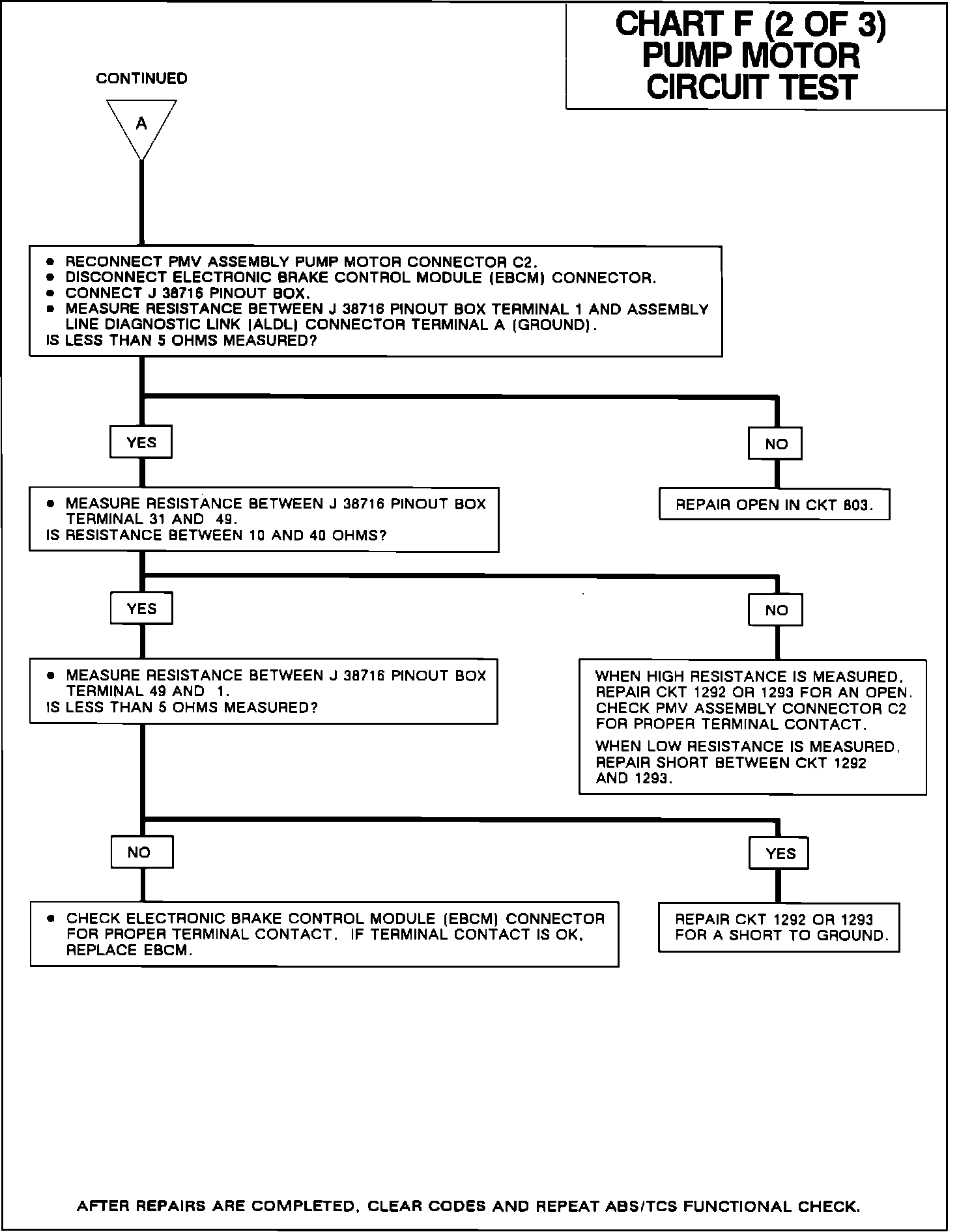

Chart F (Part 2 Of 4):

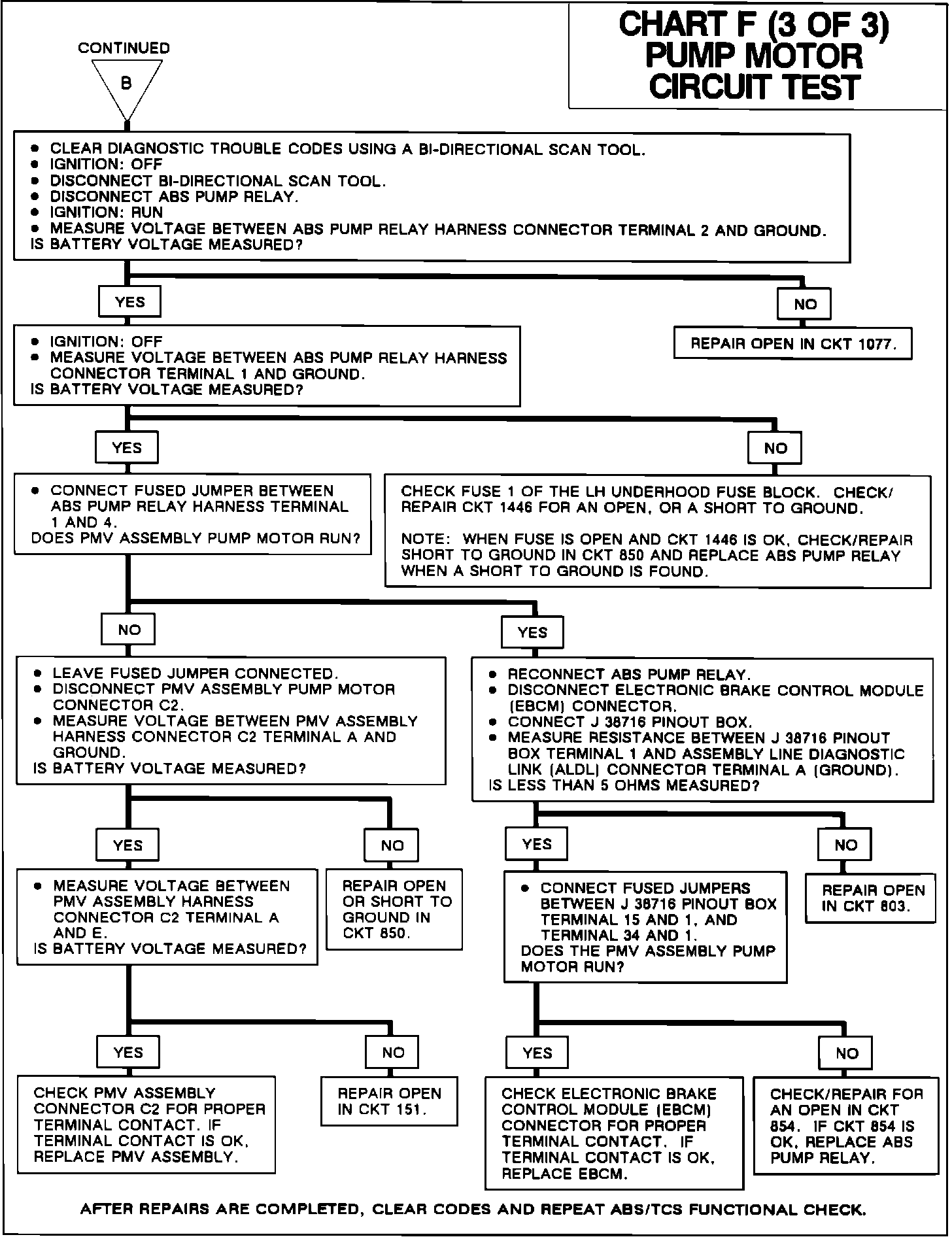

Chart F (Part 3 Of 4):
Chart F (Part 4 Of 4):
