Ninety-Eight V6-3800 3.8L Supercharged
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Chart D
Chart D
Chart D:

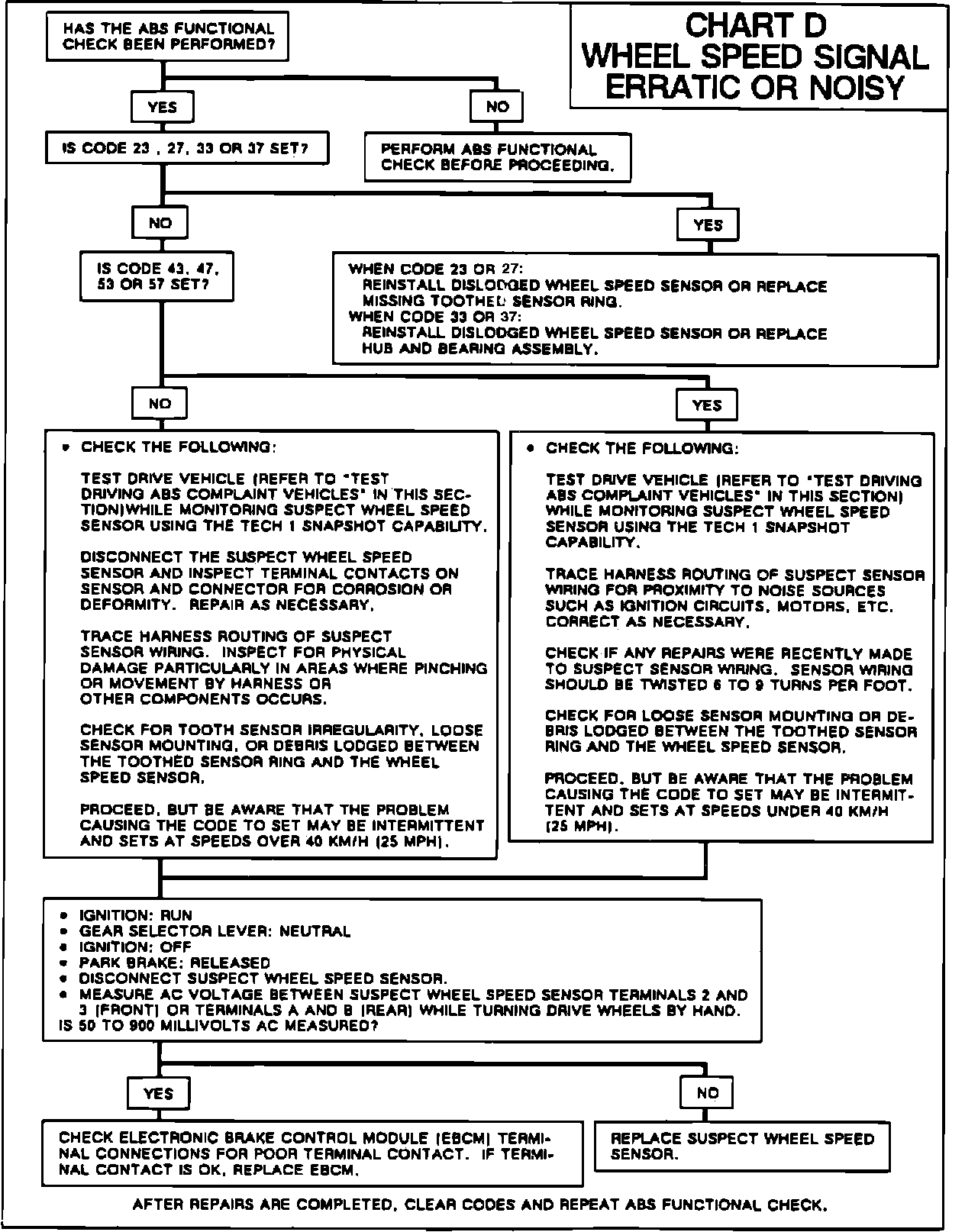

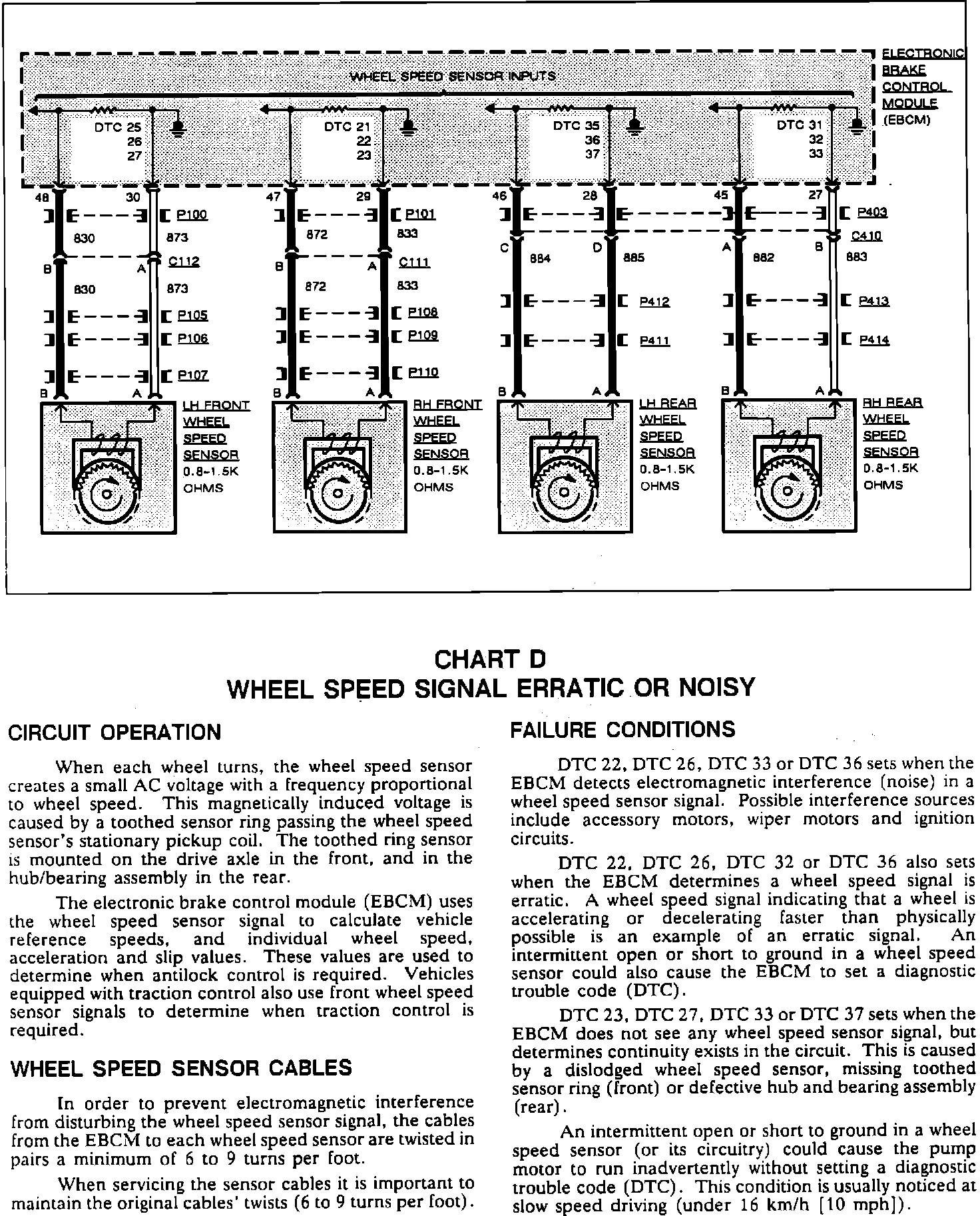

Fig. 33 Chart D.:
