Left Side

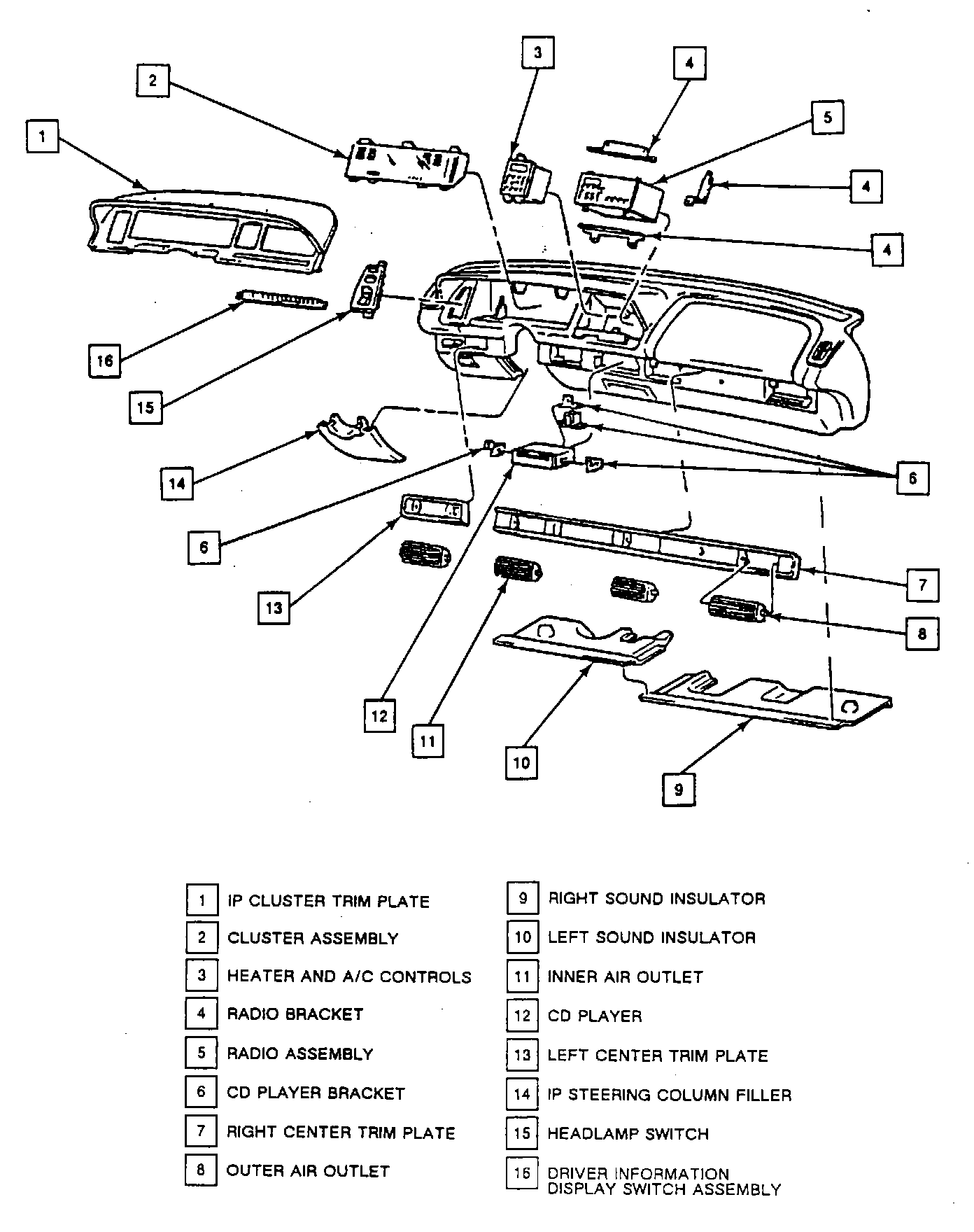

Sound Insulators:

Instrument Panel Front:

Remove or Disconnect

1. Right sound insulator.
2. Sound insulator to dash panel screws/nuts.
^ Pull sound insulator down and rearward.
3. Courtesy lamps (from both insulators).
4. Sound insulators.

Install or Connect

1. Courtesy lamps after positioning sound insulators.
2. Sound insulator to dash panel screws/nuts.

Tighten
^ Screws/nuts to 1.9 Nm (17 lb. in).

3. Right sound insulator.
