Alternator Cooling Duct

Generator Cooling Duct.:

REMOVE OR DISCONNECT
1. Raise vehicle and suitably support.
2. Right front tire and wheel.
3. Right engine splash shield.
4. Exhaust converter assembly completely.
5. Steering gear heat shield through right front wheel opening.

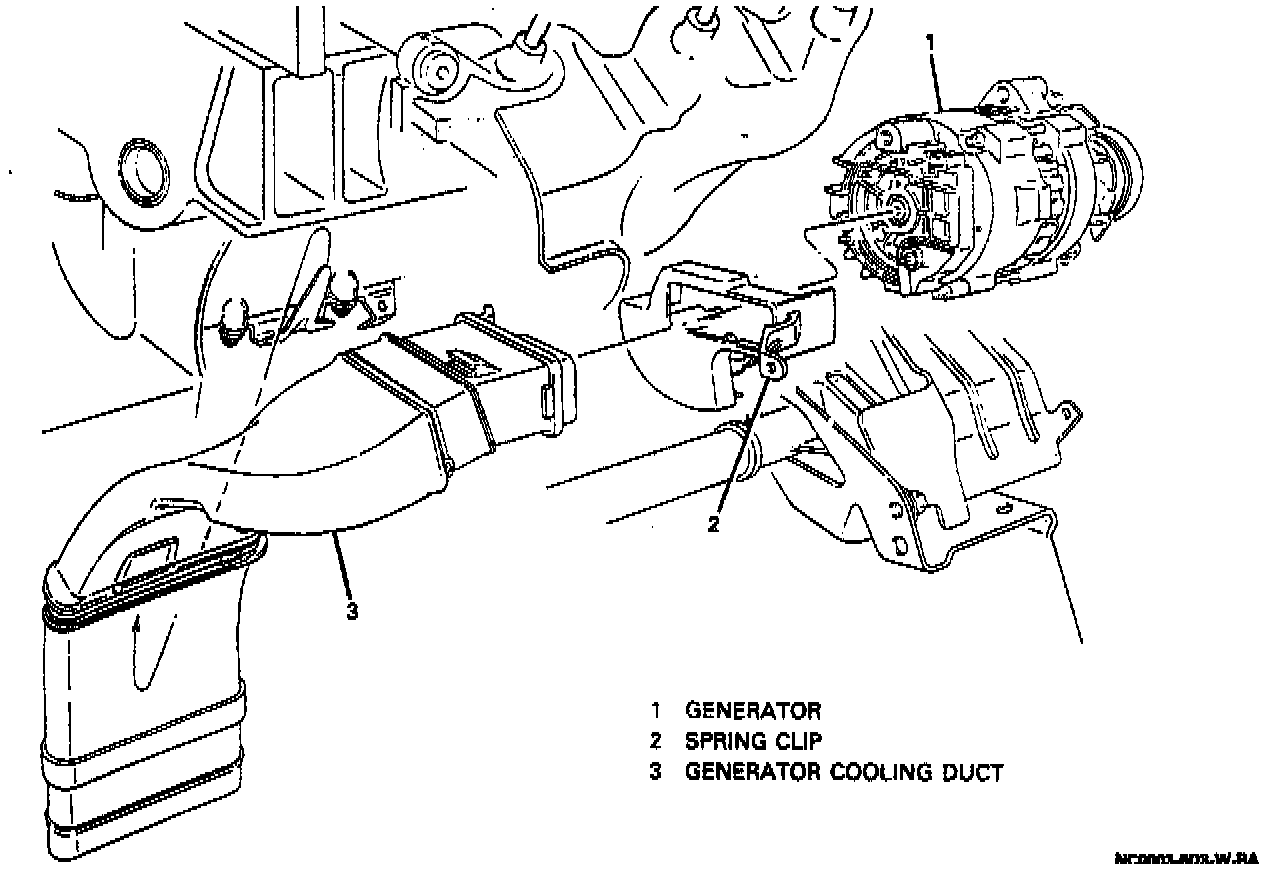

6. Spring clip and generator cooling duct.


INSTALL OR CONNECT
1. Generator cooling duct.
2. Spring clip to rear of generator and connect duct to retaining bracket at oil pan.
3. Steering gear heat shield through right front wheel opening.
4. Exhaust converter assembly.
5. Right engine splash shield.
6. Right front tire and wheel.
7. Lower vehicle.
