System Check - Air Delivery & Temperature Controls

Symptom Chart:

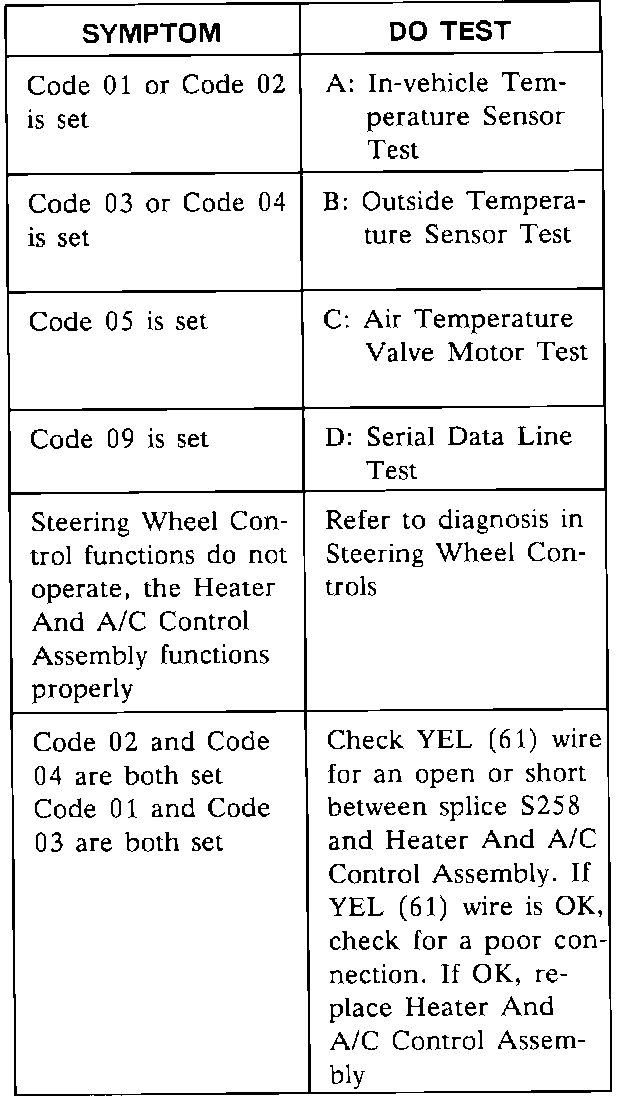

Symptom Table 1 of 2

Symptom Chart:

Symptom Table 2 of 2


^ Do the Diagnostic Test(s) listed next to your symptom in the Symptom Table.
^ Code Symptoms must be diagnosed first. Refer to On-Board Diagnostic Mode. With Electronic A/C
