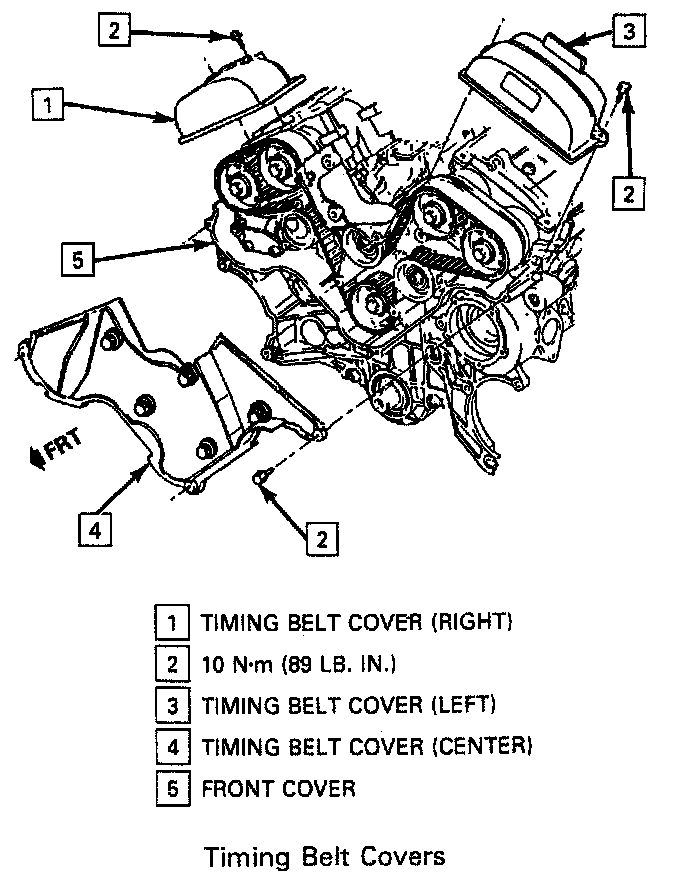

Secondary Timing Belt Cover

SECONDARY TIMING BELT COVER






RIGHT

REMOVE OR DISCONNECT
1. Retaining bolts.
2. Cover.

INSTALL OR CONNECT
1. Cover.
2. Retaining bolts.

TIGHTEN
- Bolts to 10 Nm (89 lb. in.).

LEFT

REMOVE OR DISCONNECT
1. Spark plug wire cover.
2. Retaining bolts.
3. Cover.

INSTALL OR CONNECT
1. Cover.
2. Retaining bolts.

TIGHTEN
- Bolts to 10 Nm (89 lb. in.).

3. Spark plug wire cover.
