Lights - Moisture In Tail Lamp Assembly

9234oldsmobile01

NUMBER: 92-T-13A

CORP.REF.NO: 131062R

DATE: July 1992

SECTKM: 8B, 10-8


SUBJECT:
MOISTURE IN TAIL LAMPS - REMOVE
LAMP/FOLLOW SERVICE PROC/ADD
VENT HOLES TO LAMP ASSEMBLY

MODELS/YEARS:
1992 OLDSMOBILE CUTLASS SUPREME SEDAN


This bulletin cancels and supersedes Dealer Technical Bulletin 92-T-13 which should be discarded.

CONDITION:
Moisture in tail lamp upper cavity.

CAUSE:
A. Vehicles built prior to VIN ND304854 were water tested in plant exposing the lamp upper cavity vent holes to direct water spray.

B. Vehicles built since VIN ND304854 do not have vent holes in the tail lamp upper cavity.

CORRECTION:





A. Remove affected lamp from vehicle and remove moisture.

B. Remove affected lamp from vehicle, remove moisture and add vent holes.

Notice:
Steps 1, 2 and 4 apply to correction of both A and B, Step 3 only applies to correction of B.

1. Hold the lamp with the bulb socket holes facing downward (lens facing upward) and shake the lamp to eliminate as much water as possible.

Important:
The following step involves using a heat gun to dry the lamp. The plastic parts of the lamp may deform if the heat gun is too hot or applied for too long. To avoid deforming the lamp, use the heat gun for a short amount of time and then allow the lamp surface to cool slightly before applying the heat gun again. To prevent deformation, the lamp should NEVER be too hot to touch.

2. Using heat gun on a low setting, alternate the following steps until the remaining moisture in the lamp has cleared:

a. Force warm air through one of the upper cavity bulb holes.

b. Use the heat gun on the outer surface of the red lens to warm the lens.

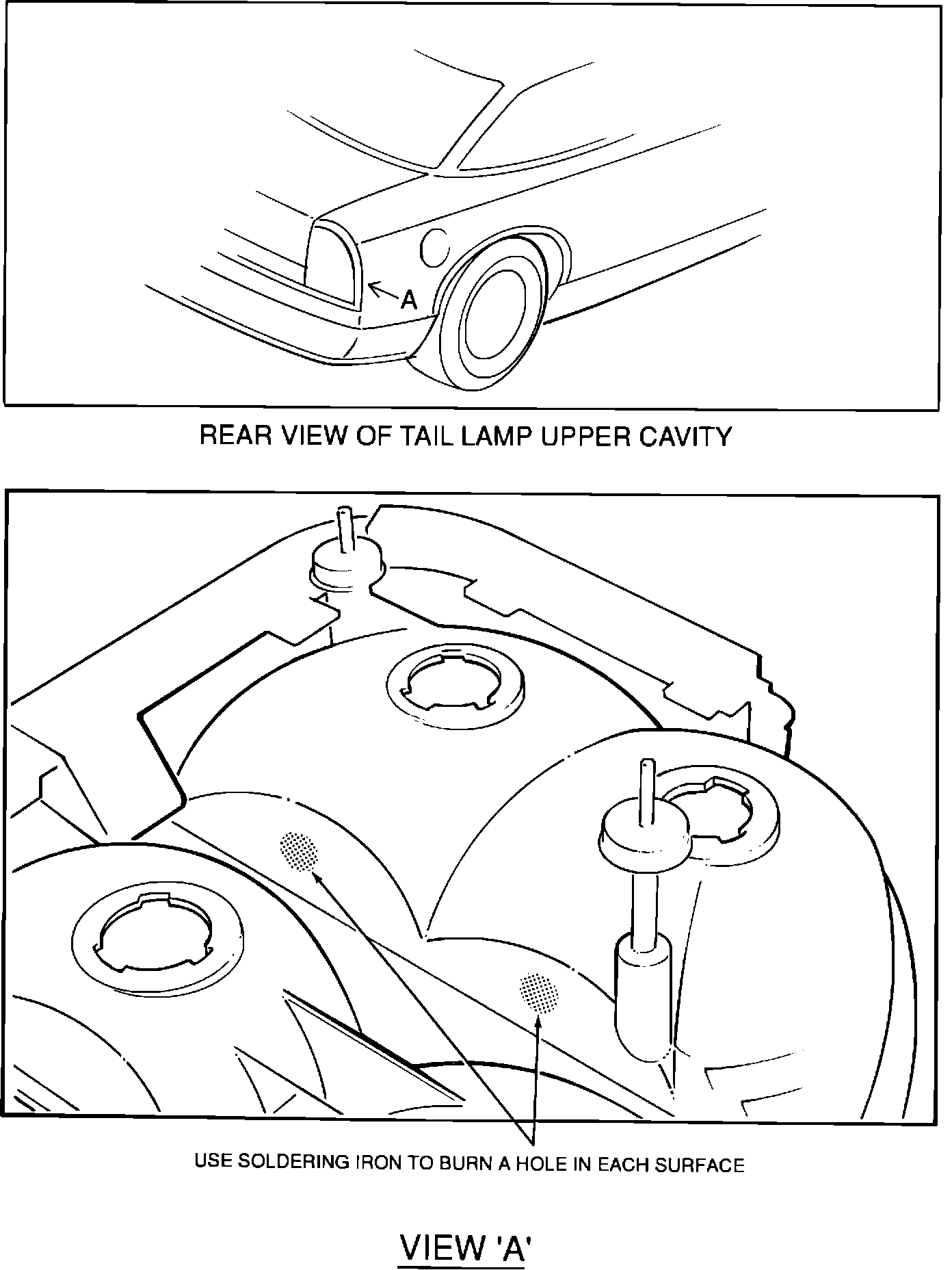

3. To add vent holes refer to View A. Use a soldering iron to burn a 4.0 mm (3/16") hole in each surface of the upper cavity. Check for any debris in tail lamp.

4. Re-install tail lamp.
