Doors (Front/Rear) - Bind When Opening

9217oldsmobile01

NUMBER: 92-T-41

CORP.REF.NO: 231008

DATE: February 1992

SECTION: 10


SUBJECT:
FRONT/REAR DOORS BIND WHEN OPENING
- SERVICE PROCEDURE


MODELS/YEARS:
1990-92 CUTLASS SUPREME





CAUSE: The condition may be caused by interference of the door upper frame to the auxiliary seal strip along the roof.

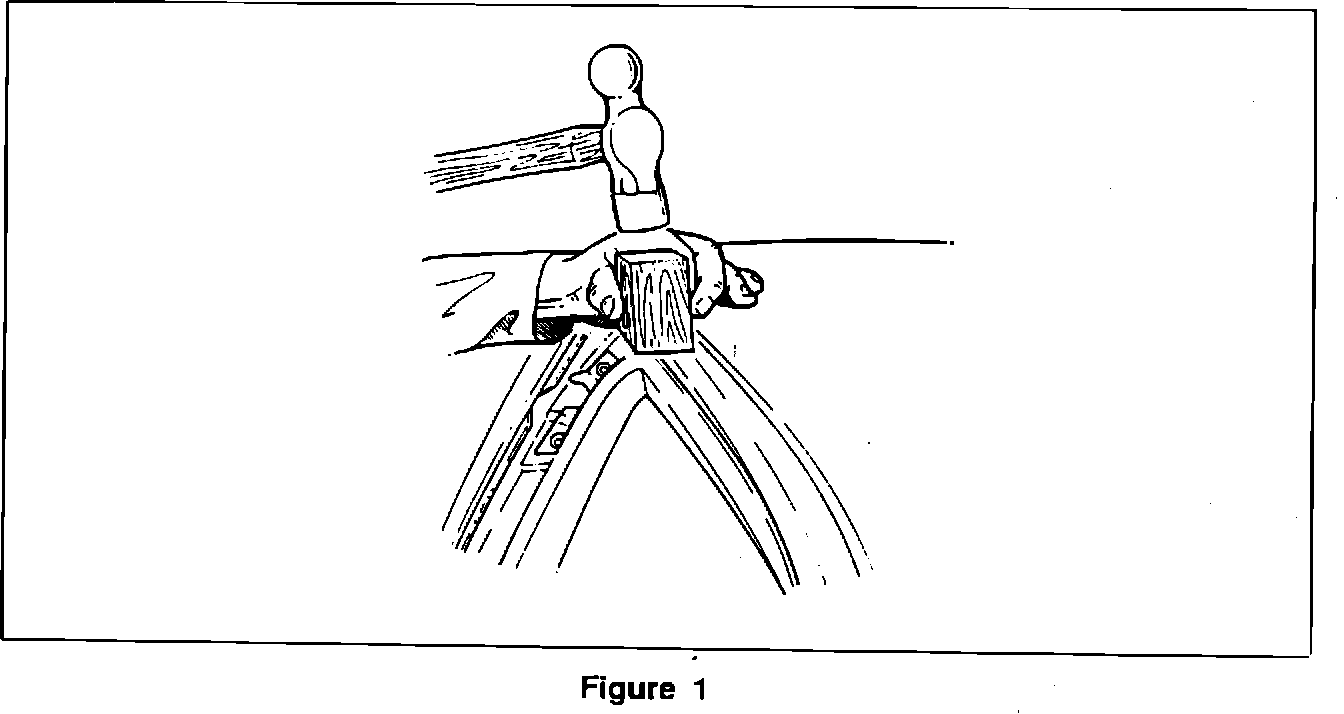

CORRECTION: This condition may be addressed by using a hammer and a block of wood, bend the auxiliary seal strip mounting flange slightly downward to relieve the interference in affected area but, not create a gap for wind noise. It is not necessary to remove the seal strip from the flange for this repair. Refer to the illustration.

WARRANTY INFORMATION:
Labor Operation Number:
T-1500 Right Side
T-1501 Left Side
Labor Time:
0.3 Hours
Trouble Code:
92
