Locks - New Door Lock Cylinder Rod Installation

9218oldsmobile02

NUMBER: 92-U-10

CORP.REF.NO: 131058

DATE: November 1991

SECTION: 10-6


SUBJECT:
DOOR LOCK CYUNDER ROD INSTALLATION
- NEW ILLUSTRATIONS


MODELS/YEARS:
1992 CUTLASS SUPREME SEDAN

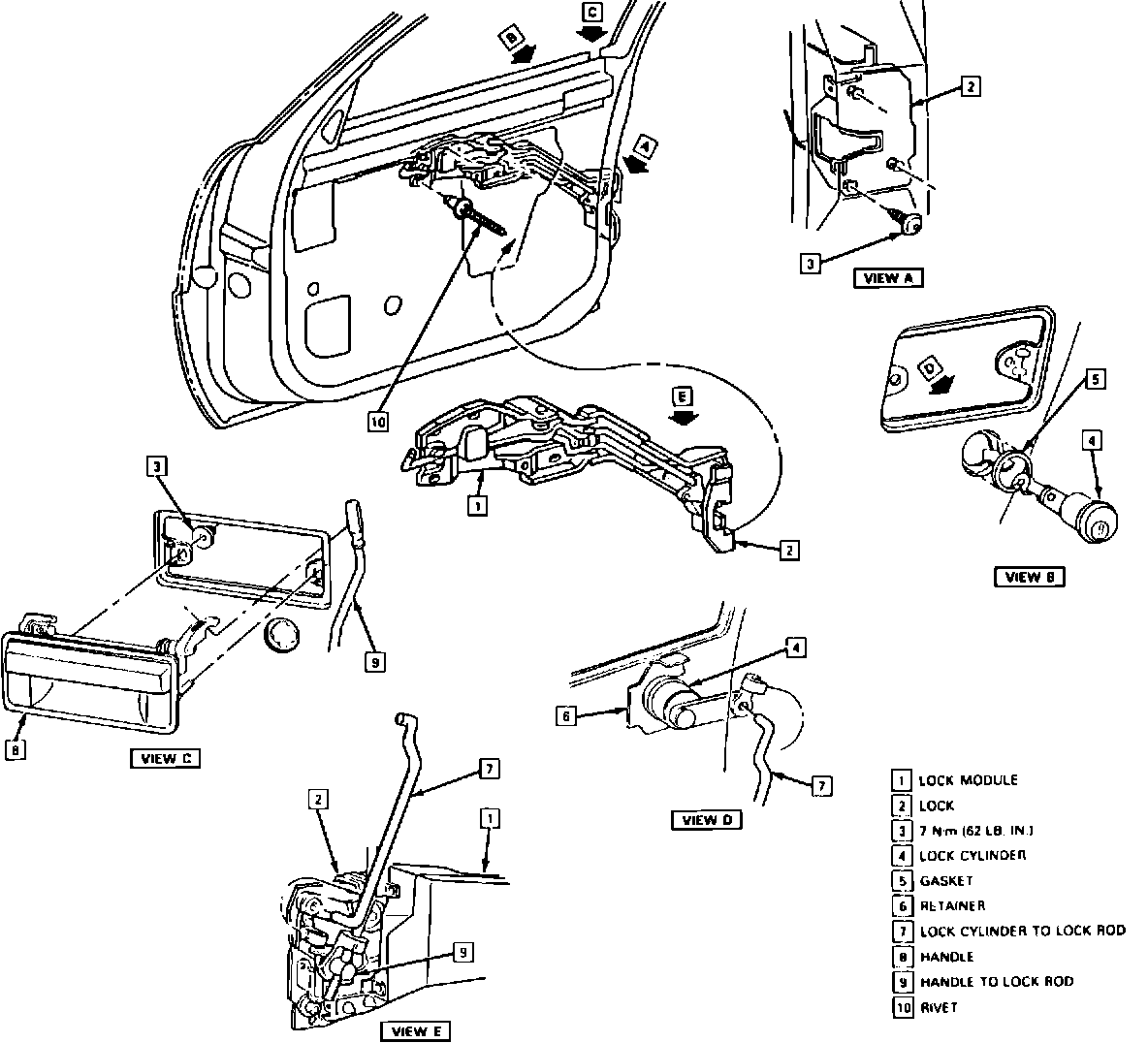

The door lock cylinder rod illustrations have been revised for the 1992 Cutlass Supreme Sedan. Please reference the following illustration when removing or installing the door lock cylinder rod on these vehicles. incorrect installation of the rod will result in a failure to open car door.

The illustration replaces illustration page 10-6-35 of the 1992 Cutlas Supreme Service Manual.
